3 AGB Series air/gas vertical separator housings

3 AGB Series air/gas vertical separator housings
2Pages

Catalog excerpts

3 AGB Series air/gas vertical separator housings - 1

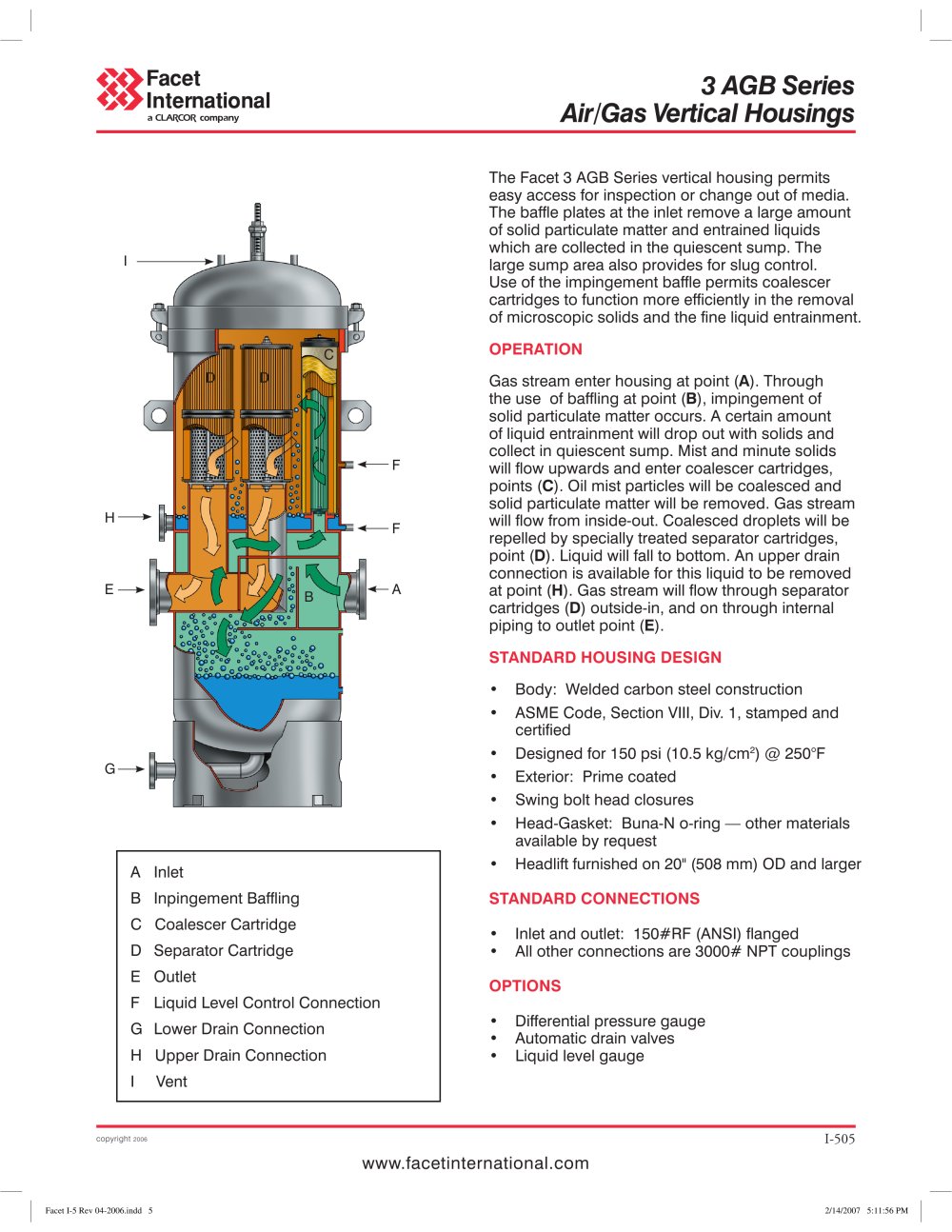

copyright 2006 www.facetinternational.com 3 AGB Series Air/Gas Vertical Housings The Facet 3 AGB Series vertical housing permits easy access for inspection or change out of media. The baffle plates at the inlet remove a large amount of solid particulate matter and entrained liquids which are collected in the quiescent sump. The large sump area also provides for slug control. Use of the impingement baffle permits coalescer cartridges to function more efficiently in the removal of microscopic solids and the fine liquid entrainment. OPERATION Gas stream enter housing at point (A). Through the use of baffling at point (B), impingement of solid particulate matter occurs. A certain amount of liquid entrainment will drop out with solids and collect in quiescent sump. Mist and minute solids will flow upwards and enter coalescer cartridges, points (C). Oil mist particles will be coalesced and solid particulate matter will be removed. Gas stream will flow from inside-out. Coalesced droplets will be repelled by specially treated separator cartridges, point (D). Liquid will fall to bottom. An upper drain connection is available for this liquid to be removed at point (H). Gas stream will flow through separator cartridges (D) outside-in, and on through internal piping to outlet point (E). STANDARD HOUSING DESIGN • Body: Welded carbon steel construction • ASME Code, Section VIII, Div. 1, stamped and certified • Designed for 150 psi (10.5 kg/cm2) @ 250°F • Exterior: Prime coated • Swing bolt head closures • Head-Gasket: Buna-N o-ring — other materials available by request • Headlift furnished on 20" (508 mm) OD and larger STANDARD CONNECTIONS • Inlet and outlet: 150#RF (ANSI) flanged • All other connections are 3000# NPT couplings OPTIONS • Differential pressure gauge • Automatic drain valves • Liquid level gauge I-505 A Inlet B Inpingement Baffling C Coalescer Cartridge D Separator Cartridge E Outlet F Liquid Level Control Connection G Lower Drain Connection H Upper Drain Connection I Vent I H E G F F A D D C B Facet I-5 Rev 04-2006.indd 5 2/14/2007 5:11:56 PM
