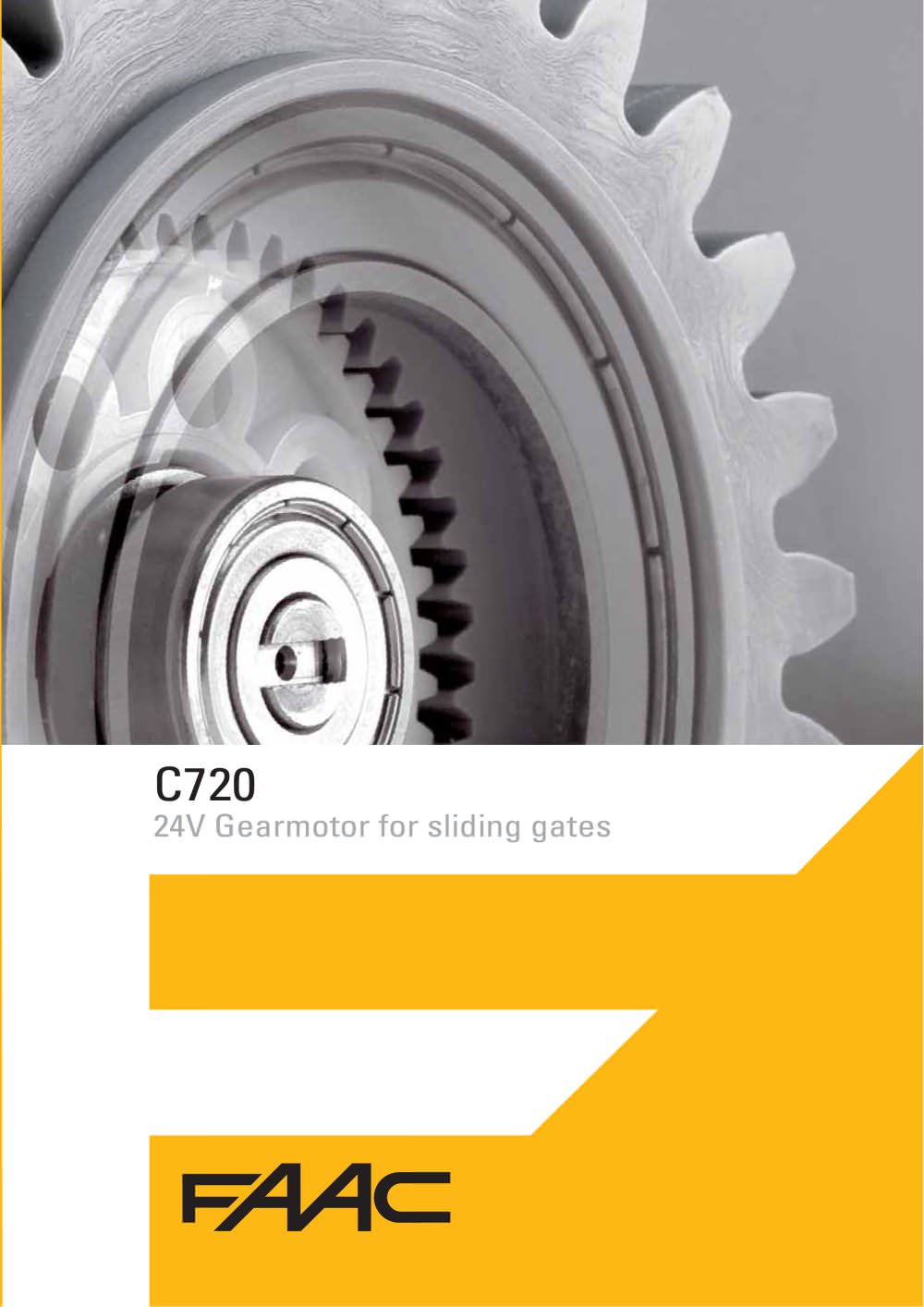

C720 24V Gearmotor for sliding gates

• High mechanical effi ciency: >80% (+50% compared to traditional gearboxes). • Vibration and noise reduction: the impellers are 180° out of phase, making the gearbox perfectly symmetrical and balanced. • Robustness and reliability: the load is distributed to many contact points. C720 • New moving axes speed reduction principle (FAAC patented). • Very high mechanical effi ciency (>80%). • Integrated control board with anti-crushing system and virtual encoder for inversion on obstacles. • Magnetic limit switches. • Residential use. A NEW REDUCTION PRINCIPLE FOR GATE AUTOMATION

Integrated E720 electronic board Emergency kit XBAT 24V with NiMH battery Receiver XF433 MHz Receiver XF868 MHz (compatible with all FAAC transmitters) • Easy to confi gure through the LCD display • High level of programmability and adjustment of installation parameters • Both traditional and Bus photocells can be connected to the board • 12 operating logics Pinion Z28 M 4 Gate speed Max 24 m/min Operating ambient temperature -20°C ÷ +55°C Weight 8 kg Limit switches Magnetic Protection class IP 44 Dimensions (L x D x H) 300 x 180 x 280 Power supply 230 Vac 50 Hz Motor supply 24 Vdc Power 170...
