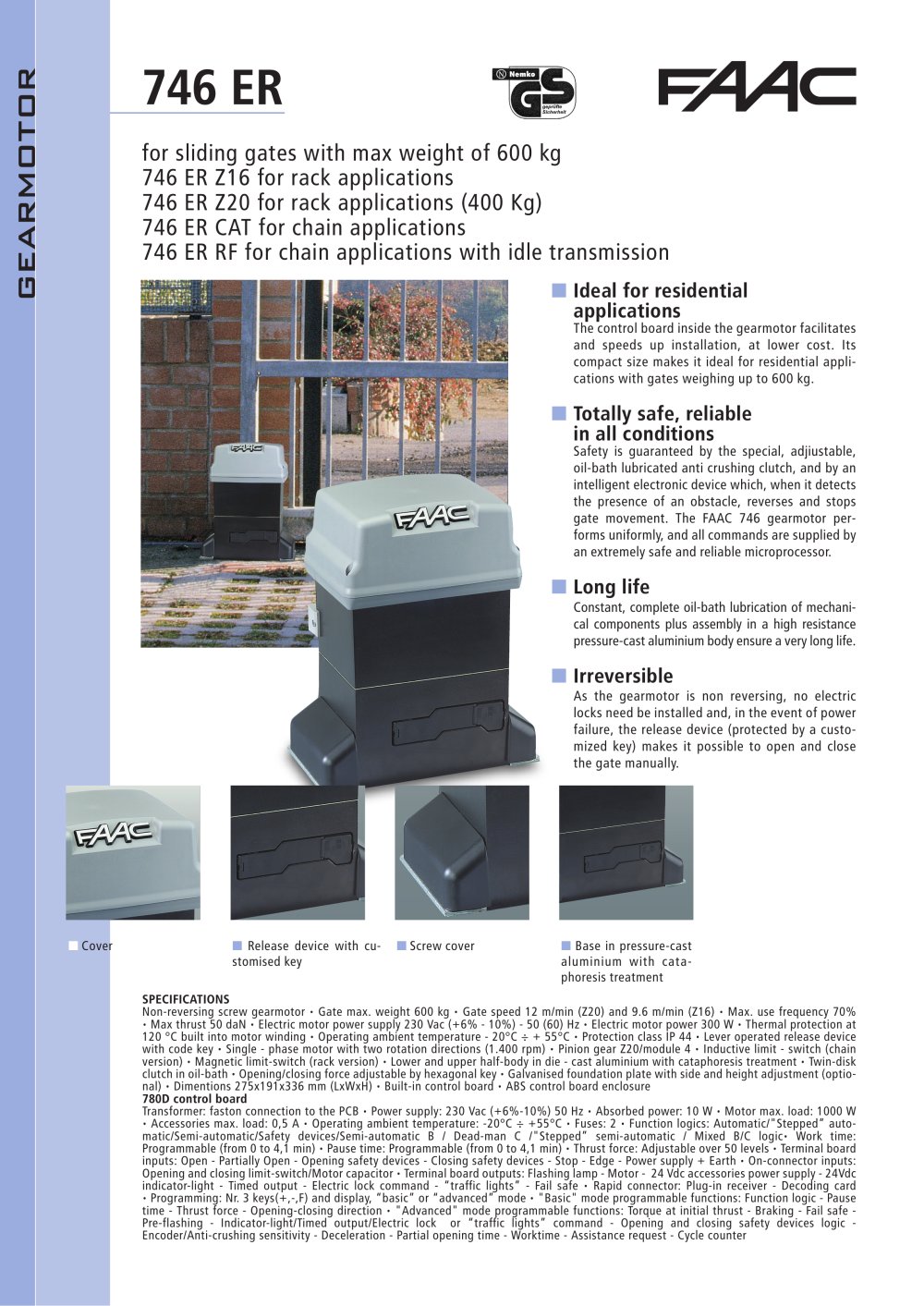

Gearmotor 746 ER
2Pages

for sliding gates with max weight of 600 kg 746 ER Z16 for rack applications 746 ER Z20 for rack applications (400 Kg) 746 ER CAT for chain applications 746 ER RF for chain applications with idle transmission 746 ER gearmotor ¡ Ideal for residential applications The control board inside the gearmotor facilitates and speeds up installation, at lower cost. Its compact size makes it ideal for residential applications with gates weighing up to 600 kg. ¡ Totally safe, reliable in all conditions Safety is guaranteed by the special, adjiustable, oil-bath lubricated anti crushing clutch, and by an intelligent electronic device which, when it detects the presence of an obstacle, reverses and stops gate movement. The FAAC 746 gearmotor performs uniformly, and all commands are supplied by an extremely safe and reliable microprocessor. ¡ Long life Constant, complete oil-bath lubrication of mechanical components plus assembly in a high resistance pressure-cast aluminium body ensure a very long life. ¡ Irreversible As the gearmotor is non reversing, no electric locks need be installed and, in the event of power failure, the release device (protected by a customized key) makes it possible to open and close the gate manually. SPECIFICATIONS Non-reversing screw gearmotor • Gate max. weight 600 kg • Gate speed 12 m/min (Z20) and 9.6 m/min (Z16) • Max. use frequency 70% • Max thrust 50 daN • Electric motor power supply 230 Vac (+6% - 10%) - 50 (60) Hz • Electric motor power 300 W • Thermal protection at 120 °C built into motor winding • Operating ambient temperature - 20°C ÷ + 55°C • Protection class IP 44 • Lever operated release device with code key • Single - phase motor with two rotation directions (1.400 rpm) • Pinion gear Z20/module 4 • Inductive limit - switch (chain version) • Magnetic limit-switch (rack version) • Lower and upper half-body in die - cast aluminium with cataphoresis treatment • Twin-disk clutch in oil-bath • Opening/closing force adjustable by hexagonal key • Galvanised foundation plate with side and height adjustment (optional) • Dimentions 275x191x336 mm (LxWxH) • Built-in control board • ABS control board enclosure 780D control board Transformer: faston connection to the PCB • Power supply: 230 Vac (+6%-10%) 50 Hz • Absorbed power: 10 W • Motor max. load: 1000 W • Accessories max. load: 0,5 A • Operating ambient temperature: -20°C ÷ +55°C • Fuses: 2 • Function logics: Automatic/"Stepped” automatic/ Semi-automatic/Safety devices/Semi-automatic B / Dead-man C /"Stepped” semi-automatic / Mixed B/C logic• Work time: Programmable (from 0 to 4,1 min) • Pause time: Programmable (from 0 to 4,1 min) • Thrust force: Adjustable over 50 levels • Terminal board inputs: Open - Partially Open - Opening safety devices - Closing safety devices - Stop - Edge - Power supply + Earth • On-connector inputs: Opening and closing limit-switch/Motor capacitor • Terminal board outputs: Flashing lamp - Motor - 24 Vdc accessories power supply - 24Vdc indicator-light - Timed output - Electric lock command - “traffic lights” - Fail safe • Rapid connector: Plug-in receiver - Decoding card • Programming: Nr. 3 keys(+,-,F) and display, “basic” or “advanced” mode • "Basic" mode programmable functions: Function logic - Pause time - Thrust force - Opening-closing direction • "Advanced" mode programmable functions: Torque at initial thrust - Braking - Fail safe - Pre-flashing - Indicator-light/Timed output/Electric lock or “traffic lights” command - Opening and closing safety devices logic - Encoder/Anti-crushing sensitivity - Deceleration - Partial opening time - Worktime - Assistance request - Cycle counter ¡ Cover ¡ Release device with customised key ¡ Screw cover ¡ Base in pressure-cast aluminium with cataphoresis treatment

Values in mm 1 3 908278004 - Rev. 10 - Zucchini - 3.000 - 09/2006 - The descriptions and illustrations contained in the present brochure are not binding. FAAC reserve the right to undertake product technical modifications without prior notice. REG. N. 085 UNI EN ISO 9001:2000 FAAC S.p.A. Via Benini, 1 40069 Zola Predosa - Bologna (Italy) tel. +39 051 61724 • fax +39 051 758518 www.faacgroup.com marka.bo.it 746 ER 1 2 3 5 4 Low voltage cabling 3 cables 3x0,5 1 cable 2x0,5 N.B: Cable diameters in mm2 FAAC 746 Z20 with built-in Control board RP 433 DS FAACLIGHT FAAC T10 E ANTENNA 433 Mhz FAAC...
