F. H. SCHULE Muehlenbau
Sorting Machines: High-Capacity Square Plansifter PLS

Sorting Machines: High-Capacity Square Plansifter PLS

Product catalog summary

Overview: The document describes the High-Capacity Square Plansifter PLS, designed for the classification of cereals, particularly for separating milled rice fractions. It includes specifications, descriptions, and operational functions of various models.

Specifications: The plansifter models range from PLS 1-8 to PLS 1+1-24, with screen areas from 4.80 m² to 34.08 m². Motor power varies between 1.5 kW and 2.2 kW. The dynamic load, net weight, gross weight, and cubage are specified for each model, indicating their capacity and physical dimensions.

Description: The plansifter consists of a steel structure supporting a free-swinging screen box. It uses a centrifugal weight driven by an electric motor to create circular movement. Flexible textile sleeves connect the stationary structure to the inlet and outlet boards, ensuring smooth operation.

Function: Products enter through the inlet board and are distributed over screens for pre-classification. Tailings and throughs are processed through additional screens until the desired fractions are achieved. These fractions are then collected and directed to the outlet board.

Capacity and Scope of Delivery: The capacity depends on the initial product type and desired end products. Specific data are determined on a case-by-case basis.

Contact Information: F. H. SCHULE Mühlenbau GmbH, located in Reinbek/Hamburg, provides contact details for further inquiries.

Catalog excerpts

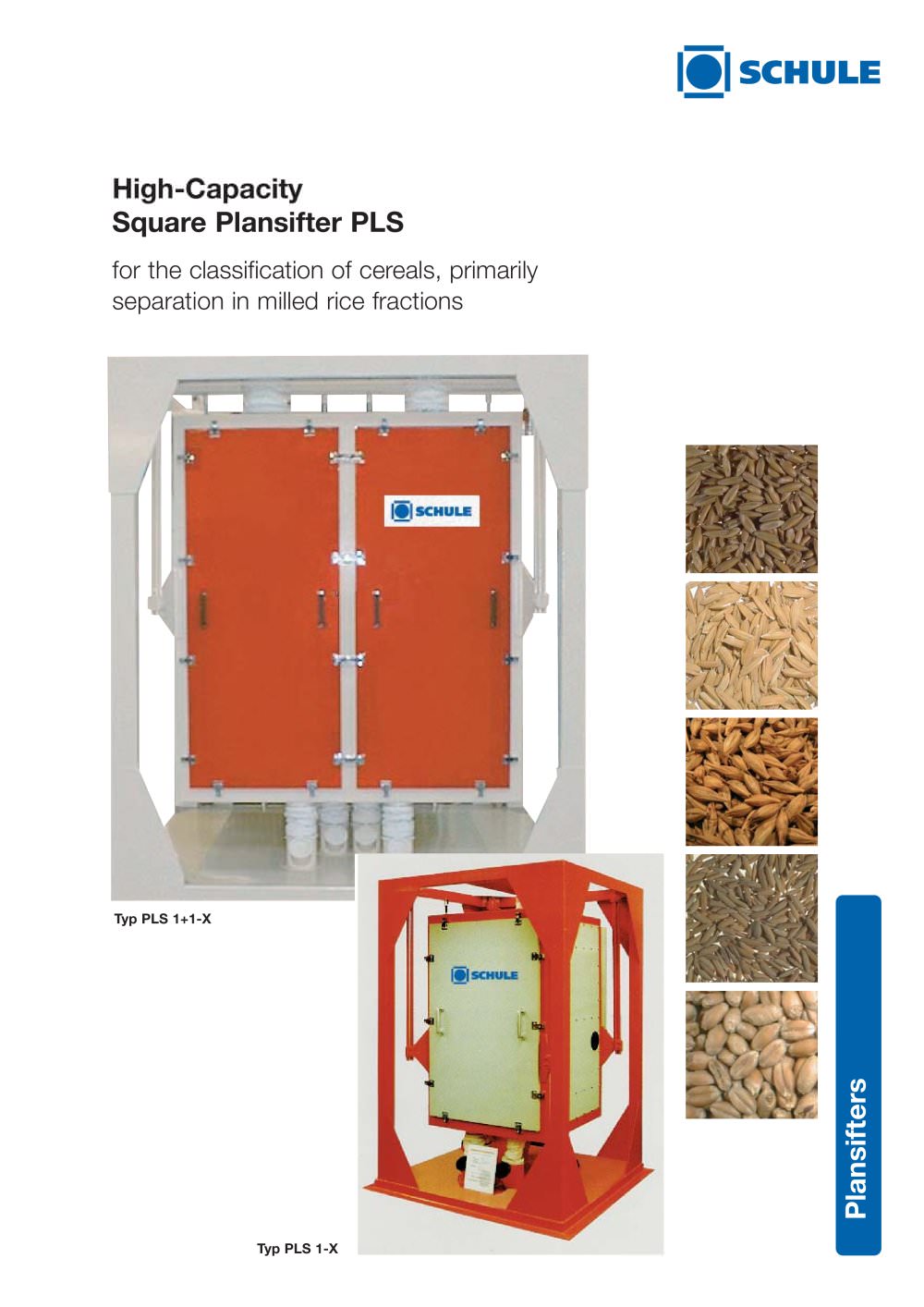

Sorting Machines: High-Capacity Square Plansifter PLS-1

Typ PLS 1+1-X Typ PLS 1-X for the classification of cereals, primarily separation in milled rice fractions

Open the catalog to page 1

Sorting Machines: High-Capacity Square Plansifter PLS-2

Type* Screen Motor Dynamic load Net weight Gross weight (m2) (kW) (kg) (kg) (kg) PLS 1-8 4.80 1.5 2000 1000 1350 PLS 1-10 6.00 1.5 2100 1050 1400 PLS 1-12 7.20 1.5 2200 1100 1500 PLS 1-14 8.40 1.5 2300 1150 1600 PLS 1+1-8 11.36 1.5 3200 1600 2310 PLS 1+1-10 14.20 1.5 3400 1700 2430 PLS 1+1-12 17.00 1.5 3600 1800 2560 PLS 1+1-14 19.80 2.2 3800 1900 2690 PLS 1+1-16 22.70 2.2 4000 2000 2820 PLS 1+1-18 25.50 2.2 4200 2100 2950 PLS 1+1-20 28.40 2.2 4400 2200 3080 PLS 1+1-22 31.24 2.2 4600 2300 3210 PLS 1+1-24 34.08 2.2 4800 2400 3330 * Other types on request V-belt drive provides for the circular...

Open the catalog to page 2
