Sorting Machines: High-Capacity Closed Circuit Separator HUS 1260

Sorting Machines: High-Capacity Closed Circuit Separator HUS 1260

Product catalog summary

Overview: The HUS 1260 is a high-capacity closed circuit separator designed for efficient separation of light and heavy particles. It features an all-steel construction and utilizes a unique air current alignment system for optimal separation.

Specifications: The separator has a suction width of 1260 mm and is powered by a 3.0 kW motor. It can handle varying capacities per hour depending on the product. The net weight is 720 kilos, with a gross weight of 900 kilos and a cubage of 5.8 m³.

Functionality: The machine operates with circulating air, eliminating the need for additional cyclones or filters. It can separate products into two or three fractions, with the option to close the middle fraction if only two are needed. The separation process is adjustable via a false air flap, and the operation is nearly noiseless.

Applications: The HUS 1260 is suitable for separating husks from shelled grains and pulses, immature grains, dust, straw particles, granulates, synthetic materials, and metals. It can be used before or after screening processes.

Design Features: The separation chamber is illuminated and equipped with inspection windows for easy observation. The machine's design ensures minimal air expulsion into the piping system, maintaining efficiency.

Contact Information: F. H. SCHULE Mühlenbau GmbH, Dieselstraße 5-9, D - 21465 Reinbek / Hamburg. Phone: +49 (0)40 7 27 71 - 0, Fax: +49 (0)40 7 27 71 - 710, Email: [email protected], Website: www.schulefood.de

Catalog excerpts

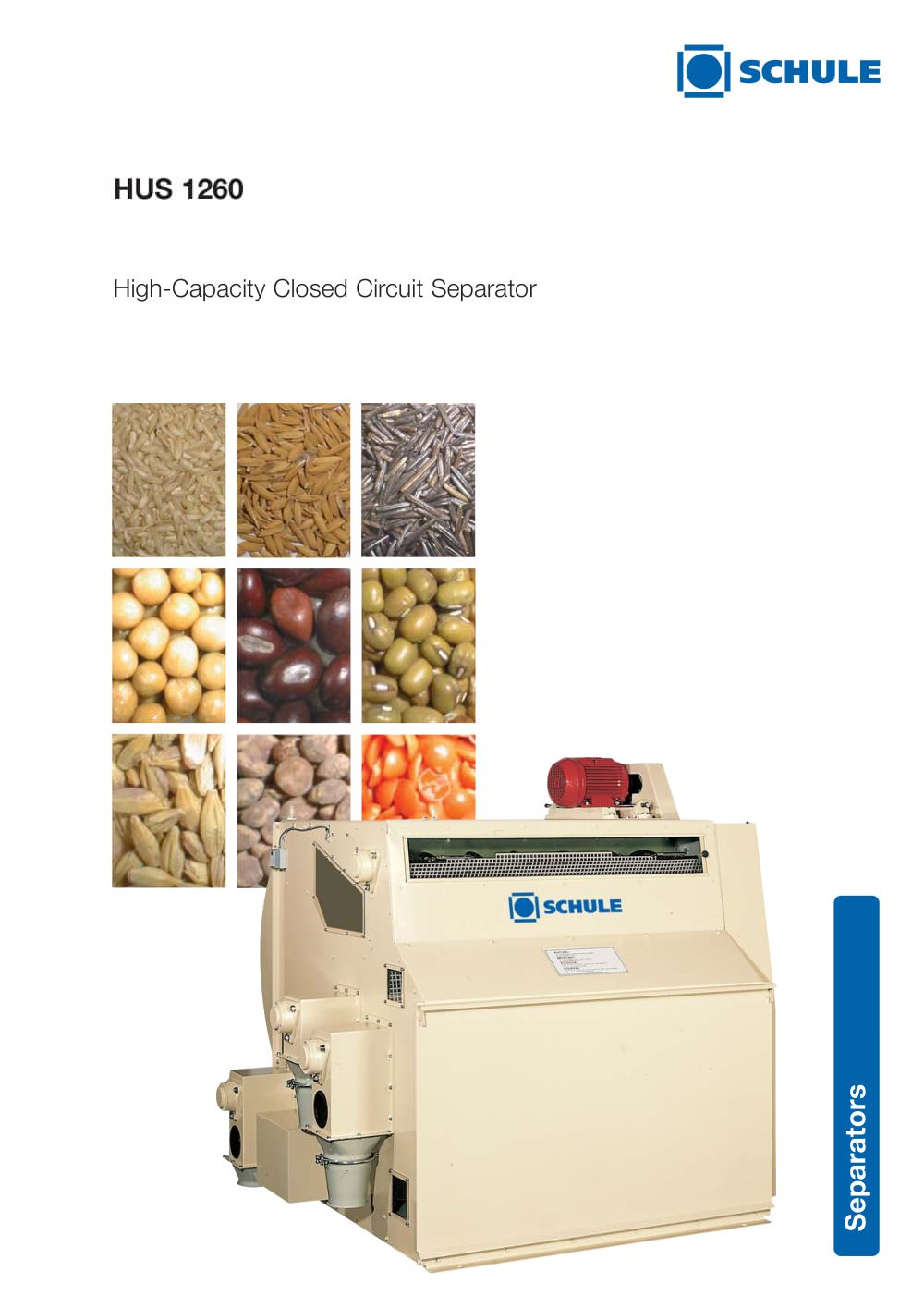

High-Capacity Closed Circuit Separator

Open the catalog to page 1

1680 1380 1465 allows utilization of the whole aspiration width while achieving a very high degree of separation. The separation chamber is illuminated and inspection windows permit easy observation. The machine works with circulating air and does not need any subsequent cyclones or filters. The separated products are conveyed into the piping system by three discharge augers. It is possible to choose between two or three fractions. The middle fraction is being closed if only two fractions are needed. This results in having only heavy and light particles. The three discharge augers expel a maximum...

Open the catalog to page 2
