Sorting Machines: Centrifugal Sifting Machine WSM

Product catalog summary

Overview: The Centrifugal Sifting Machine WSM is designed for processing powdery and granular materials, commonly used in rice and oat mills. It functions as a control or safety sieve, separating feed stock into two grades, removing foreign particles, scarifying material, and dissolving soft lumps.

Specifications:

Drive Motor: 1.5 kW (available in 50 Hz and 60 Hz)
Capacity: Up to 1000 kilos per hour on rice bran
Dimensions: Length: 1794 mm (50 Hz) / 1865 mm (60 Hz), Width: 420 mm, Height: 750 mm
Weight: Net weight: 85 kilos, Gross weight: 150 kilos
Cubage: 1.0 m³

Technical Components:

Drive motor
Feed inlet
Feed worm
Sieve sleeve
Vortex rails
Baffle plate
Outlet for fine product
Outlet for coarse product

Installation Note: A minimum clearance of 500 mm is required for changing the sieve.

Additional Information: The throughput may vary based on material structure, mixture ratio, and fat and moisture content. The manufacturer reserves the right to make design improvements that may alter specifications.

Catalog excerpts

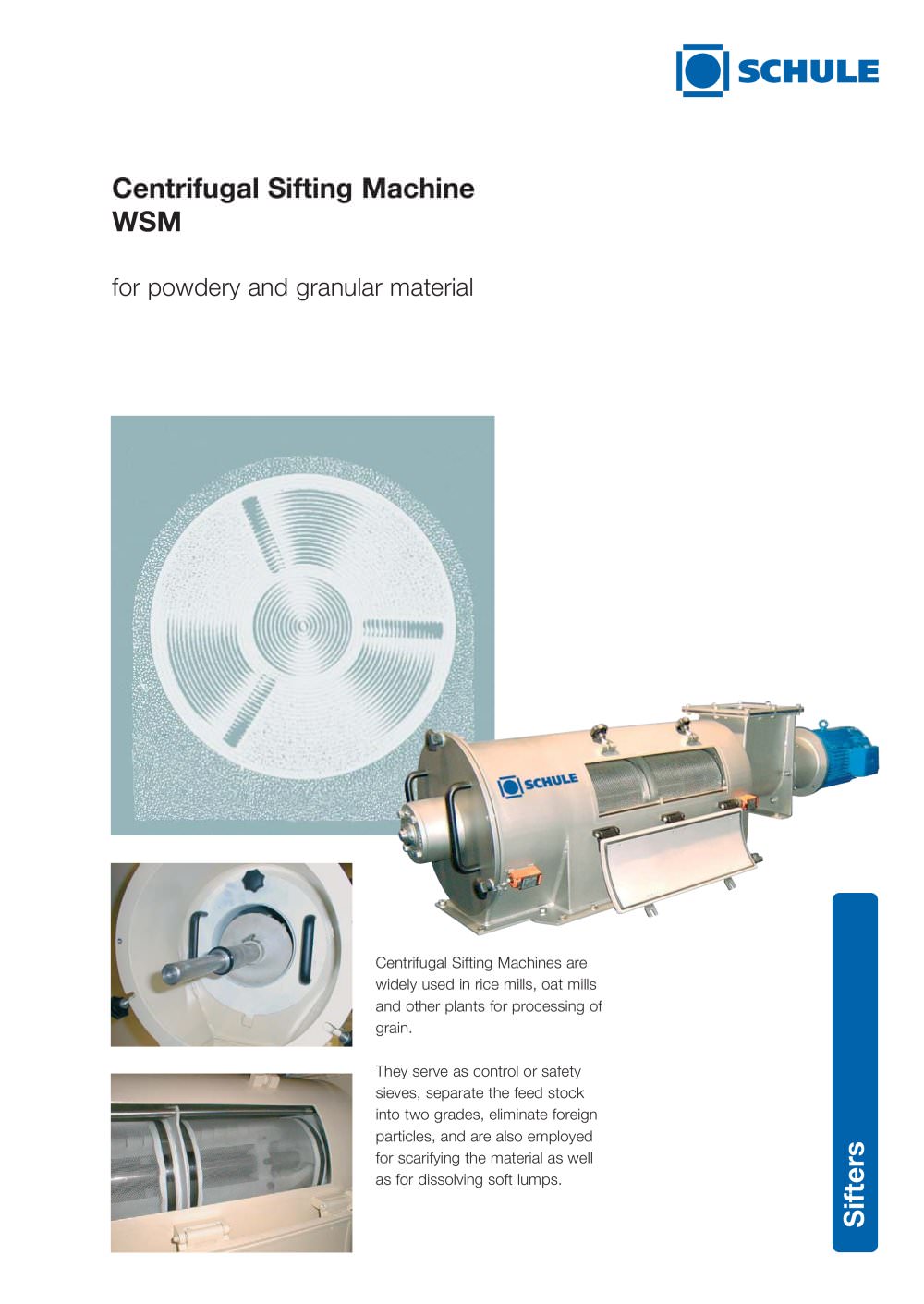

Sorting Machines: Centrifugal Sifting Machine WSM-1

for powdery and granular material Centrifugal Sifting Machines are widely used in rice mills, oat mills and other plants for processing of grain. They serve as control or safety sieves, separate the feed stock into two grades, eliminate foreign particles, and are also employed for scarifying the material as well as for dissolving soft lumps.

Open the catalog to page 1

Sorting Machines: Centrifugal Sifting Machine WSM-2

F. H. SCHULE Mühlenbau GmbH Dieselstraße 5-9 D- 21465 Reinbek / Hamburg Phone: +49 (0)40 7 27 71 - 0 Fax: +49 (0)40 7 27 71 - 710 schule@amandus-kahl-group. www.schulefood. Size Capacity / h Drive motor Overall dimensions Shipping particulars at sieve mesh 1.2 mm Length Width Height net weight gross weight kilos kW mm mm mm kilos kilos 65 up to 1000* 1.5 (50 Hz) 1794 420 750 85 150 65 up to 1000* 1.5 (60 Hz) 1865 420 750 85 150 *on rice bran Detail on capacity applies to processing of dry substance. The throughput is subject to variation depending on structure ratio of mixture as well as fat...

Open the catalog to page 2
