Cleaning Machines - GTR Cleaners

Cleaning Machines - GTR Cleaners
2Pages

Catalog excerpts

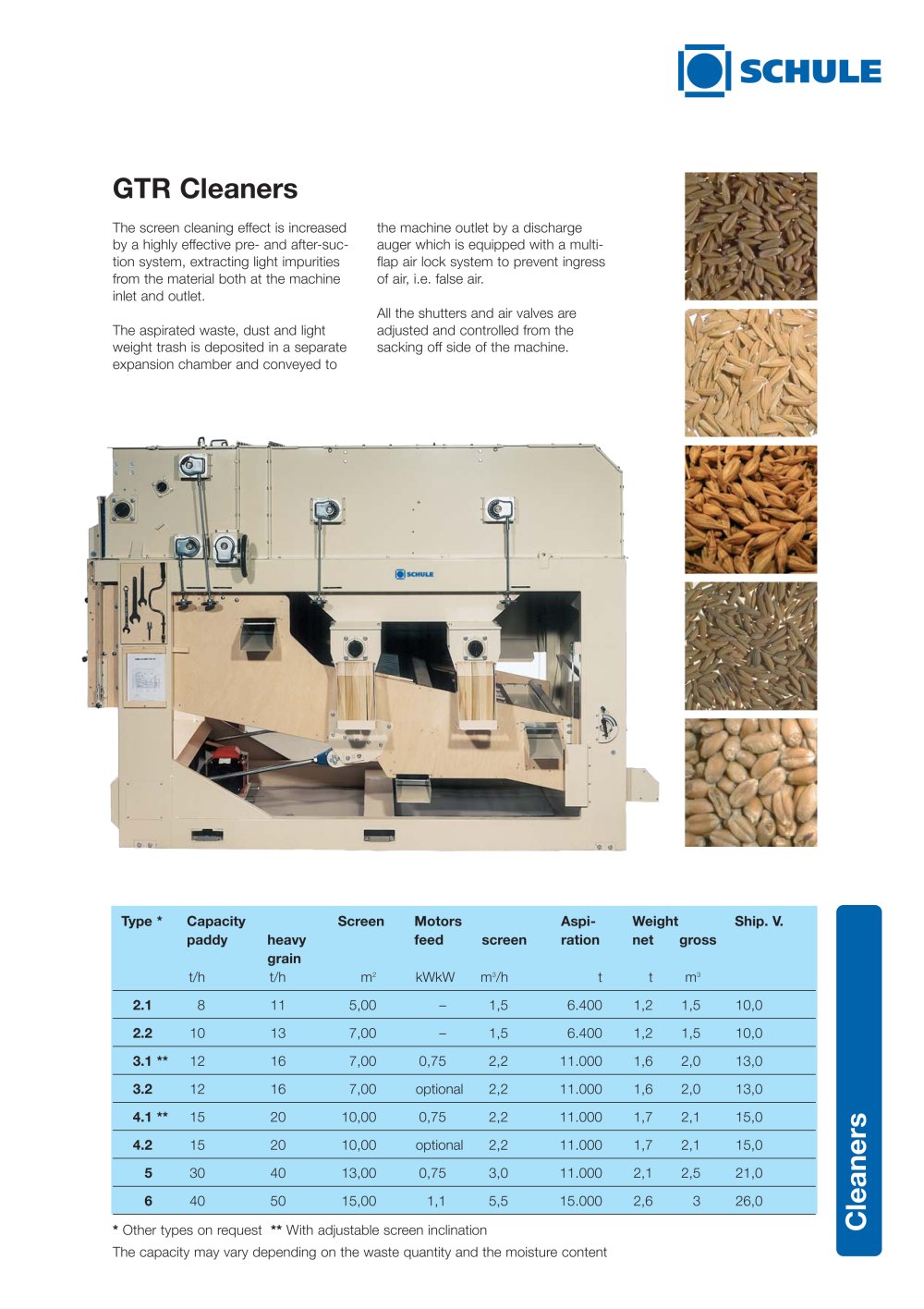

Type * Capacity Screen Motors Aspi- Weight paddy heavy feed screen ration net gross grain t/h t/h m2 kWkW m3/h t t m3 2.1 8 11 5,00 – 1,5 6.400 1,2 1,5 2.2 10 13 7,00 – 1,5 6.400 1,2 1,5 3.1 ** 12 16 7,00 0,75 2,2 11.000 1,6 2,0 3.2 12 16 7,00 optional 2,2 11.000 1,6 2,0 4.1 ** 15 20 10,00 0,75 2,2 11.000 1,7 2,1 4.2 15 20 10,00 optional 2,2 11.000 1,7 2,1 5 30 40 13,00 0,75 3,0 11.000 2,1 2,5 6 40 50 15,00 1,1 5,5 15.000 2,6 3 * Other types on request ** With adjustable screen inclination The capacity may vary depending on the waste quantity and the moisture content from the material both at the machine inlet and outlet. The aspirated waste, dust and light weight trash is deposited in a separate expansion chamber and conveyed to of air, i.e. false air. All the shutters and air valves are adjusted and controlled from the sacking off side of the machine.

Open the catalog to page 1

F. H. SCHULE Mühlenbau GmbH Dieselstraße 5-9 D- 21465 Reinbek / Hamburg Phone: +49 (0)40 7 27 71 - 0 Fax: +49 (0)40 7 27 71 - 710 schule@amandus-kahl-group. www.schulefood. Pre-suction system The pre-suction system removes dust and trash before screening. The aspiration opening pre-suction channel is adjustable thus achieving variable air velocity. Scalping Screen A 1 m2 pre-screen for separation of coarse Pre-screen The pre-screen separates oversize material. (Adjustable screen inclination on Type 3.1/4.1 Grading screen / sand sieve The two (type 5 = four) lowest rows of screens utilized...
