F. H. SCHULE Muehlenbau
Cleaning Machines - Destoner ST

Cleaning Machines - Destoner ST

Product catalog summary

Overview: The Destoner ST is a high-capacity machine designed to separate heavy particles such as stones, soil lumps, mud balls, and metals from granular products. It is equipped with a motorized vibrator and an external aspirator to facilitate the separation process.

Specifications: The machine comes in three models: ST-1, ST-2, and ST-3, with capacities ranging from 3 to 8 tons per hour for paddy and 4.5 to 14 tons per hour for heavy grain. All models feature a 0.68 kW motorized vibrator and require a vacuum of 120 mm water column.

Functionality: The machine operates by feeding the granular product into a vibrating inclined selection table. An ascending air current, generated by the aspirator, helps separate lighter particles from heavier ones. The heavier particles move towards the upper outlet, while lighter particles are carried away for further processing.

Dimensions and Capacities: The ST-1 model has a net weight of 250 kg and a gross weight of 350 kg, with a cubage of 2.4 m3. The ST-2 model weighs 300 kg net and 400 kg gross, with a cubage of 4.5 m3. The ST-3 model has a net weight of 460 kg and a gross weight of 550 kg, with a cubage of 6.5 m3.

Contact Information: F. H. SCHULE Mühlenbau GmbH, located in Reinbek/Hamburg, Germany, can be contacted via phone at +49 (0)40 7 27 71 - 0 or email at [email protected]. More information is available on their website www.schulefood.de.

Catalog excerpts

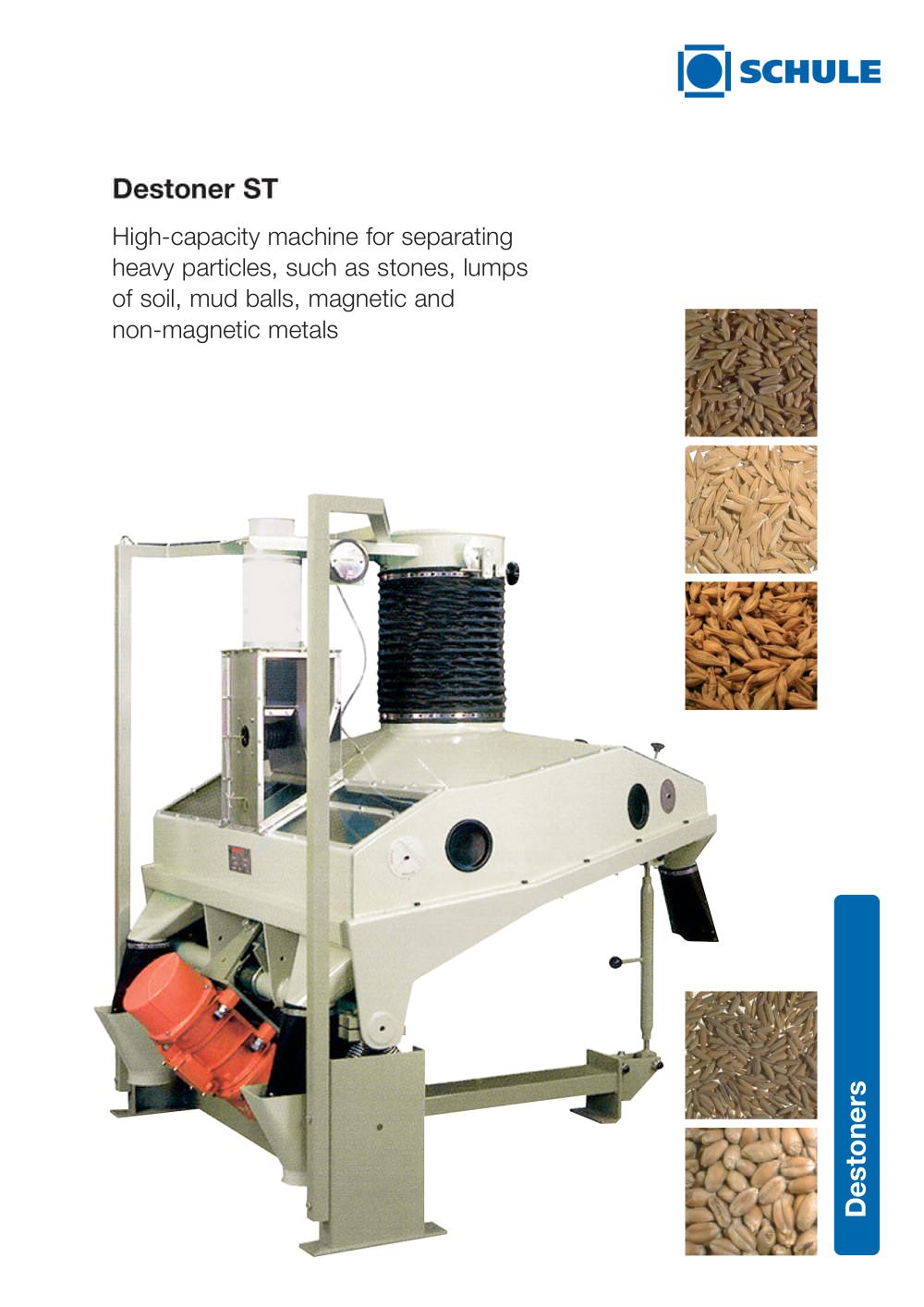

heavy particles, such as stones, lumps of soil, mud balls, magnetic and non-magnetic metals

Open the catalog to page 1

ST - 2 5 9.0 0.68 300 400 ST - 3 8 14.0 0.68 460 550 The ST Destoner is used to continuously eliminate stones and heavy fragments from a flow of granular product. The feed bin, with band-controlled dosage, allows the inlet of the granular product into the machine. The product, uniformly distributed by the vibration of the inclined selection table, is carried in suspension by an ascending current, generated by an external aspirator, which allows it to flow towards the lower part. The heavier parts, under the influence of the particular configuration of the selection sieve surface, move towards...

Open the catalog to page 2
