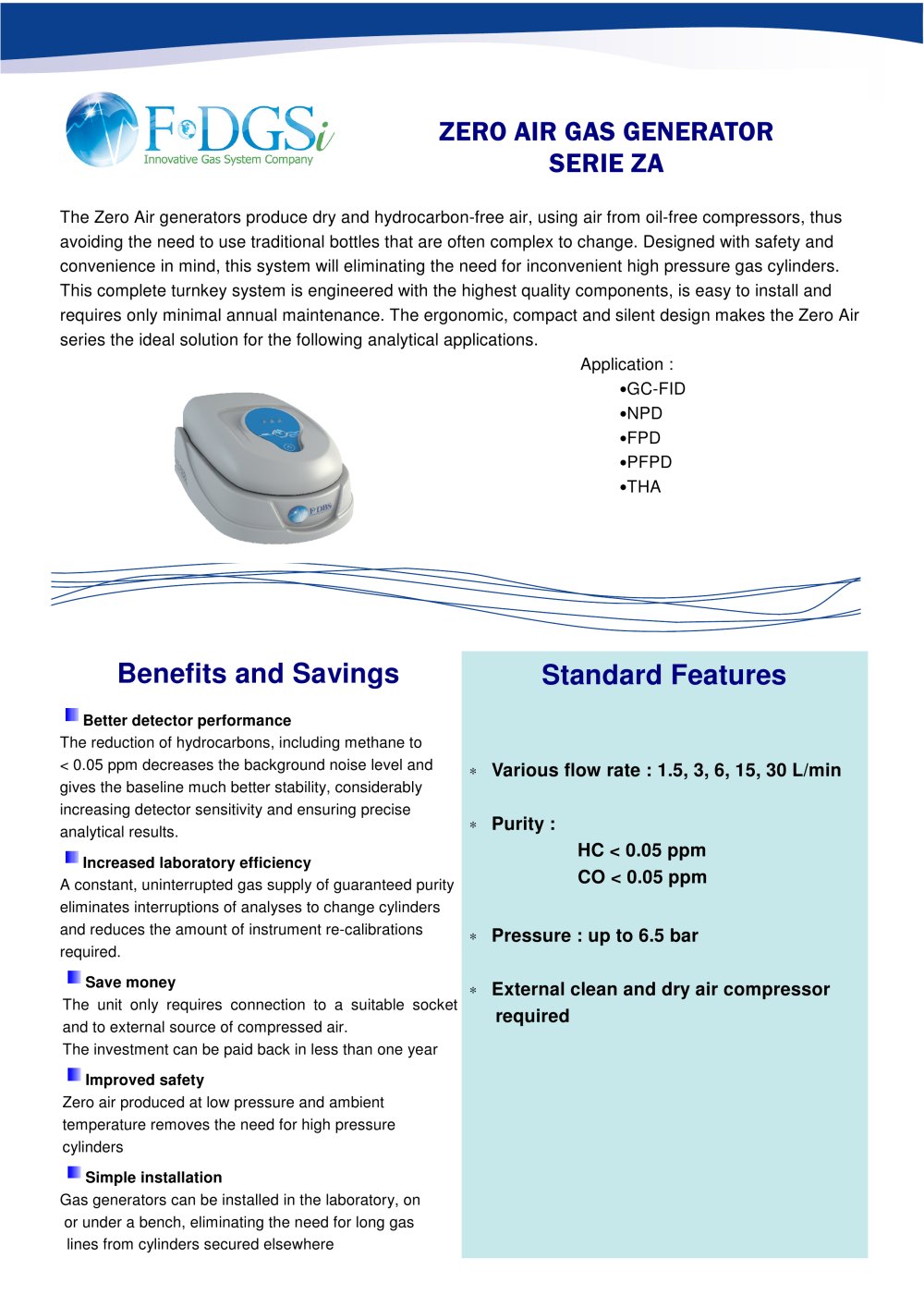

ZERO AIR Generator
1 / 2 PagesView full catalog
ZERO AIR Generator
Product catalog summary
Benefits and Savings
- Better Detector Performance: Reducing hydrocarbons, including methane, to less than 0.05 ppm decreases background noise and enhances baseline stability, improving detector sensitivity and ensuring precise analytical results.
- Increased Laboratory Efficiency: A constant, uninterrupted supply of high-purity gas eliminates analysis interruptions for cylinder changes and reduces the need for frequent instrument recalibrations.
- Cost Savings: The system requires only a connection to a suitable socket and an external compressed air source, with potential payback in less than a year.
- Improved Safety: Producing zero air at low pressure and ambient temperature removes the need for high-pressure cylinders.
- Simple Installation: Gas generators can be installed in the laboratory, eliminating the need for long gas lines from cylinders located elsewhere.
System Features
- The Zero Air generators produce dry, hydrocarbon-free air using oil-free compressors, avoiding the complexity of traditional gas bottles.
- Designed for safety and convenience, the system eliminates the need for high-pressure gas cylinders.
- The system is engineered with high-quality components, easy to install, and requires minimal annual maintenance.
- Applications include GC-FID, NPD, FPD, PFPD, and THA.
Standard Features
- Various flow rates: 1.5, 3, 6, 15, 30 L/min
- Purity: HC < 0.05 ppm, CO < 0.05 ppm
- Pressure: up to 6.5 bar
- External clean and dry air compressor required
Technical Specifications
- Models: ZA-1500, ZA-3000, ZA-6000, ZA-15000, ZA-30000
- Flow rate (max): 1.5 to 30 L/min
- Outlet pressure (max): 6.5 Bar (94 psi)
- Total hydrocarbon content: < 0.05 ppm
- Startup time: 40 min
- Max inlet hydrocarbon content: 100 ppm
- Water dewpoint: < -20°C
- Inlet air supply pressure: 3 Bar (43 psi) - 10 Bar (145 psi)
- Dimensions: 43x34x20(H) cm
- Net weight: 8Kg to 20Kg
- Supply voltage: 90-240Vac 50/60Hz
- Installation power (max): 100W (130VA)
- Inlet/outlet connections: 1/8" Female
Operational Process
- Step 1: Pre-filtration - The external oil-free compressor delivers air through a high-efficiency filter that traps particles, oil, and water larger than 5 microns.
- Step 2: HC and CO Trapping - Air enters a high-temperature platinum catalyst, oxidizing hydrocarbons to less than 0.05 ppm.
- Step 3: Final Filtration - A high-efficiency filter prevents particles from entering the instrument.
