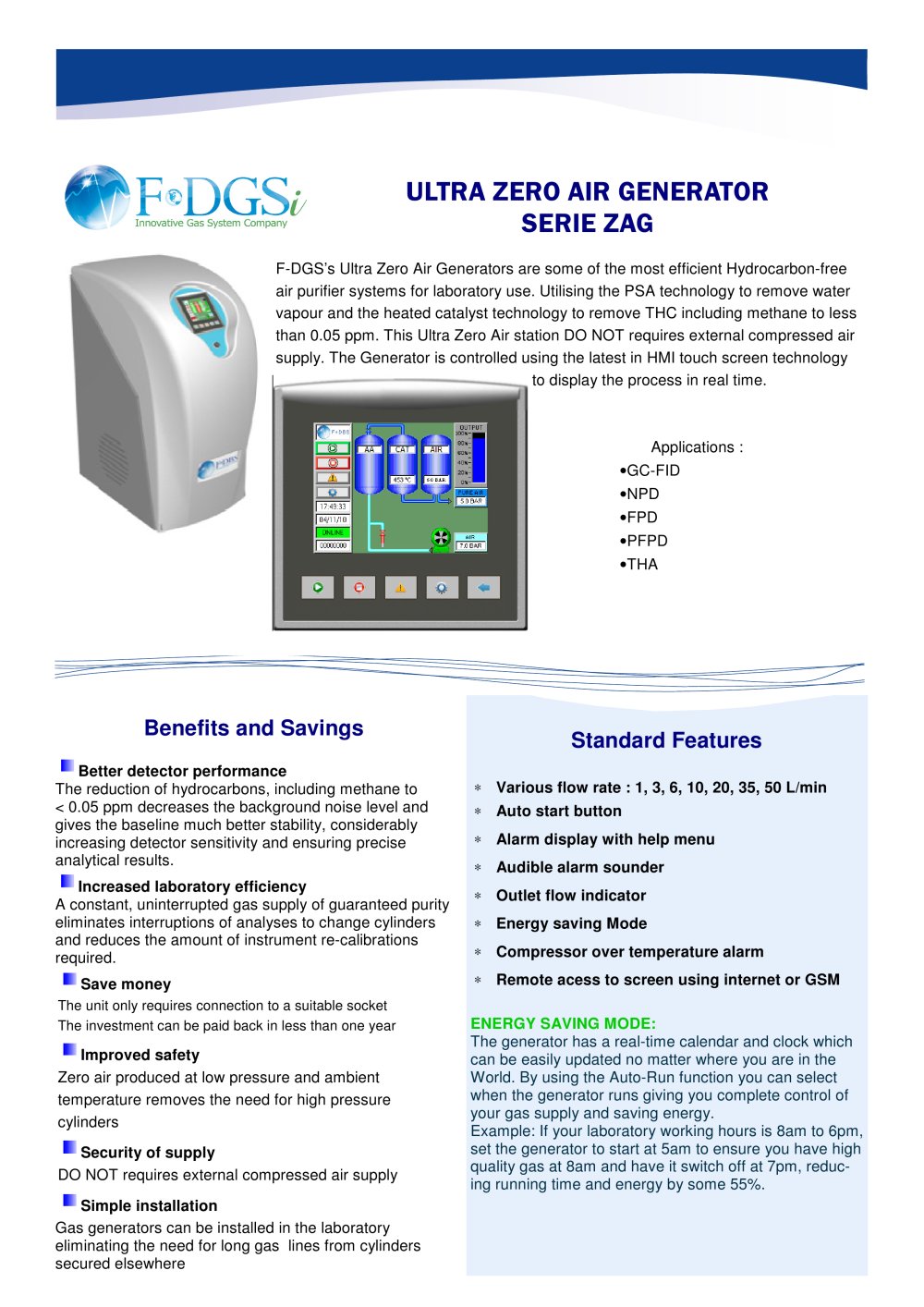

ULTRA ZERO AIR GENERATOR

1 / 2 PagesView full catalog

ULTRA ZERO AIR GENERATOR

Product catalog summary

Benefits and Savings

Improved Detector Performance: Reduces hydrocarbons, including methane, to less than 0.05 ppm, enhancing detector sensitivity and analytical precision.
Increased Laboratory Efficiency: Provides a constant, uninterrupted supply of high-purity gas, reducing analysis interruptions and instrument recalibrations.
Cost Savings: Simple installation with a quick return on investment, typically less than one year.
Enhanced Safety: Operates at low pressure and ambient temperature, eliminating the need for high-pressure cylinders.
Security of Supply: Does not require an external compressed air supply.
Simple Installation: Can be installed directly in the laboratory, removing the need for long gas lines.

Standard Features

Various flow rates: 1, 3, 6, 10, 20, 35, 50 L/min
Auto start button and alarm display with help menu
Audible alarm sounder and outlet flow indicator
Energy saving mode and compressor over-temperature alarm
Remote access via internet or GSM

Energy Saving Mode: Features a real-time calendar and clock for scheduling operation times, reducing energy consumption by up to 55%.

Technical Overview

Utilizes PSA technology and a palladium catalyst to produce ultra zero air gas.
Processes compressed air through filtration and a catalyst chamber to remove particles, moisture, and hydrocarbons.
Stores compressed air in an internal tank, regulating pressure for use.
Operates within an ambient temperature range of 5-35°C (41-95°F).
Electrical supply options: 220v a.c. / 1ph / 50Hz or 110v a.c. / 1ph / 50-60Hz.

Technical Specifications

Models: ZAG1-1 to ZAG50-1 with flow rates from 1.5 to 50 L/min at 6 barg.
CH4, CO, NOx output: < 0.05 ppm; CO2 output: < 5 ppm.
Particle filtration level: 0.1 micron; Water dewpoint: -50°C.
Integrated oil-free air compressor and air dryer.
Sound level: < 50 dBA; Weight: 45-80 Kg depending on model.
Dimensions vary by model.

Applications

GC-FID, NPD, FPD, PFPD, THA
