• Increased Laboratory Efficiency: Continuous supply of pure nitrogen gas reduces interruptions and recalibrations.
• Improved Economy: Standard production of pure nitrogen gas.
• Improved Safety: Low-pressure nitrogen production eliminates the need for high-pressure cylinders.
• Security of Supply: Optional integral oil-free air compressor ensures continuous gas supply.
• Simple Installation: Generators can be installed in the lab, reducing the need for long gas lines.

• Fully regenerative PSA technology reduces contamination risk.
• HMI touch screen for real-time process display.
• Optional integral oil-free compressor for secure supply.
• Soundproofed compressor box and anti-vibration features for quiet operation.
• Compressor over-temperature alarm and auto start.
• Audible and visual alarms with help menu.
• Visual maintenance indication and outlet flow indicator.
• Trend graph for QA reporting and energy-saving mode.
• Remote access via internet or GSM.

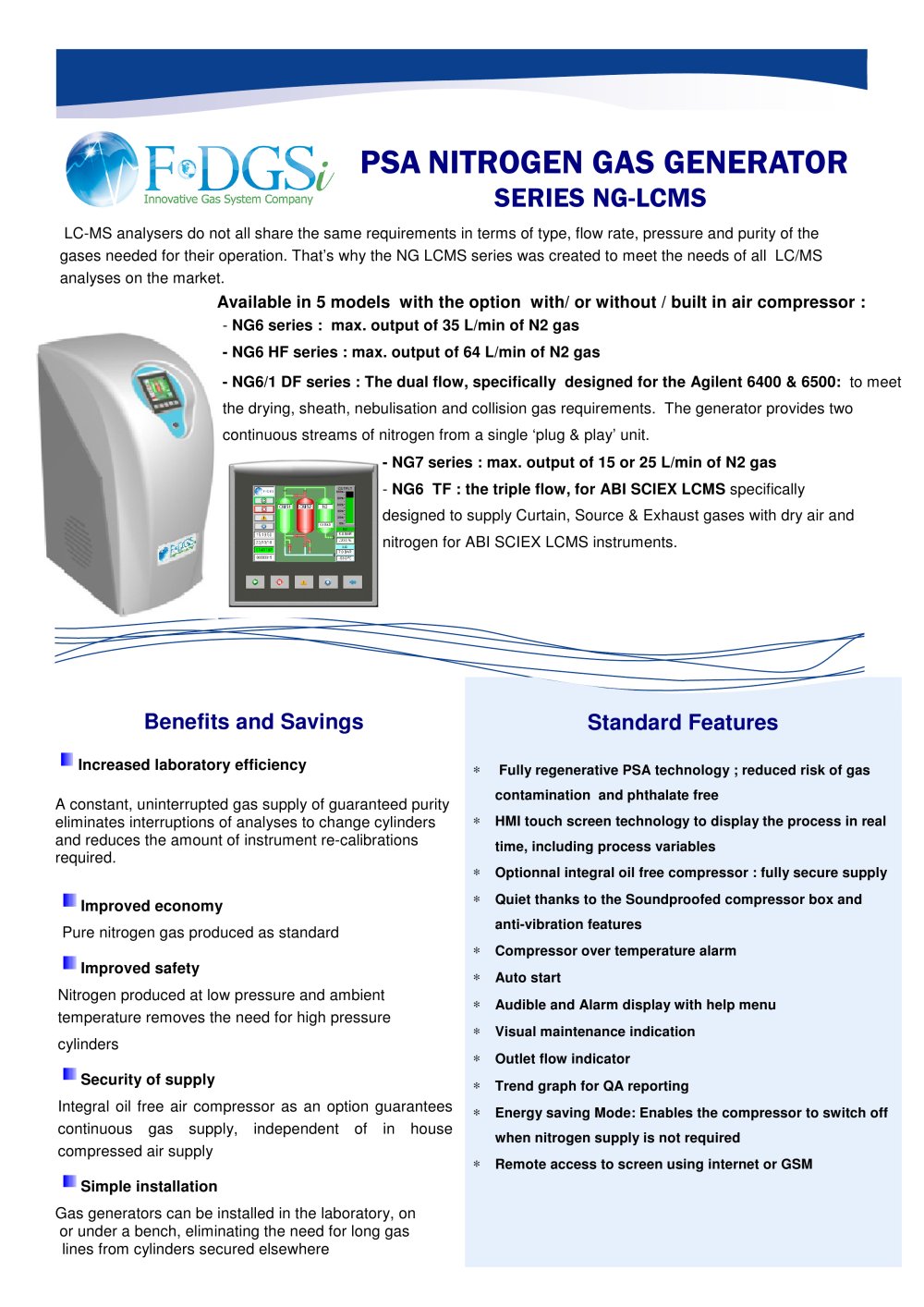

The NG LCMS series is designed to meet diverse LC/MS analysis needs, available in five models with or without built-in air compressors:

• NG6 Series: Max output of 35 L/min of N2 gas.
• NG6 HF Series: Max output of 64 L/min of N2 gas.
• NG6/1 DF Series: Dual flow for Agilent 6400 & 6500, providing two continuous nitrogen streams.
• NG7 Series: Max output of 15 or 25 L/min of N2 gas.
• NG6 TF: Triple flow for ABI SCIEX LCMS, supplying Curtain, Source & Exhaust gases.

• PSA technology uses a carbon molecular sieve to remove contaminants from air.
• Operates with ambient temperature range of 5-35°C and maximum air inlet pressure of 10 barg.
• Nitrogen outlet pressure varies by model.
• Electrical supply options: 220v a.c. / 1ph / 50Hz or 110v a.c. / 1ph / 50-60Hz.
• Inlet/Outlet connections: G 1/4” (BSP) Female.

• Size 3: 725mm height, 450mm width, 665mm depth, 80kg weight.
• Size 4: 820mm height, 600mm width, 680mm depth, 150kg weight.

F-DGSi SAS, 8-10 rue du Bois Sauvage, bat Q18, 91000 EVRY, FRANCE. Tel: +33 1 64 98 21 00, Fax: +33 1 64 98 00 43, Email: [email protected], Website: www.f-dgs.com
