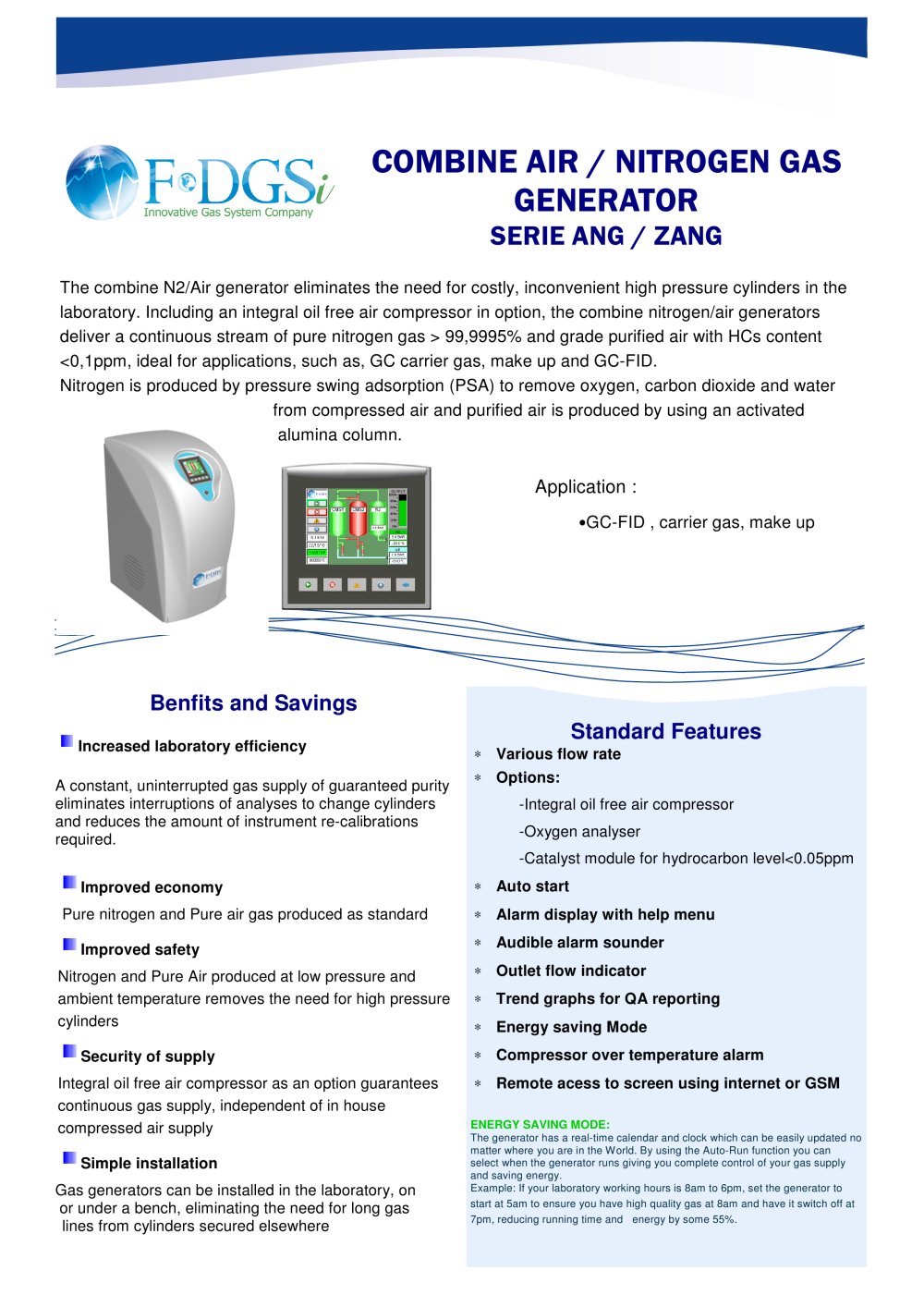

Combine Air / Nitrogen Generator

Product catalog summary

Benefits and Savings

Increased Laboratory Efficiency: Provides a constant, uninterrupted gas supply of guaranteed purity, reducing interruptions and the need for frequent instrument recalibrations.
Improved Economy: Produces pure nitrogen and air gas as standard, eliminating the need for high-pressure cylinders.
Improved Safety: Operates at low pressure and ambient temperature, enhancing safety by removing the need for high-pressure cylinders.
Security of Supply: Optional integral oil-free air compressor ensures continuous gas supply, independent of in-house compressed air.
Simple Installation: Can be installed in the laboratory, on or under a bench, eliminating long gas lines from external cylinders.

Standard Features

Various flow rate options, including integral oil-free air compressor, oxygen analyser, and catalyst module for hydrocarbon levels <0.05ppm.
Auto start, alarm display with help menu, audible alarm sounder, outlet flow indicator, and trend graphs for QA reporting.
Energy-saving mode with real-time calendar and clock for controlled operation, reducing energy consumption by up to 55%.
Remote access to screen via internet or GSM.

Technical Specifications

Ambient temperature range: 5-35°C (41-95°F).
Maximum air inlet pressure: 8 barg (116 psig).
Nitrogen outlet pressure: See table.
Dewpoint: -40°C (-40°F).
Particulate: <1 micron, Oil: <0.01 mg/m³.
Electrical supply: 220v a.c. / 1ph / 50Hz or 110v a.c. / 1ph / 50-60Hz.
Inlet/Outlet connections: G 1/4” (BSP) Female.

Technical Data

Specifications for models ANG1/1, ANG1/0, ANG3/1, ANG3/0 include max. N2 flow rate > 99.9995%, purified air flow rate with HCs < 0.01 ppm, and outlet pressure of 5.5 bars.
Integrated air compressor option available with noise level <55 dB.

Application

Suitable for GC-FID, carrier gas, and make-up applications.

Dimensions and Weights

Without compressor: Height 650 mm (25 ins), Width 320 mm (12.5 ins), Depth 650 mm (25.5 ins), Weight 45 kg.
With compressor: Height 725 mm (28.5 ins), Width 450 mm (17.7 ins), Depth 665 mm (26.1 ins), Weight 80 kg.
