Product catalog summary
Overview: The EXREM10 Series is a second-generation industrial remote designed for explosive hazardous atmospheres (ATEX/EX/HazLoc). It features a customizable, durable design with anti-static properties and is engineered to prevent ignition of explosive gases or dust.
Specifications:
  • Environmental: Operating temperature ranges from -20°C to 60°C, with storage and charging temperatures between 0°C and 40°C. It supports 0% to 100% relative humidity and offers IP65 and IK10+ protection.
  • Mechanical: Weighs 2.3 kg with dimensions of 252.4 × 144.7 × 159.3 mm.
  • Electrical: Operates at 3.3 VDC with power consumption between 50-95 mA. The battery is a 3.7 V 2500 mAh LiPo, offering 55 hours of operating time and a 5-year lifetime.
  • Wireless: Operates on 869 MHz and 915 MHz frequency bands with a range of 220 meters line of sight.
Features:
  • Durable housing with IP65 and IK10+ protection.
  • Field-tested range of 220 meters line of sight.
  • 50+ hours of battery life with USB-C charging.
  • Emergency Stop feature compliant with IEC 60204-1/NFPA 79/CSA C22.2 No. 301.
  • Two-way communication and optional wired connection.
Layout Options: Offers various control layouts including joysticks, toggles, rotation knobs, push buttons, and a dual channel NC STOP button. Supports 9 analog or digital channels and 11 digital-only channels.
Legal Disclaimer: The product is not intended for use in applications where failure could result in injury or death. Product specifications are subject to change without notice.
See more

Catalog excerpts

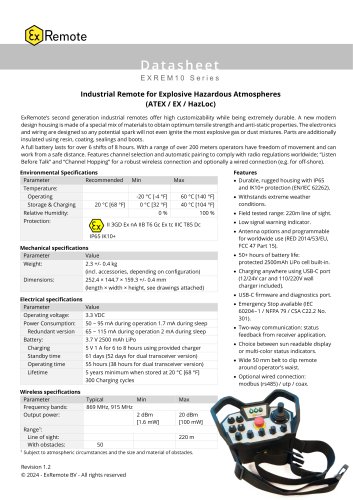

E X R E M 1 0 S e r i e s-1

Industrial Remote for Explosive Hazardous Atmospheres(ATEX / EX / HazLoc) ExRemote's second generation industrial remotes offer high customizability while being extremely durable. A new modern design housing is made of a special mix of materials to obtain optimum tensile strength and anti-static properties. The electronics and wiring are designed so any potential spark will not even ignite the most explosive gas or dust mixtures. Parts are additionally insulated using resin, coating, sealings and boots. A full battery lasts for over 6 shifts of 8 hours. With a range of over 200 meters operators have freedom of movement and can work from a safe distance. Features channel selection and automatic pairing to comply with radio regulations worldwide; "Listen Before Talk" and "Channel Hopping" for a robust wireless connection and optionally a wired connection (e.g. for off-shore). Environmental Specifications Parameter Recommended 1 Subject to atmospheric circumstances and the size and material of obstacles. © 2024 - ExRemote BV - All rights reserved

 Open the catalog to page 1
E X R E M 1 0 S e r i e s-2

'emote Datasheet | EXREM10 Series Layout options Customers can choose a layout with a variety of controls: 1,2 or 3 dimensional joysticks (HALL effect or resistive), 2 or 3 position toggles in all configurations, rotation knobs with or without (center-) detent(s), 1 or 2 position push buttons and a dual channel NC STOP button. There are 9 analog or digital channels and 11 digital only channels available. Analog channels can be used as multi-channel to expand the number of digital channels further. Revision history Damages due to misuse of the product, operators input or omission thereof are the...

 Open the catalog to page 2
