EXPRESSO

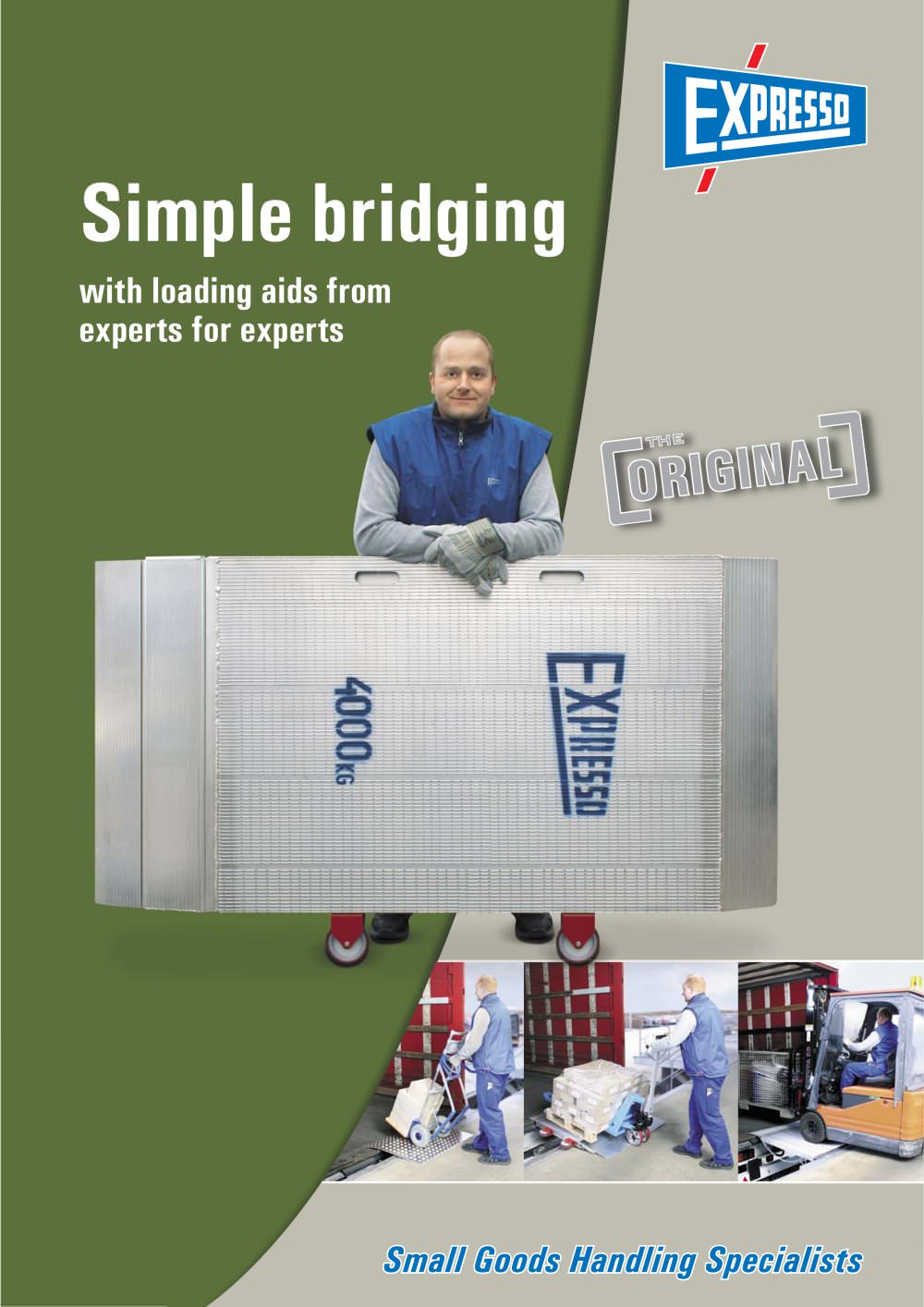

Simple Dridging Brochure 2007

Simple Dridging Brochure 2007

Product catalog summary

Overview
EXPRESSO offers a variety of aluminium dock plates and boards aimed at improving the efficiency and safety of loading and unloading processes. These products are designed to meet the growing demands for reliability and flexibility in logistics, providing solutions that bridge gaps and accommodate different loading conditions.

Key Features

Material and Design: Constructed from a special aluminium alloy, these dock plates are 50% lighter than steel while maintaining strength, ensuring easy handling and excellent corrosion resistance.
Surface Options: Available in five-bar, cross-grooved, and cross-grooved ‘Plus’ profiles, all surfaces are non-slip and adhere to high safety standards.
Guide Rails: Two types of hot-galvanized guide rails are available for attaching dock-edge levellers and boards, designed for heavy loads and long service life.

Product Variants

Foldable Loading Ramps: Mobile and foldable, these ramps come with hand-friendly grips and wheels for easy transport and positioning.
Light Dock Plates: Lightweight and practical, featuring non-slip treadplates for easy storage and transport.
Variable Dock Boards: Small, robust, and capable of handling loads up to 4000 kg, ideal for bridging small height differences.
Portable Dock Boards: Designed for flexibility, these boards can handle loads up to 5000 kg and feature dual-hinged roll-on plates for uneven surfaces.
Spring-loaded Dock Levellers: Available in stationary and movable versions, supporting loads up to 5000 kg with spring mechanisms for secure positioning.

Specifications and Recommendations

Dock boards should not be used at angles greater than 12.5% (approximately 7°).
Considerations for selecting the appropriate dock plate or board include load capacity, loading method, height difference, and bridging distance.

Specifications
The document details various sliding dock levellers with load capacities from 4,000 kg to 5,000 kg, available in different lengths and widths, with specified maximum height differences for each model. Guide-rail types F 6016516, F 6016515, and F 6038860 are mentioned for mounting the levellers.

Procedures
The operation of sliding dock levellers involves sliding them to the required position using a guide-rail, lowering them with an operating handle, and securing them automatically in a vertical parking position. A foot-operated pedal is used for controlled release.

Norms and Recommendations
Dock boards should not be used at angles greater than 12.5% (approximately 7°) to ensure safety and efficiency during loading and unloading operations.

Optional Docking Aids
Optional docking aids include bumpers with wear-resistant rubber protection and height-variable, signal red docking aids, enhancing safety and efficiency by assisting truck drivers during backing-up and providing protection against damage.

Additional Information
EXPRESSO Deutschland GmbH offers a range of transport and lifting equipment designed to bridge the gap between manual labor and forklift use, emphasizing the company's commitment to product improvement and global distribution.

Catalog excerpts

with loading aids from experts for experts >

Open the catalog to page 1

The aluminium alloy used by EXPRESSO is 50% lighter than steel, but just as strong. This results in an enormous relief for personnel when working with and handling our dock plates and dock boards. Our special aluminium alloy is the best guarantee for a long working life and features outstanding corrosion resistance. > Type 6016516 (for screw mounting) The surfaces of our aluminium dock plates & dock boards ensure non-slip traversing in unfavourable weather conditions. Whether five-bar, cross-grooved or cross-grooved בPlus, all available treadplate surface options meet the highest quality standards,...

Open the catalog to page 2

Type Load capacity kgLength mmWidth mmmax. Height difference mmHandlesWeight kg 8 772 20 4002.000800600232 8 772 26 2402.600800750240 8 772 44 3002.0002 x 40060042 x 16 Type 1067, solid rubber wheel >

Open the catalog to page 3

Type Load capacity kgLength mmWidth mmmax. Height difference mmWeight kg F 8760 6008001.00015017 F 8762 6001.00080017017 F 8761 1.0008001.00015018 F 8763 1.0001.00080017018 F 8769 1.0001.0001.00017021 F 8770 1.0001.2001.00022026 F 8764 1.0001.50080028030 F 8781 1.5008001.25015025 F 8783 1.5001.0001.25017030 >

Open the catalog to page 4

Type Load capacity kgLength mmWidth mmmax. Height difference mmWeight kg F 8771/10 2.0005001.00010012 F 8771/12 2.0005001.25010015 F 8771/15 2.0005001.50010019 F 8771/20 2.0005002.00010024 F 8771/15R 4.0005001.50010030 F 8771/20R 4.0005002.00010039 >

Open the catalog to page 5

Type Load capacity kgLength mmWidth mmmax. Height difference mmWeight kg F 2007 4.0002.00075060046 F 2010 4.0002.0001.00060061 F 2507 3.4002.50075075057 F 2510 3.4002.5001.00075075 F 3007 2.7003.00075090068 F 3010 2.7003.0001.00090089 F 3507 2.3003.5007501.05079 F 3510 2.3003.5001.0001.050104 F 4007 1.9004.0007501.20090 F 4010 1.9004.0001.0001.200118Other lengths available on request.Available with side curbs Type 9019006 on request > (for a surcharge) size="-1">

Open the catalog to page 6

Dock boards should not be used at angles of more than 12,5% (approx. 7). >

Open the catalog to page 7

Type Load capacity kgLength mmWidth mmmax. Height difference mmWeight kg F 7005 5.0001.3001.2500 16052 F 7010 5.0001.3001.5000 ֖ 16062 F 7025 4.8001.5601.2500 19061 F 7030 4.8001.5601.5000 ֖ 19072 F 7035 4.6001.7601.2500 22067 F 7040 4.6001.7601.5000 ֖ 22079 Dock boards should not be used at angles of more than 12,5% (approx. 7). F 7045 4.4001.9601.2500 Ж 24073 F 7050 4.4001.9601.5000 24086 >

Open the catalog to page 8

Type Load capacity kgLength mmWidth mmmax. Height difference mmWeight kg F 1515 4.5001.5001.5000 19091 F 1517 4.7001.5001.7500 ֖ 190104 F 1520 5.0001.5002.0000 190117 F 2015 4.0002.0001.5000 ֖ 250115 F 2017 4.2002.0001.7500 250132 F 2020 4.5002.0002.0000 ֖ 250149 F 2515 3.5002.5001.5000 310139 F 2517 3.7002.5001.7500 ֖ 310160 F 2520 4.0002.5002.0000 310181 F 3015 3.0003.0001.5000 ֖ 370163 F 3017 3.2003.0001.7500 370188 F 3020 3.5003.0002.0000 ֖ 370213 F 3515 2.5003.5001.5000 430187 F 3517 2.7003.5001.7500 ֖ 430216 F 3520 3.0003.5002.0000 430245Available with side curbs > Dock boards should not...

Open the catalog to page 9

Type Load capacity kgLength mmWidth mmmax. Height difference mmWeight kg F 6515 4.0006501.500 9034 F 6517 4.0006501.750ѱ 9040 F 6520 4.0006502.000 9046 F 7515 4.0007501.500ѱ 10038 F 7517 4.0007501.750 10045 F 7520 4.0007502.000ѱ 10051 F 9515 4.0009501.500 12546 F 9517 4.0009501.750ѱ 12554 Dock boards should not be used at angles of more than 12,5% (approx. 7). F 9520 4.0009502.000б 12562Guide-rail Type F 6016516 or Type F 6016515 (see page 2) >

Open the catalog to page 12

Type Load capacity kgLength mmWidth mmmax. Height difference mmWeight kg F 8860/6515 4.0006501.500 9046 F 8860/6517 4.5006501.750ѱ 9052 F 8860/6520 5.0006502.000 9058 F 8860/7515 4.0007501.500ѱ 10050 F 8860/7517 4.5007501.750 10057 F 8860/7520 5.0007502.000ѱ 10063 F 8860/9515 4.0009501.500 12558 F 8860/9517 4.5009501.750ѱ 12566 F 8860/9520 5.0009502.000 12574Guide-rail Dock boards should not be used at angles of more than 12,5% (approx. 7Ѱ). Type F 6038860 >

Open the catalog to page 13

It only takes a small but ingenious detail to provide an extra plus in efficiency and/or safety. In order to make loading/unloading operations even more efficient, but primarily safer, we offer a range of useful docking aids and accessories. Type F 6026500 (650 mm) , Type F 6027500 (750 mm) ,Type F 6029500 (950 mm) per meterThis docking aid consists of a full-length guide rail Type 6038860 (see page 2) for sliding dock levellers (see page 13), and an equally full-length buffer with wear-resistant rubber profile to provide backing-up protection along the entire width of the ramp. What֑s more,...

Open the catalog to page 14

They provide ideal assistance for truck drivers during backing-up to the ramp, and reduce the risk of damage. Moreover, this solution gives additional safety for trucks whose bumpers are higher than the ramp, as they ensure precise docking. Vertical ribs inside the bumpers act as shock absorbers, thus protecting the trans-port vehicles from damage. During loading/unloading, the spring-loaded docking aids move up/down. Optionally, galvanized versions are available instead of signal red. Type F 9019011 Type F 9019010 (per bumper), lacquered finish, moun- ted 250 mm above ramp height (per bumper),...

Open the catalog to page 15
