Product catalog summary

Overview: The document describes the ProMetal S-15 Digital Mold & Core Making System, a technology designed for creating complex sandcasting molds and cores directly from CAD data. This system is particularly suited for foundries and design facilities, offering a rapid and precise manufacturing process without the need for traditional hard tooling.

System Components:

S15 PS: Includes a screw conveyor system and software for processing.
S15 MX: A batch mixer with an integrated vacuum conveyor.
S15 UL: An unloading station that can serve multiple processing stations.
S15 JB: Job Box for handling molds and cores.
S15 RC: Roller Conveyor for efficient material handling.
S15 TT: Turntable for job box changeovers.

Process Description:

Loose quartz sand is mixed with an activator and fed into the machine.
A binding agent is printed onto the sand, hardening upon contact with the activator.
Molds and cores are extracted and are immediately ready for casting without post-processing.

Technical Specifications:

Build Volume: 1500 x 750 x 700 mm.
Build Speed: 14-20 mm/h, with a complete build time of approximately 48 hours for 700 mm height.
Electrical Requirements: 400 V / 3 phases.
Power Requirement: 5 kW for the process station.

Materials and Compatibility:

ProMetal materials are specifically engineered for the S15 system, including activators, binders, and casting media.
Materials are designed to ensure high-quality output and are required for warranty and service contracts.

Advantages:

High mold accuracy with no warpage or support structures needed.
Easy-to-use software with simple menu-based operation.
Capability to produce complex internal details and structures not possible with traditional methods.
Immediate availability of molds and cores for casting, reducing lead times significantly.

Contact Information: The document provides contact details for The Ex One Company in the USA, Asia, and Europe, highlighting their global presence.

Catalog excerpts

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:81.00pt "Palatino Linotype", serif; } .font3 { font:9.00pt "Times New Roman", serif; } I S-15: Digital Mold & Core Making System FSEEfbrM FAbSlCAtlON

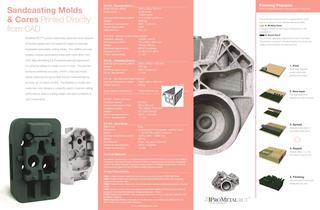

Open the catalog to page 1
