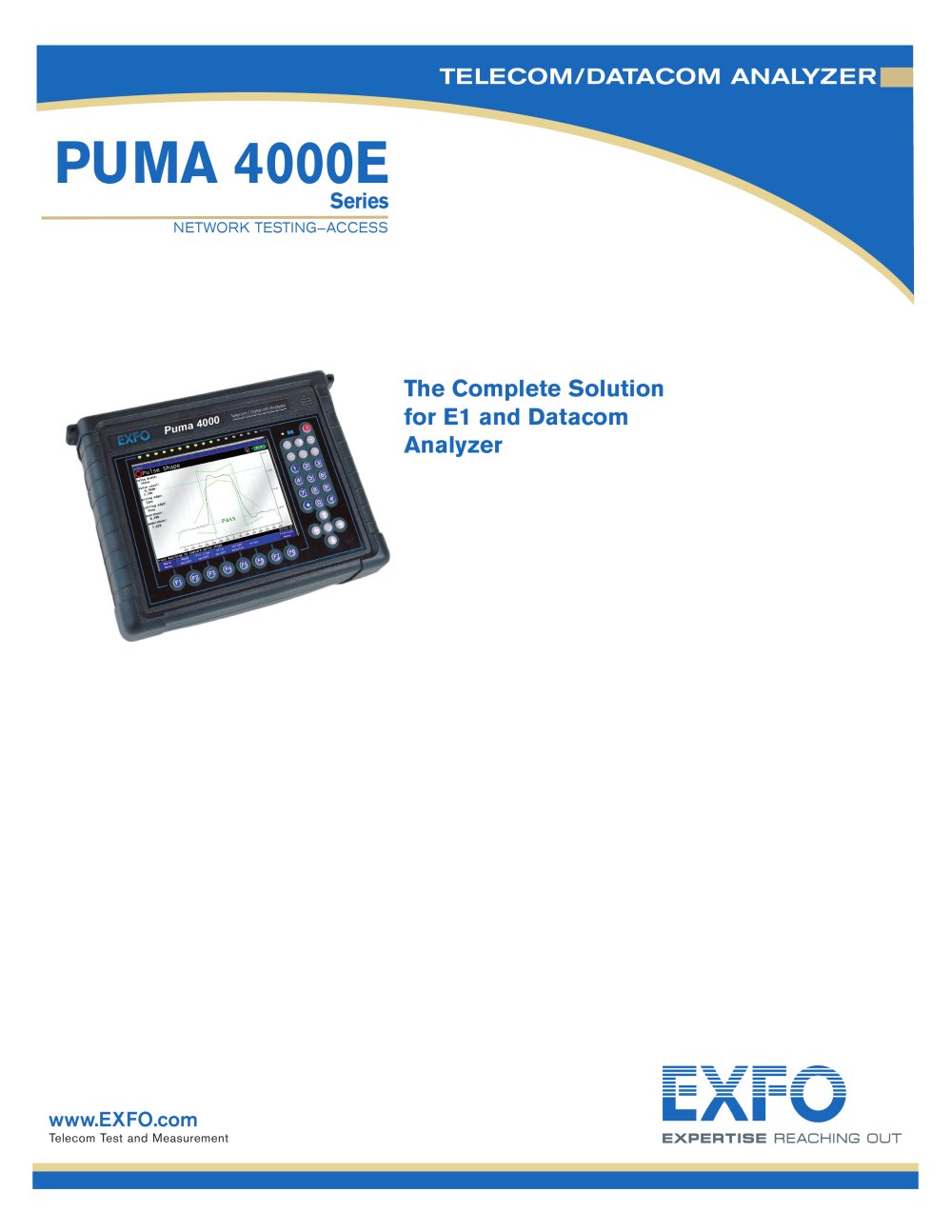

The Complete Solution for E1 and Datacom Analyzer TELECOM/DATACOM ANALYZER Telecom Test and Measurement www.EXFO.com PUMA 4000E Series NETWORK TESTING—ACCESS

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com The Puma 4000E is the ultimate field portable analyser for installing, maintaining and testing 2.048 Mbit/s PCM and data communications circuits. No other test set comes with as many features packed inside such a robust hand held package. With several models to choose from, you'll find the right Puma to meet your requirements. Applications The Puma 4000E Series will help your technicians find and fix problems fast. It can be used to test links that: Inter-connect a subscriber's PBX to the PSTN Connect mobile communications base stations...

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com E1 PCM Circuits Analysis E1 Errors and Alarms The Puma 4000E Series has a comprehensive range of features that allow E1 circuit impairments to be located and identified whether they are caused by bad connections, faulty equipment, environmental effects, or data-specific errors. The Puma's E1 capabilities are typically utilised in one of three areas: Out-of-service installation, commissioning and "bringing into service" acceptance testing — to verify the quality of the entire digital transmission path using industry standard stress test methods....

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com ISDN PRI Live Primary Rate ISDN Monitoring It’s easy to verify primary rate ISDN services with the Puma 4000E Series' ISDN monitoring option. Supported protocols include ISDNPRI, DASS II, DPNSS, V5.1, V5.2 and Q.SIG. Full decodes are given in plain English and hex. The ISDN call statistics feature enables summary and statistical information to be extracted from the built-in ISDN monitoring logs. The call list screen shows the numbers for both calling and called parties involved in the connections, and both the inbound and outbound signaling...

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com G.821, G.826, and M.2100 Results The Puma 4000E Series' large LCD display allows all relevant BERT results including G.821, G.826, M.2100 and other measurements to be easily evaluated. Results can be stored, recalled and printed. Discover Timing Problems The Puma 4000E Series has a number of features that allow technicians to identify network timing and clock problems. Slips Analysis Pattern Slips — When bit errors occur on a telecom or datacom system they can be due to interference, which causes bits to be corrupted. Alternatively, they...

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com Jitter Measurement The jitter measurement option is used for troubleshooting E1 links for timing and clock problems that may cause errors to occur. The Puma's display graphically shows the instantaneous amount of jitter over the preceding 60 seconds. From these measurements, histograms are built. Jitter measurements can be made while the link is live and in service by connecting to monitoring points on E1 equipment. Alternately, the Puma can terminate the line and measure the amount of jitter in an out-of-service fashion. Jitter Generation...

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com Datacom Analysis Verifying End-to-End Transmission The data communications interfaces on the Puma 4000E series are menu-selectable as either DTE or DCE. The extensive range of patterns offered by the Puma 4000E series allows the network to work with existing test instruments. Using a Puma at each end of the circuit allows technicians to verify performance in both directions. The Puma 4000 records all relevant BERT results including G.821, G.826, and M.2100. Loopback Testing Loopback testing saves time and money. It enables installation and...

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com Mux/Demux Testing The Mux/Demux test mode allows in-service or out of service verification of primary multiplex or demulitplex functions to verify single or multiple time slot mappings of signals from tributary to aggregate. For Mux testing, a 64 kbit/s or n x 64 kbit/s BERT pattern signal can be generated from the sub E1 interface eg V.35 or X.21 and verified on the aggregate balanced or unbalanced 2.048 Mbit/s E1 interface, or visa versa for Demux testing. HDSL Circuit Testing These days, E1 services are often delivered using the more...

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com Feature Rich and Friendly Every aspect of the Puma has been designed with intelligence. The optional, vivid full color or standard mono displays have exceptional resolution. Once the test mode is selected, the Puma reserves the upper portion of the display to provide labels for tri-colour LEDs that indicate the interface status. For example, if V.35 is selected, the display and LEDs will label and indicate the status of the V.35 interface pins irregardless of the current menu screen. The Puma intelligently uses a set of icons to let the...

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com Puma Services Lifetime Software Updates Specifications within the telecommunications industry are constantly changing. EXFO strives to ensure our software meets the current specifications and recommendations and offers free lifetime software updates. An update is a software enhancement, amendment or change that improves existing functionality. Please visit our website for more details. Software upgrades where new functionality is made available are chargeable. Please refer to your local representative or service center for details. Technical...

Puma 4000E Series Telecom/Datacom Analyzer www.EXFO.com SPECIFICATIONS 2 E1 interfaces 75-ohm (BNC)& 120-ohm (CF) transmitters & receivers 2 E1 interfaces 75-ohm (BNC)& 120-ohm (RJ45) transmitters and receivers G.703 Co-directional test interface 64 kbit/s Contra-directional testing External clock G.703 - 2 Mbit/s unframed testing G.704 - 2.048 Mbit/s framed PCM-30/31/30C/31C Framing analysis m and n x 64 kbit/s testing E1 line monitor with channel activity map Alarm monitoring Drop and insert BERT Bi-directional drop and insert CAS generation and monitoring Internal clock, recovered clock Auto-configure...
