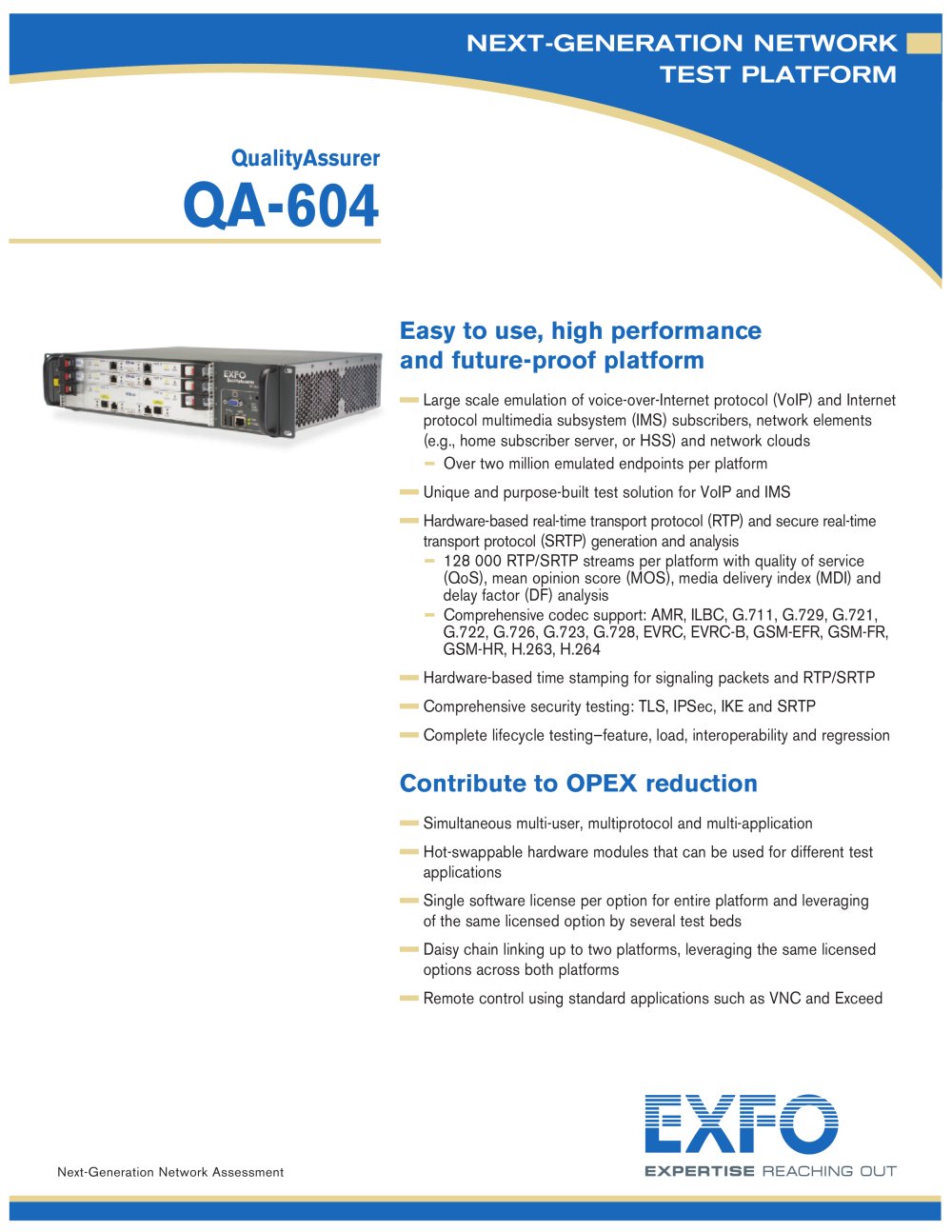

Next-Generation Network Assessment QualityAssurer QA-604 Easy to use, high performance and future-proof platform Large scale emulation of voice-over-Internet protocol (VoIP) and Internet protocol multimedia subsystem (IMS) subscribers, network elements (e.g., home subscriber server, or HSS) and network clouds Over two million emulated endpoints per platform Unique and purpose-built test solution for VoIP and IMS Hardware-based real-time transport protocol (RTP) and secure real-time transport protocol (SRTP) generation and analysis 128 000 RTP/SRTP streams per platform with quality of service (QoS), mean opinion score (MOS), media delivery index (MDI) and delay factor (DF) analysis Comprehensive codec support: AMR, ILBC, G.711, G.729, G.721, G.722, G.726, G.723, G.728, EVRC, EVRC-B, GSM-EFR, GSM-FR, GSM-HR, H.263, H.264 Hardware-based time stamping for signaling packets and RTP/SRTP Comprehensive security testing: TLS, IPSec, IKE and SRTP Complete lifecycle testing—feature, load, interoperability and regression Contribute to OPEX reduction Simultaneous multi-user, multiprotocol and multi-application Hot-swappable hardware modules that can be used for different test applications Single software license per option for entire platform and leveraging of the same licensed option by several test beds Daisy chain linking up to two platforms, leveraging the same licensed options across both platforms Remote control using standard applications such as VNC and Exceed Next-Generation Network Test Platform

QualityAssurer QA-604 Next-Generation Network Test Platform The Industry’s Most Powerful and Flexible Platform EXFO’s QualityAssurer QA-604 is the latest, most powerful compact test platform for today’s VoIP and IMS network testing and tomorrow’s next-generation technology and applications. This carrier-class purpose-built platform, which can be rack-mounted or used as a desktop, provides unmatched scalability and performance, allowing customers to leverage the strengths of a high performance platform at a fraction of the cost of alternative off-the-shelf server solutions. Building on EXFO’s...

QualityAssurer QA-604 Next-Generation Network Test Platform Best-In-Class and Unprecedented Ease-of-Use Combined with the SCM-GbE, the MCM-GbE and EXFO’s endpoint emulation tool (sipFlex Test Suite) and HSS emulator (hssFlex Test Suite), the QualityAssurer QA-604 provides an easy-to-use, yet powerful test bed. This solution surrounds the IMS core to perform comprehensive device and end-to-end testing, and characterizes the full lifecycle—all in a single application. Using the flexible message/signaling flow editor and the various pre-built flows (IMS, Class V, Floods, etc.), network equipment...

QualityAssurer QA-604 Next-Generation Network Test Platform SIP Signaling and Media Lite Package (TKS-SIP-Media-Lite) This package is aimed at customers that need low-scale SIP signaling and media testing capabilities. It includes: SIP Signaling and Media Medium Package (TKS-SIP-Media-Medium) This package is aimed at customers that need medium SIP signaling and media testing capabilities. It includes: QualityAssurer QA-604 platform MCM-GbE-Lite module sipFlex test suite (supports 10 000 emulated endpoint and 2500 RTP streams per port) a QualityAssurer QA-604 platform MCM-GbE-Lite module sipFlex...

QualityAssurer QA-604 Next-Generation Network Test Platform ORDERING INFORMATION Specifications Platform Four-slot rack-mounted or table desktop Hot-swappable hardware modules Up to four SCM-GbE interfaces or two MCM-GbE (or MCM-GbE-Lite) interfaces a Performance and capacity per platform 2 048 000 emulated SIP endpoints (per fully loaded four-slot platform with sipFlex) 2 048 000 subscribers support (per fully loaded four-slot platform with hssFlex) 14 400 SIP registrations per second 3400 SIP calls per second 34 400 SIP message floods per second 128 000 RTP and 128 000 RTCP streams (per fully...

QualityAssurer QA-604 Next-Generation Network Test Platform SPQA604.3AN ©2010 EXFO Inc. All rights reserved. 2008 Printed in Canada 10/09 Complementary Products SCM Gigabit Ethernet Interface The Signaling Centric Module Gigabit Ethernet (SCM-GbE) module is designed to facilitate high-performance signaling test capabilities. It is equipped with processor-accelerated support for security protocols (TLS, IPSec and IKE) and its custom-designed FPGA enables accurate time-stamping of signaling messages with a resolution of 10 nanoseconds, allowing network performance characterization under various...
