IQS-9100 Optical Switch

IQS-9100 Optical Switch

Product catalog summary

Overview
The IQS-9100 Optical Switch series by EXFO is designed for high-performance fiber-to-fiber switching, suitable for telecom test and measurement applications. It offers a variety of configurations including 1x2, 1x4, 1x8, 1x12, 1x16, 1x24, 1x32, 2x2, and 2x4, available in both singlemode and multimode versions.

IQS-500 Intelligent Test System
The IQS-500 system provides a flexible platform for optical test and measurement, supporting up to 100 modules. It is based on standard industrial PC architecture and is backward-compatible with previous EXFO modules.

Key Features

Reduced instrument requirements and manual intervention
Increased flexibility and efficiency
Precise optical crossover switching in 2x2 configurations
1xN configurations for multiple-component or ribbon-fiber testing

Measurement Applications

Multiple-component testing
Bidirectional and remote testing
Signal routing and multichannel monitoring
Complex automated and ribbon-fiber testing

Specifications

Insertion loss: Typical 0.5 dB, Maximum 1.5 dB
Backreflection: Maximum –55 dB for singlemode, –24 dB for multimode
Repeatability: Maximum ± 0.01 dB
Operating wavelengths: 1290 to 1570 nm for singlemode, 780 to 1350 nm for multimode
Polarization-dependent loss: Typical ≤ 0.05 dB
Maximum input power: +24 dBm
Switching time: 25 ms
Crosstalk: –80 dB

General Specifications

Switch life: 10 million cycles minimum
Operating temperature: 10 °C to 40 °C
Storage temperature: –20 °C to 60 °C
Relative humidity: Maximum 80% non-condensing at 40 °C

Ordering Information
Configurations are available with various channel options and fiber types. Low-PDL options are available for singlemode units.

Compliance and Certification
The device complies with FCC rules and is ISO 9001 certified. It adheres to the European Union’s WEEE directive.

For more information, visit EXFO's website at www.EXFO.com.

Catalog excerpts

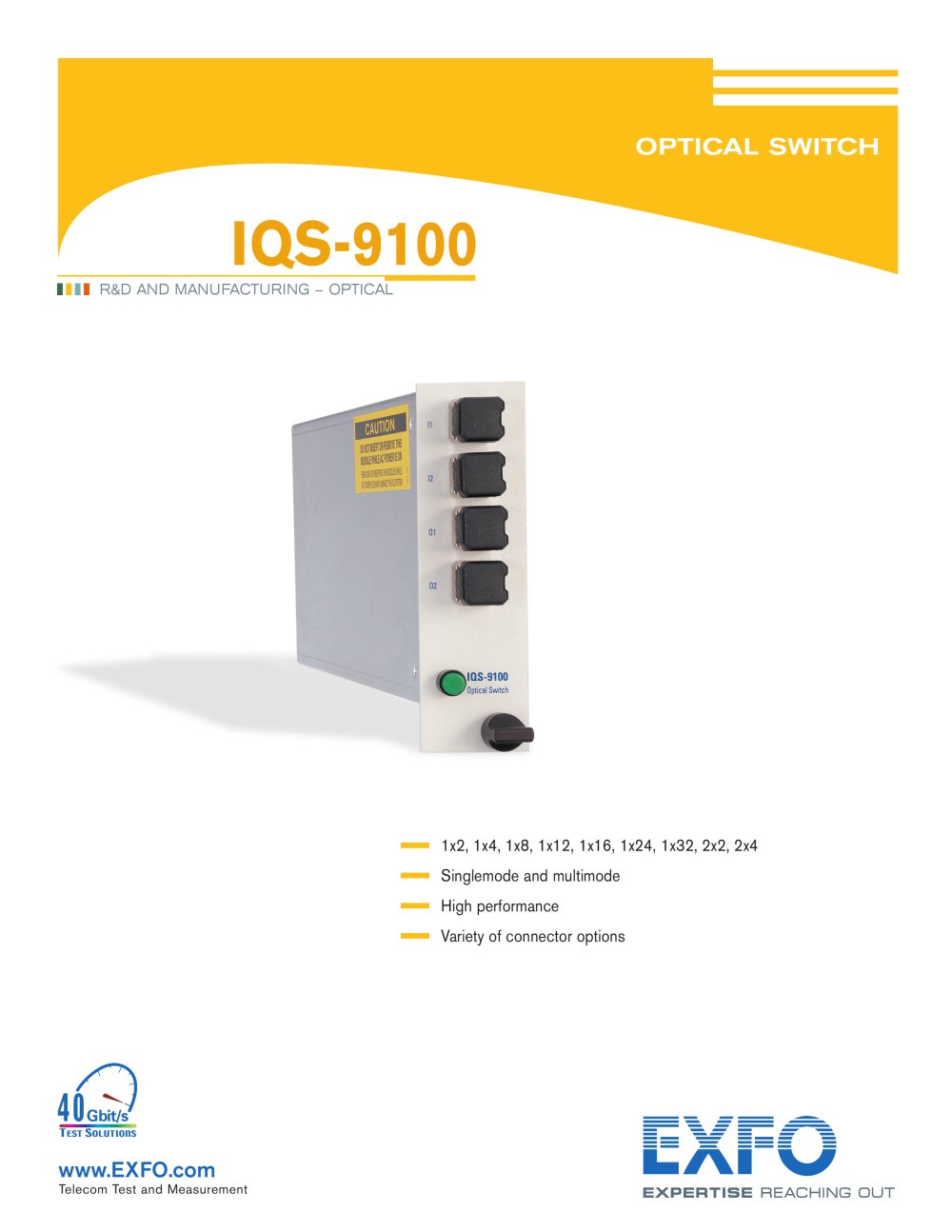

IQS-9100 R&D AND MANUFACTURING – OPTICAL OPTICAL SWITCH Telecom Test and Measurement www.EXFO.com 1x2, 1x4, 1x8, 1x12, 1x16, 1x24, 1x32, 2x2, 2x4 Singlemode and multimode High performance Variety of connector options 40Gbit/s TEST SOLUTIONS

Open the catalog to page 1

The Optical Switching Solution The IQS-9100 Optical Switch series provides highly accurate and repeatable fiber-to-fiber switching. As part of the IQS-500 Intelligent Test System, the IQS-9100 Optical Switch offers a choice of 1x2, 1x4, 1x8, 1x12, 1x16, 1x24, 1x32, 2x2 and 2x4 modules. Designed for minimal reflectance, the switches integrate precision optical components into a compact modular package. Both singlemode and multimode versions are available and offer a solution for all your optical switching needs. A variety of switch configurations are available for both singlemode and multimode...

Open the catalog to page 2

www.EXFO.com User-Friendly Interface IQS-9100 Optical Switch SPECIFICATIONS a Model 1x2 1x4, 1x8, 1x12, 1x16, 1x24, 1x32, 2x4 f 2x2 Mode Singlemode Multimode Singlemode Multimode Singlemode Multimode Insertion loss b (dB) typical 0.5 0.5 0.7 0.5 0.8 0.5 maximum 1.5 1.5 1.7 1.7 1.5 1.5 Backreflection c (dB) maximum –55 –24 –55 –24 –55 –24 Repeatability d (dB) maximum ± 0.01 ± 0.01 ± 0.03 ± 0.03 ± 0.01 ± 0.01 Operating wavelengths (nm) 1290 to 1570 780 to 1350 1290 to 1650 780 to 1350 1290 to 1570 780 to 1350 Polarization-dependent loss e (dB) typical 0.05 - 0.05 - 0.05 - standard maximum 0.10...

Open the catalog to page 3

SPIQS9100.4AN © 2006 EXFO Electro-Optical Engineering Inc. All rights reserved. Printed in Canada 06/09 ORDERING INFORMATION Switch configuration 01 = 1xN 02 = 2xN c Channel configuration 02 = 2 channels 04 = 4 channels 08 = 8 channels 12 = 12 channels 16 = 16 channels 24 = 24 channels 32 = 32 channels Fiber B = 9/125 ìm singlemode C = 50/125 ìm multimode D = 62.5/125 ìm multimode Low-PDL 00 = No Low-PDL requested LP = Low-PDL g IQS-9100-XX-XX-X-XX-XX EXFO Corporate Headquarters > 400 Godin Avenue, Quebec City (Quebec) G1M 2K2 CANADA Tel.: 1 418 683-0211 Fax: 1 418 683-2170 [email protected] Toll-free:...

Open the catalog to page 4
