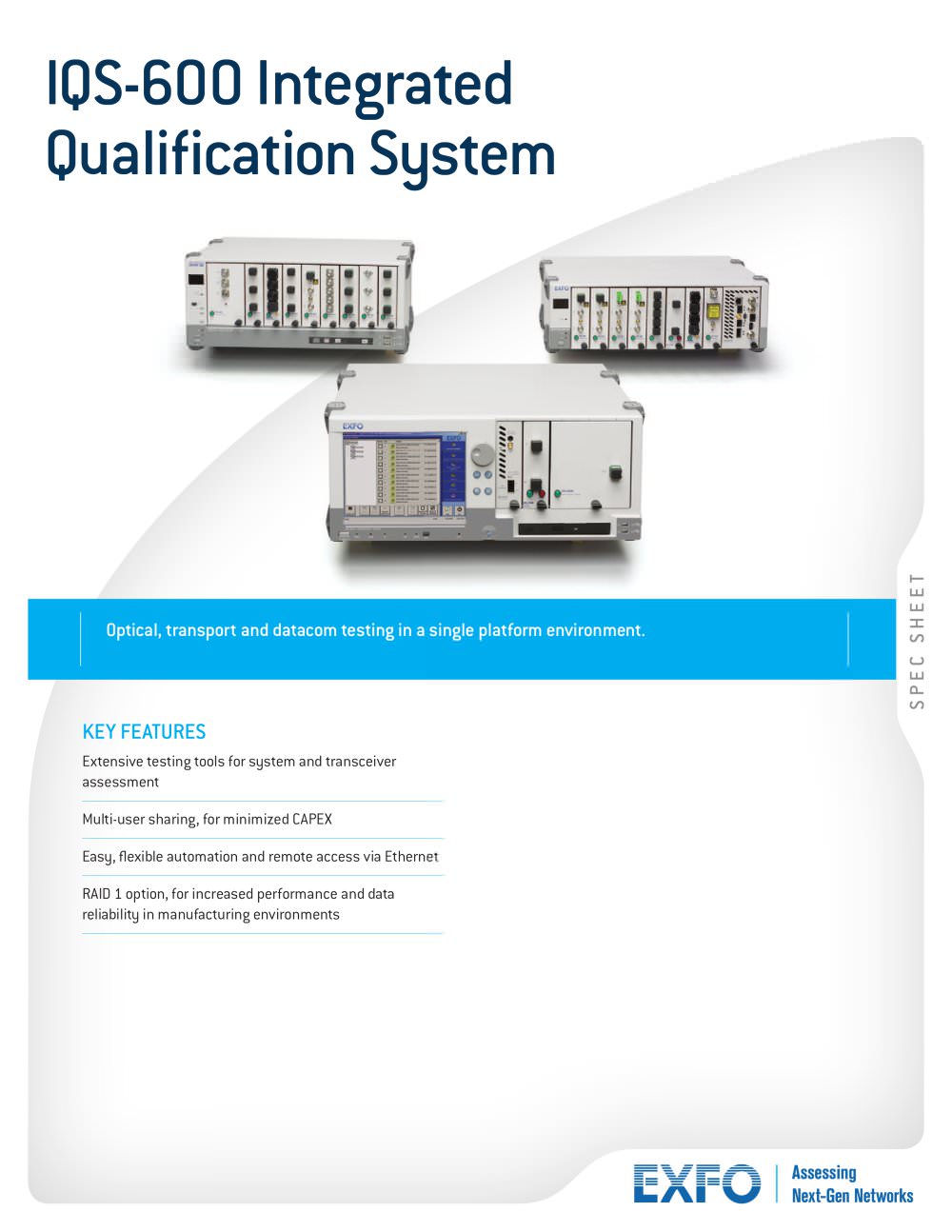

Optical, transport and datacom testing in a single platform environment. Key Features Extensive testing tools for system and transceiver assessment Multi-user sharing, for minimized CAPEX Easy, exible automation and remote access via Ethernet RAID 1 option, for increased performance and data reliability in manufacturing environments spec sheet iQs-600 integrated Qualication system

IQS-600 Integrated Qualification System centraliZe yOur test OperatiOns At each step of the design and manufacturing process, systems and components must be tested thoroughly and efficiently. Thoroughly as in choosing the right set of test modules for in-depth characterization and truly accurate results. Efficiently as in integrating optical, transport and datacom test applications into a single platform, speeding up both setup and actual testing. A true single-box workstation, EXFO’s IQS-600 platform delivers all this, plus a number of connectivity and remote control features. Thanks to its...

IQS-600 Integrated Qualification System three platFOrm mOdels, One testing enVirOnment The IQS-600 platform comes in three models, the IQS-610P-HS and IQS-605P-HS controller units, which feature a dual-core processor, Ethernet ports and optional remote GPIB control, and the IQS-610E-HS expansion unit, which allows you to integrate up to 90 additional test modules into your system. Now supporting EXFO’s Bus III, the new -HS models allow faster communication with modules. As a result, firmware upgrade time is greatly reduced. › Houses up to 10 test modules › Ideal for high-volume manufacturing...

IQS-600 Integrated Qualification System sOFtWare user-Friendliness and time-saVing eFFiciency Multi-user sharing Thanks to Ethernet-based sharing capabilities, the IQS-600 enables multiple users to launch test applications, minimizing both test equipment footprint and CAPEX. Central Database Automation and remote access Easily automate your test system, and boost speed and performance using LabVIEW 8 drivers available for all IQS modules, or TCL libraries available for transport and datacom modules. Plus, access your IQS-600 platform remotely—from anywhere in the world— using VNC, Remote Desktop...

IQS-600 Integrated Qualification System SYSTEMS AND TRANSCEIVERS CALIBRATION s, S OA Tx/ s, R Rx am an De Me vic tro es /Et he rne SO tD NE evi T/S ces DH Mu Tra ltis nsp erv ort ice De PD Tra vic H/ nsp es DS ort n De E th vic ern es etove 40/ r-T 100 1/E Gig 1 EM 40/ etr 100 o/L Gig on EC g -H XL FP AU au lN I/C Ch etw ara AU Lay ork cte IC ha er 1 riz s rac ati PC on ter SC iza Lay har tio er act n 2/3 eri zat Eth OT ion ern U3 and et /O Tes TU Va tin 4T lida Ca g est lib tio ing rat n ion (as pe r IT U-T G.7 09) Optical, Transport and Datacom Testing Applications—Summary Chart Optical, Transport...

IQS-600 Integrated Qualification System a test system yOu can rely On With the IQS-600 platform, integration doesn’t stop at test applications. It also means packing everything you need to get through your test cycles more easily, day in and day out. Consequently, the IQS-600 was designed to bring user-friendliness, reliability and flexibility to the next level. User-friendliness Based on the Windows OS, the IQS-600 offers truly intuitive graphical user interfaces (GUI) that simplify module control and system status assessment. Its open architecture allows you to install any Windows-compatible...

IQS-600 Integrated Qualification System SPECIFICATIONS CPU Industrial motherboard, dual-core processor, 2 GB RAM Dual 10/100/1000 Base-T Ethernet Serial RS-232 Parallel port External monitor port Six USB ports External keyboard/mouse EXFO bus III output Internal 160 GB hard drive (minimum) Internal DVD+RW Relative humidity Temperature Operating Storage Relative humidity Operating system EXFO software Local control Temperature Operating Storage ActiveX/COM library using SCPI commands a LabVIEW drivers using ActiveX/COM library Remote control ActiveX/COM library using SCPI commands a LabVIEW drivers...

IQS-600 Integrated Qualification System ORDERING INFORMATION IQS-605P-HS-XX-XX Hard disk 00 = Standard hard disk RHD = RAID 1 second hard disk GPIB card 00 = Without GPIB card I3 = GPIB master/slave card IQS-610P-HS-XX-XX Hard disk 00 = Standard hard disk RHD = RAID 1 second hard disk GPIB card 00 = Without GPIB card I3 = GPIB master/slave card IQS-610E-HS-XX EXFO BUSII cable E0 = 0.3 m/1 ft cable E3 = 0.8 m/2.5 ft cable E4 = 1.5 m/5 ft cable Example: IQS-610E-HS-E4 EXFO Headquarters Tel.: +1 418 683-0211 | Toll-free: +1 800 663-3936 (USA and Canada) | Fax: +1 418 683-2170 | [email protected] | www.EXFO.com...
