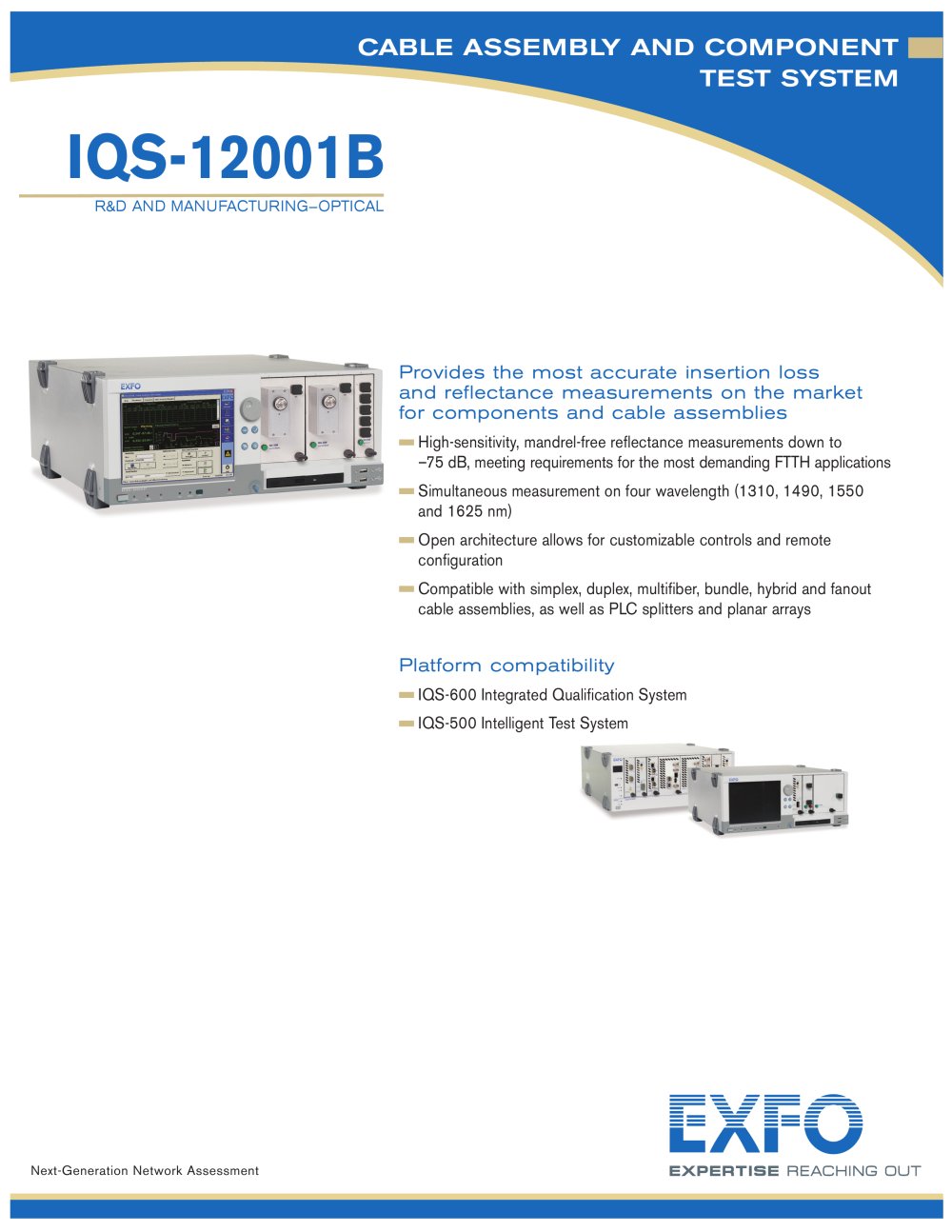

Next-Generation Network Assessment CABLE ASSEMBLY AND COMPONENT TEST SYSTEM IQS-12001B R&D AND MANUFACTURING—OPTICAL Provides the most accurate insertion loss and reflectance measurements on the market for components and cable assemblies High-sensitivity, mandrel-free reflectance measurements down to –75 dB, meeting requirements for the most demanding FTTH applications Simultaneous measurement on four wavelength (1310, 1490, 1550 and 1625 nm) Open architecture allows for customizable controls and remote configuration Compatible with simplex, duplex, multifiber, bundle, hybrid and fanout cable assemblies, as well as PLC splitters and planar arrays Platform compatibility IQS-600 Integrated Qualification System IQS-500 Intelligent Test System

IQS-12001B Cable Assembly and Component Test System Fully Integrated Cable Assembly and Component Testing Maximize production throughput for insertion loss (IL) and mandrel-free reflection testing for all types of fiber-optic interconnect cable and component assemblies with the IQS-12001B Cable Assembly and Component Test System. This fast and accurate system comes with the most complete single-software package available, delivering truly integrated testing for simplex, duplex, multifiber, hybrid and fanout fiber assemblies, as well as for components such as PLC splitters used in FTTx...

IQS-12001B Cable Assembly and Component Test System System overview The IQS-12001B system features a loss test module (IQS-3250/3250B), optional optical switches and a software package that integrates and manages test sequences, the database and its results, as well as the peripherals such as bar code reader, label printers and foot switches used in production environments. Loss and reflectance measurements The IQS-3250/3250B Loss Test Module is based on advanced time-domain technology with a wide-aperture integrating cavity detector. The module’s internal monitoring channel ensures IL...

IQS-12001B Cable Assembly and Component Test System User-Friendly Turnkey Software Comprehensive software On-screen instructions with graphical display of the connections IL and reflectance live monitoring in the main window Display of the last 100 results in a real-time chart Post-processing made easy Integrated, centralized database to save and manage results, and to generate reports and statistics Direct integration with bar code reader, foot switch and label printers Label printing utility, allowing users to design their own labels Customize it to fit your needs The IQS-12001B comes...

Component testing (singlemode only, through DLL interfaces) One sequence for insertion loss, reflectance, optical return loss and fiber length measurements for all wavelengths Mandrel-free measurement with one-meter resolution IQS-12001B Cable Assembly and Component Test System Best Performance in the Industry Test faster, increase your productivity Cable assembly testing Insertion loss and reflectance measurements on four wavelengths in ten seconds flat Mandrel-free reflectance measurement Capability to measure singlemode reflectance (discreet reflection) down to –75 dB, meeting the...

IQS-12001B Cable Assembly and Component Test System Configure Your System for Optimal Performance The IQS-12001B Cable Assembly Test System is available in two configurations: Standard and High-Throughput. The Standard configuration includes only the minimal hardware necessary to get the job done. It keeps costs in check, while providing fast and accurate measurements in a user-friendly format. The High-Throughput (HT) configuration minimizes the handling required, reducing the overall testing time and increasing the productivity. This mode of operation is particularly well-suited to hybrid...

IQS-12001B Cable Assembly and Component Test System SPECIFICATIONS a Singlemode b (1310/1550 nm) Singlemode b (1490/1625 nm) Multimode c Testing time d (s) < 6 < 6 < 6 Cable assembly length (m) 1.8 to 1500 1.8 to 1500 1.8 to 500 Insertion loss measurement uncertainty ± 0.03 e ± 0.03 e ± 0.07 f Insertion loss measurement stability g (dB) ± 0.004 ± 0.004 ± 0.015 Reflectance range (dB) -30 to -75 -30 to -75 -10 to -50 Reflectance measurement uncertainty (dB) ±1 (-30 to -70) ±1 (-30 to -70) ± 1.2 (-10 to –30) ± 1.5 (-30 to –40) ±2.2/±1.7 (-70 to -75) ±1.7 (-70 to -75) ± 1.6 (-40 to –43) ± 2.9...

IQS-12001B Cable Assembly and Component Test System SPIQS12001B.9AN © 2009 EXFO Electro-Optical Engineering Inc. All rights reserved. Printed in Canada 09/10 ORDERING INFORMATION Model IQS-12001B-05-S5-B = IQS-605P, 1310/1550 nm, IL/RL, optional switch 9/125 ìm, APC connector IQS-12001B-05-S6-B = IQS-605P, 1490/1625 nm, IL/RL, optional switch 9/125 ìm, APC connector IQS-12001B-05-S7-B = IQS-605P, 1490 nm, IL/RL, optional switch 9/125 ìm, APC connector IQS-12001B-05-S8-B = IQS-605P, 1310/1550 and 1490/1625 nm, IL/RL with 1x2 optical switch, optional switch 9/125 ìm, APC connector...
