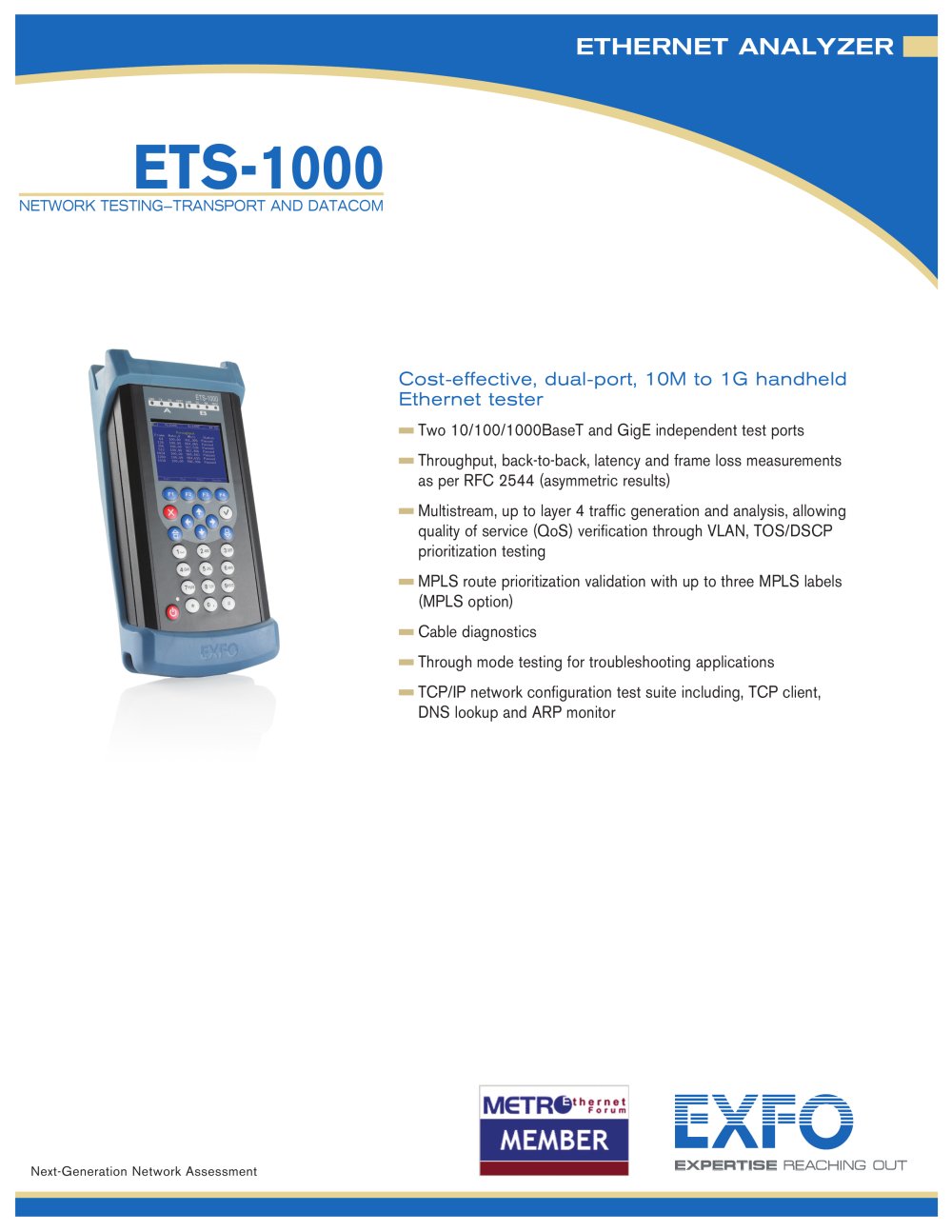

Next-Generation Network Assessment EXPERTISE REACHING OUT ETHERNET ANALYZER ETS-1000 NETWORK TESTING—TRANSPORT AND DATACOM Cost-effective, dual-port, 10M to 1G handheld Ethernet tester Two 10/100/1000BaseT and GigE independent test ports Throughput, back-to-back, latency and frame loss measurements as per RFC 2544 (asymmetric results) Multistream, up to layer 4 traffic generation and analysis, allowing quality of service (QoS) verification through VLAN, TOS/DSCP prioritization testing MPLS route prioritization validation with up to three MPLS labels (MPLS option) Cable diagnostics Through mode testing for troubleshooting applications TCP/IP network configuration test suite including, TCP client, DNS lookup and ARP monitor

ETS-1000 Ethernet Analyzer Assessing Carrier Ethernet Services EXFO’s ETS-1000 is a cost-effective handheld Ethernet analyzer enabling service providers to turn-up and install next-generation carrier Ethernet services. Its compact size combined with a complete feature set makes it the perfect tool for field technicians to reliably validate service-level agreements (SLA) of Ethernet-based services running over metro Ethernet networks. The ETS-1000 has two completely independent test ports that support the following interfaces: 10/100/1000Base-T, 1000Base-SX, 1000Base-LX and 1000Base-ZX. Using...

ETS-1000 Ethernet Analyzer Flexible Testing Configurations With its default two-port configuration, the ETS-1000 offers a variety of testing configurations, providing complete flexibility to the user. The automatic remote loopback also considerably simplifies and accelerates the test setup. Testing Applications Ethernet has become the technology of choice to deliver next-generation telecommunications services for business, mobile backhaul and wholesale services. Proper assessment of these services is essential to ensure quality and performance. The ETS-1000 supports all key testing applications...

ETS-1000 Ethernet Analyzer QoS Assessment—Multistream Testing Ethernet circuits including Ethernet-based mobile backhaul need to support new and more advanced services. Networks now carry a variety of different applications such as voice, e-mail, video on demand and online gaming. Due to the nature of these different services, they will be affected differently by network characteristics such as latency, frame delay variation (packet jitter) and frame loss. To ensure QoS, service providers must properly configure their networks to define how the traffic will be prioritized. The ETS-1000 can assess...

ETS-1000 Ethernet Analyzer Specifications Ethernet Interfaces OPTICAL INTERFACES Optical interfaces Available wavelengths (nm) 1000Base-SX 1000Base-LX 1000Base-ZX Wavelength (nm) 850 1310 1550 Transmission level (dBm) –9 to –3 –9.5 to –3 0 to +5 Reception level sensitivity (dBm) –20 –22 –22 Maximum reach 550 m 10 km 80 km Transmission bit rate (Gbit/s) 1.25 1.25 1.25 Reception bit rate (Gbit/s) 1.25 1.25 1.25 Transmission operational wavelength range (nm) 830 to 860 1270 to 1360 1540 to 1570 Maximum reception before damage (dBm) +6 +6 +6 Measurement accuracy Frequency (ppm) ±4.6 ±4.6 ±4.6 Optical...

ETS-1000 Ethernet Analyzer Ethernet Functional Specifications TESTING RFC 2544 Throughput, back-to-back, frame loss and latency measurements according to RFC 2544 (option for asymmetrical results). Frame size: RFC-defined sizes, user-configurable. BERT Layer 1 to layer 4 with or without VLAN and MPLS. Patterns (BERT) CRTP, PRBS 2E11-1, PRBS 2E15-1, PRBS 2E20-1, PRBS 2E23-1, PRBS 2E29-1, PRBS 2E31-1, and user patterns. Error measurement Jabber/giant, runt, CRC. Error measurement (BERT) Bit error, bit mismatch 0, bit mismatch 1. Multistream generation and analysis Capability to transmit and analyze...

ETS-1000 Ethernet Analyzer ORDERING INFORMATION Software options ETMPLS = MPLS testing ETAT = RFC 2544 asymmetric testing Example: ETS-1000-ETMPLS ETS-1000-XX

ETS-1000 Ethernet Analyzer EXPERTISE 2008 REACHING OUT EXFO is certified ISO 9001 and attests to the quality of these products. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. EXFO has made every effort to ensure that the information contained in this specification sheet is accurate. However, we accept no responsibility for any errors or omissions, and we reserve the right...
