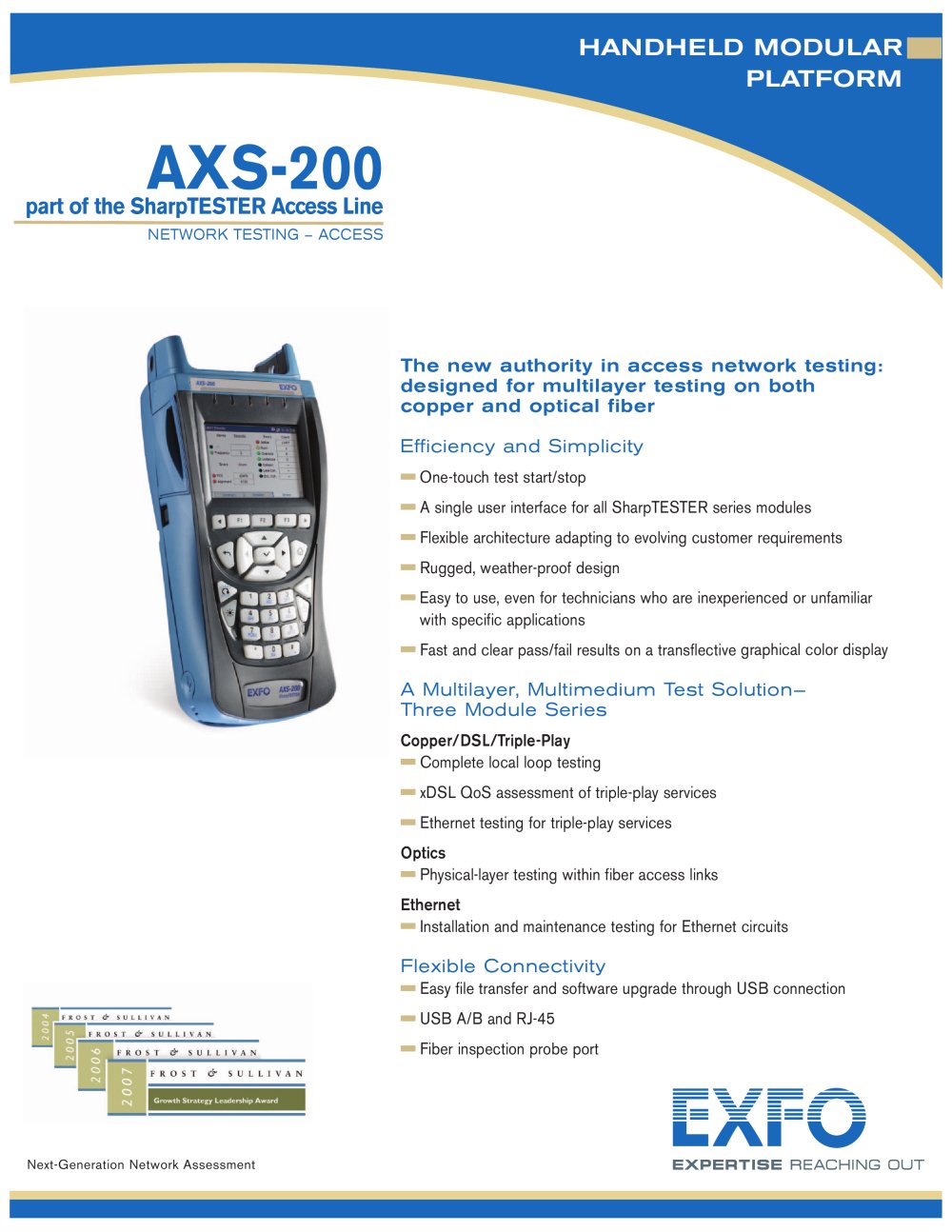

AXS-200 Handheld Modular Platform

AXS-200 Handheld Modular Platform

Product catalog summary

Overview: The AXS-200 is part of the SharpTESTER Access Line, designed for multilayer testing on both copper and optical fiber networks. It emphasizes efficiency and simplicity with features like one-touch test start/stop and a single user interface for all SharpTESTER modules. The device is rugged, weather-proof, and user-friendly, even for inexperienced technicians.

Key Features:

Multilayer, multimedium test solution with three module series: Copper/DSL/Triple-Play, Optics, and Ethernet.
Flexible architecture to adapt to evolving customer requirements.
Fast and clear pass/fail results displayed on a transflective graphical color display.

Testing Capabilities:

Copper/DSL/Triple-Play: Complete local loop testing, xDSL QoS assessment, and Ethernet testing for triple-play services.
Optics: Physical-layer testing within fiber access links.
Ethernet: Installation and maintenance testing for Ethernet circuits.

Connectivity and Compliance:

Easy file transfer and software upgrades via USB connection.
Complies with Part 15 of the FCC Rules and the European Union’s WEEE directive.

Specifications:

Operating temperature: -10 °C to 50 °C (14 °F to 122 °F).
Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F).
Size: 241 mm x 109 mm x 38 mm (9 1/2 in x 4 5/16 in x 1 1/2 in).
Weight: 0.47 kg (1.0 lb).
Display: 89 mm (3.5 in) LCD, 320 x 240, QVGA, advanced TFT.
Interfaces: USB host/client, RJ-45 Ethernet 10/100, video fiber inspection probe port.
Storage: Internal 512 MB; USB options of 1 GB, 2 GB, and more.
Battery: Smart rechargeable Li-Ion.
Power supply: 15-24 VDC, 40 W minimum.

Accessories and Ordering Information:

Soft, semi-rigid, and rigid carrying cases available.
RJ-45 LAN cable and USB microdrive options.
Probe options include inspection probes with different magnifications.

Contact Information: For more details, visit the EXFO website or contact their offices in Canada, USA, Singapore, China, or England.
