Overview

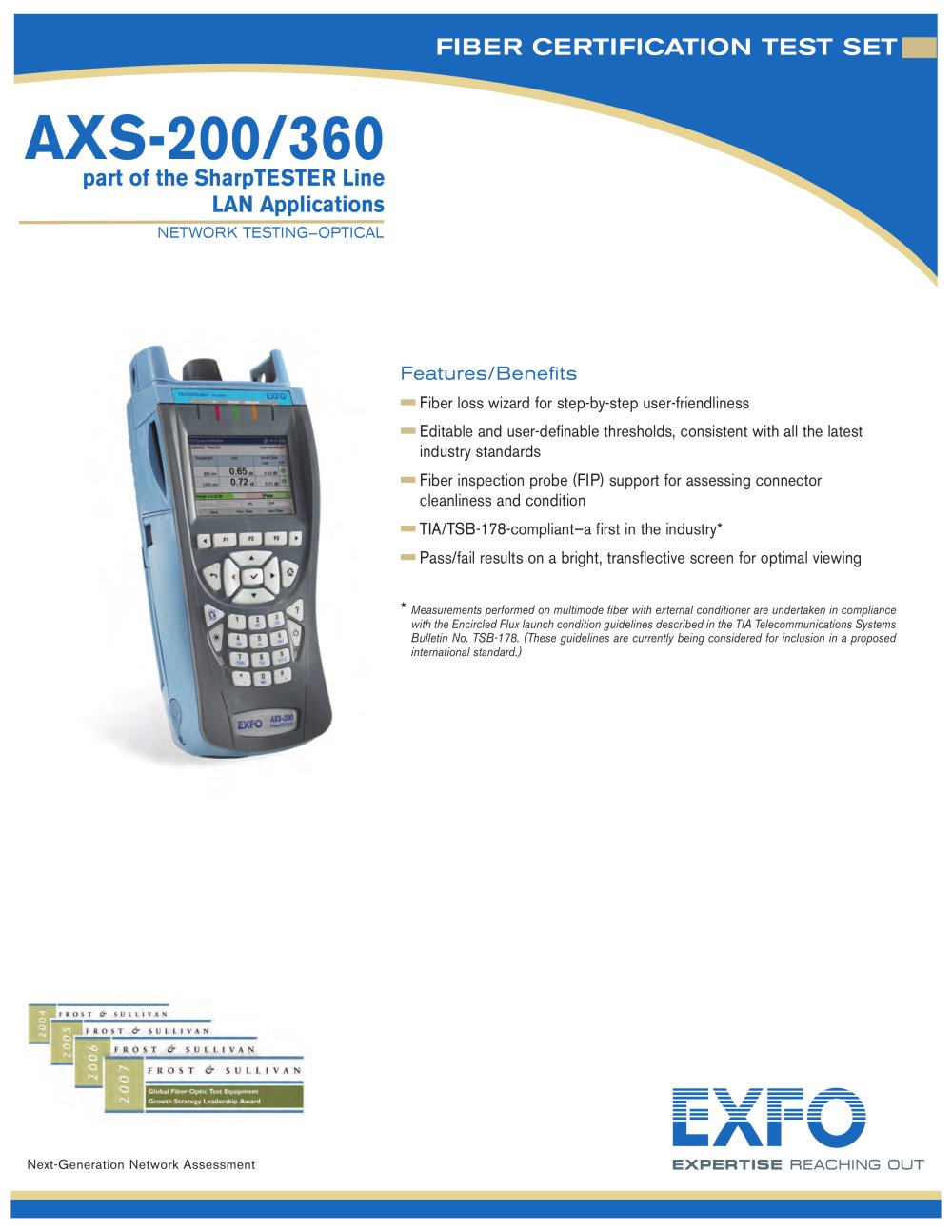

The AXS-200/360 Fiber Certification Test Set is designed for enterprise network installers and contractors to ensure fiber networks meet industry standards. It simplifies certification testing with features like a fiber loss wizard, user-definable thresholds, and support for fiber inspection probes (FIP). The device is compliant with TIA/TSB-178 guidelines and provides pass/fail results on a transflective screen.

Key Features

• Industry Standards Support: Compatible with TIA/EIA-568-B.3, ISO/IEC-11801, and various Ethernet standards.
• Modularity and Connectivity: Supports copper/DSL/triple-play, Ethernet, and other optical applications.
• Fiber Inspection Probe (FIP) Support: Ensures clean and defect-free connections.
• Step-by-Step Fiber Loss Wizard: Guides users through procedures to minimize errors.
• Low Cost of Ownership: Offers a three-year warranty and is cost-effective compared to competitors.

Specifications

• Power Meter: Detector type Ge, power range 10 to -75 dBm, wavelength range 800 to 1650 nm.
• General Specifications: Operating temperature -10°C to 50°C, storage temperature -40°C to 70°C, humidity 5% to 95% non-condensing.
• Battery Life: Approximately 8 hours with a rechargeable Li-Ion battery.

Testing and Troubleshooting

• Network Certification: Conducts loss measurements at multiple wavelengths and provides pass/fail analysis.
• Connector Inspection and Cleaning: Utilizes FIP for ensuring connector cleanliness, preventing erroneous results.
• Troubleshooting: Visual fault locator (VFL) helps identify fiber faults and test polarity.

Accessories and Ordering Information

• Includes a CD-based user guide, calibration certificate, quick reference guide, AC adapter/charger, and more.
• Various options for source, connector, probe, and software configurations are available.

Safety and Compliance

• Complies with 21 CFR 1040.10 and IEC 60825-1 standards for laser safety.
• ISO 9001 certified and compliant with the European Union’s WEEE directive.
