Product catalog summary

Overview: The document details specifications and options for abrasive cut-off machines, including both dry and wet cutting models. It covers features, capacities, optional accessories, horsepower, and voltage configurations.

Specifications:

Wheel Capacity: Models support wheel diameters from 16" to 26".
Motor: Hi-torque, totally-enclosed fan-cooled motors ranging from 7 1/2 HP to 40 HP, 3 phase.
Drive: Multiple "V" belt, rawedge sure grip, automotive type.
Spindle Bearings: Heavy-duty sealed ball bearings, lubricated for life.
Safety Guards: Exceed safety code requirements for cut-off wheel and belt guards.

Features:

Vise: Air operated chain holddown vise, with dual chain options for some models.
Mitering: Cutting head swivels up to 60° with quick angle lock.
Oscillation: Vibra-Action oscillation for improved cutting and longer wheel life.

Options:

Hydraulic Power Head with feed control valve.
Electronic Wheel Wear Compensator.
Dust Collector and Fume Exhauster.
Work Length Gage.

Dry Cutting Speeds: Provides average cutting times for various materials, e.g., 2" steel pipe in 5 seconds.

Wet Abrasive Cut-Off Saws: Designed for metallurgical labs and exotic alloys, featuring a coolant system and optional mitering fence.

Horsepower and Voltage Codes: Detailed codes for specifying configurations, with options for different phases and hertz.

Additional Information: Prices and designs are subject to change, with specific ordering instructions provided.

Specifications:
- Single phase, totally enclosed fan cooled motor available.
- Drive: V-belt, oil resistant.
- Spindle Bearings: Precision sealed ball bearings, lubricated for life.
- Blade Lubrication: Thru spindle and ports in the flanges, automatic oil feed control optional.
- Capacity: Nonferrous materials - 3" x 3" or 2" x 4", 45° - 3 1/4" shapes.
- Safety Guards: Blade guarded with cast shield in fixed position.
- Mitering: Pre-set stops at 45°, cutting head swivels both directions, locks without special tools.
- Shipping Weight: 120 lbs.

Horsepower Code:
- 1 = 1.5 HP
- 2 = 3 HP

Everett 20"-22" Contractors Model:
- Designed for cutting up to 6" pipe and conduit.
- Features include magnetic starter, stand, and foot pedal operated vise.
- Special high-torque motor, totally-enclosed and fan cooled.
- Shipping weight: 360 lbs.
- Complete with motor, magnetic starter, V-shaped chain holdown vise, steel stand.
- Horsepower and Voltage Code: Various options available, specify when ordering.

20"-22" Wet Miter Cut-Off:
- Complete with 20 HP TEFC motor, magnetic starters, air operated chain holddown vise, coolant tray settling tank, and pump.
- Options include hydraulic power head and electronic wheel wear compensator.

Special Wire Rope Cut-Off:
- Designed for cutting heavy wire rope without lifting to normal table height.
- Equipped with casters and foot pedal operated chain holdown vise.
- Available in 14”-16” and 20”-22” models.

Abrasive Cut-Off Wheels:
- Manufactured by Everett Industries for both dry and wet cutting.
- Resinoid Bond Aluminum Oxide for dry cutting with fiberglass reinforcement.
- Various grades available for different cutting needs.
- Rubber Bonded Wheels for wet cutting, not fiberglass reinforced, require caution.

Safety and Compliance:
- Compliance with ANSI Safety Code B 7.1 for abrasive wheels.

Warranty:
- Products warranted against defective materials and workmanship for 1 year.
- Warranty excludes consequential damages and third-party repairs.

Catalog excerpts

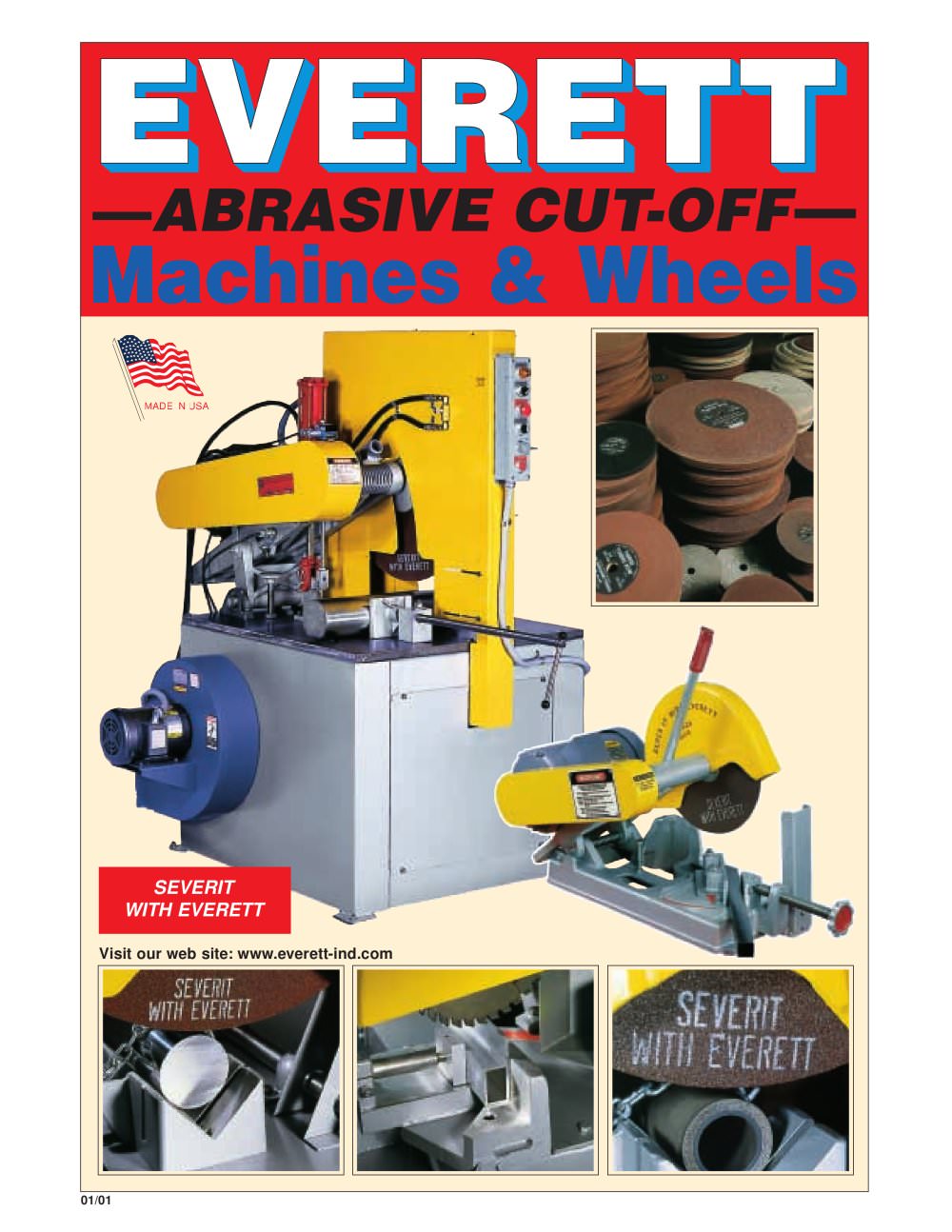

MADE IN USA SEVERITWITH EVERETT Visit our web site:www.everett-ind.com 01/01 size="-3">

Open the catalog to page 1

Complete with 3 H.P.TEFC motor and vise (specifyvoltage/phase/hertz when ordering SEE CHART AT RIGHT) . . . . . . 08002F Adjustable outboard support ( see page 17) . . . . . . . . . . . . . . . . . . . . . . 089403 Steel stand ( see page 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 089100 Work length gage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 089401 Drip oiler ( for cutting nonferrous materials) . . . . . . . . . . . . . . . . . . . . . . 089501 8" Hi-speed steel blade . . . . . . . . . . . . . . . . . . . . . . . . ....

Open the catalog to page 2

Complete with 3 H.P.TEFC motor and vise ( specify voltage/phase/hertz when ordering SEE CHART BELOW) . . . . . . . . . . . . . . . . 10002F Adjustable outboard support ( see page 17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109403 Steel stand ( see page 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109100 Work length gage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109401 Drip oiler ( for cutting nonferrous materials) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

Open the catalog to page 3

COMPLETE with 5 H.P.TEFC motor,magnetic starter,steel stand,VӔshaped chain holddown vise, (specify voltage/phase/hertz when ordering USE CHART AT RIGHT). . . . . . . . . . 12003F Cabinet base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129200 Dust collector fume exhauster (includes cabinet base) (see page 17) . . . . . . . . . 129201 > Hood (for use with cabinet base or dust collector) . . . . . . . . . . . . . . . . . . . . . . . . . 129010 Adjustable outboard support (see page 17) . . . . . . . . . . . . . . . . . . . . . . . ....

Open the catalog to page 4

12" diameter. Featured with optionaldust collector,fume exhauster (patented),cabinet base and hood Featured with optional cam lock vise > Special hi-torque totally-enclosed fan-cooled5 H.P.1 or 3 phase. > Magnetic with thermal overload. > Positive timing belt. > Heavy-duty sealed ball bearings. Lubricated for life. > Cut-off wheel and belt guards exceed safety code requirements. > Adjustable down stop limits depth of chop stroke. > Cutting head can swivel 45а left of center.Indicators for 15, 30аand 45.Cutting head and pedestal are mounted on a rugged swing arm secured in lubricated-for-life...

Open the catalog to page 5

Featured with optionaldust collector,fume exhauster (patented),cabinet base and hood 14" or 16" diameter. > Special hi-torque totally-enclosedfan-cooled 7 1/2 or 10 H.P. > Magnetic with thermal overload. > Multiple VӔbelt, rawedge sure grip, automotive type. > Heavy-duty sealed ball bearings.Lubricated for life. > Cut-off wheel and belt guards exceed safety code requirements. > Air operation optional. VӔshaped to hold various shaped materialsin best cutting position.Hold down chain foot pedal operated. > Adjustable down stop limits depthof chop stroke. > Hydraulic feed control for smooth, accurate...

Open the catalog to page 6

Special hi-torque totally-enclosed fan-cooled7 1/2 or 10 H.P. > Magnetic with thermal overload. > Multiple VӔbelt, rawedge sure grip, automotive type. > Heavy-duty sealed ball bearings. Lubricated for life. > Cut-off wheel and belt guards exceed safety code requirements. > Quick action cam lock. > Adjustable down stop limits depth of chop stroke. > 45а90 Cutting head can swivel 45а left of center.Indicators for 15, 30аand 45.Cutting head and pedestal are mounted on rugged swing- ing knee secured in lubricated-for-life bear- ings.Lock to hold desired cutting angle is quick and easy to operate....

Open the catalog to page 7

COMPLETE with TEFC motor,magnetic starter and VӔshaped chain holddown vise (specify H.P., voltage/phase/hertz when ordering USE CHART AT RIGHT) . . . 2000EF Dust collector fume exhauster (see page 17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209001 Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209010 24" air operated work length gage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209402 > Adjustable outboard support (see pages 17) . . . . . . . . . . . . . . . . . . ....

Open the catalog to page 8

COMPLETE with TEFC motor,magnetic starter and air operated chain holddown vise (specify H.P., voltage/phase/hertz when ordering USE CHARTFACING PAGE) . . . . . . . . . . . . . . . . . . . . . . . . . . 2001EF Dust collector fume exhauster (see page 17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209002 Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209020 Adjustable outboard support (see pages 17)...

Open the catalog to page 9

COMPLETE with TEFC motor,magnetic starters OSCILLATION and vise (specify H.P., voltage/phase/hertz when ordering USE CHART AT RIGHT) . . . . . 2602EFCOMPLETE as above with hydraulic powerhead > . . . . . . . . . . . . . . . . . . . . . . . . . . 2622EFCOMPLETE as above with electronic wheel wear compensator . . . . . . . . . . . . . 2642EFCOMPLETE with TEFC motor,magnetic starters OSCILLATION and mitering fence (specify H.P., voltage/phase/hertz when ordering USE CHART AT RIGHT) . . . . . 2603EFCOMPLETE as above with hydraulic powerhead . . . . . . . . . . . . . . . . . . . . . . . . . . 2623EFCOMPLETE...

Open the catalog to page 12

COMPLETE with 20 H.P.TEFC motor,magnetic starters with 110 volt at the pushbuttons,air operated VӔshaped chain holddown vise,coolant tray,settling tank and pump (specify H.P., voltage/phase/hertz when ordering SEE CHART AT RIGHT) . . . . . . . . . . . . 20106FCOMPLETE as above with hydraulic powerhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20306FCOMPLETE as above with wheel wear compensator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20506FCOMPLETE with 20 H.P.TEFC motor,magnetic starters with 110 volt at the pushbuttons,air operated VӔshaped chain holddown...

Open the catalog to page 14
