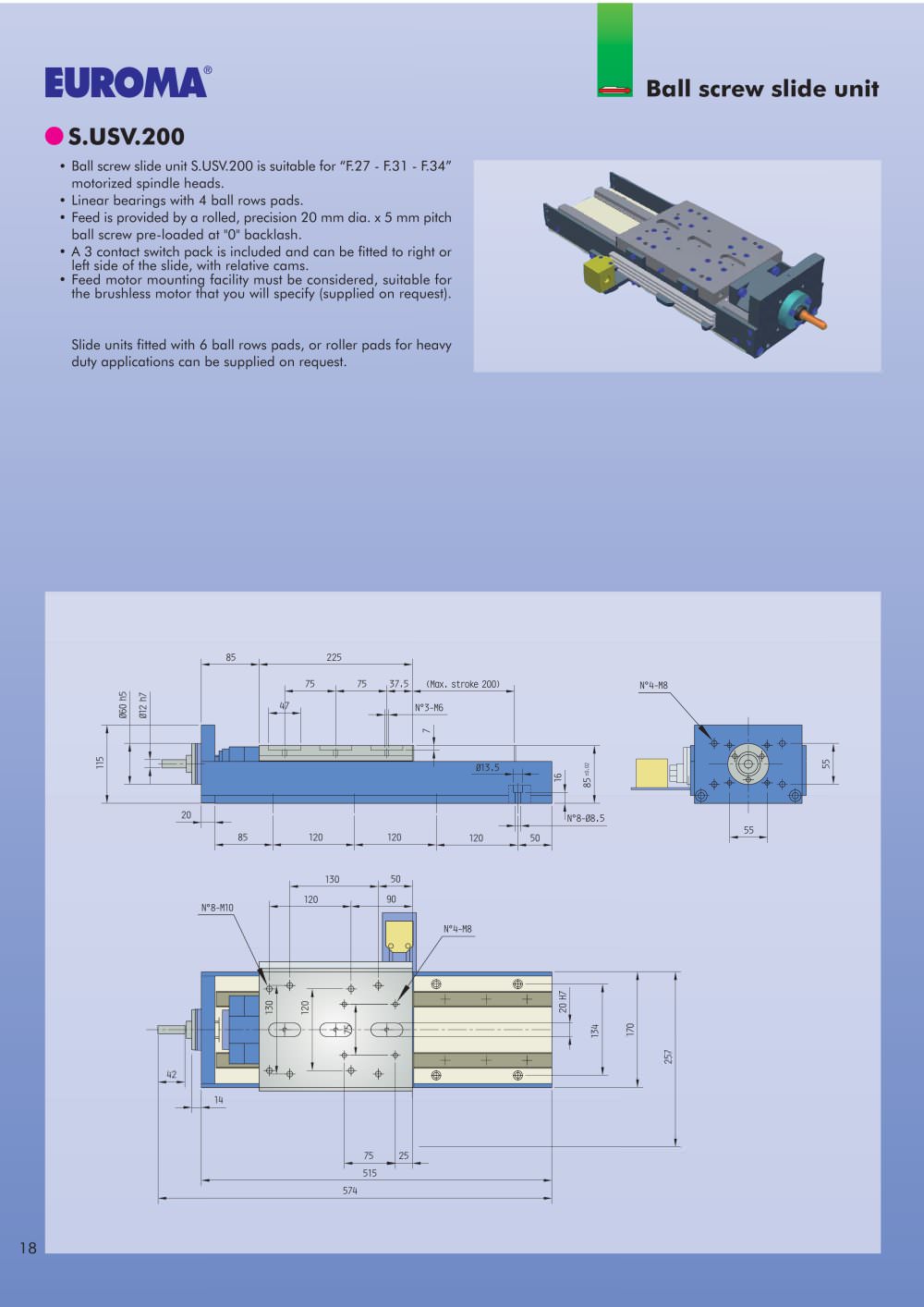

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:14.00pt "Arial", sans-serif; } .font2 { font:25.00pt "Arial", sans-serif; } EUROMA Bail screw slide unit S.USV.200 Bail screw slide unit S.USV.200 is suitable for "F.27 - F.31 - F.34" motorized spindle heads. Linear bearings with 4 bail rows pads. Feed is provided by a rolled, precision 20 mm dia. x 5 mm pitch ball screw pre-loaded at "0" backlash. A 3 contact switch pack is included and can be fitted to right or left side of the slide, with relative cams. Feed motor mounting facility must be considered, suitable for the brushless motor that you will specify (supplied on request). Slide units fitted with 6 ball rows pads, or roller pads for heavy duty applications can be supplied on request.
