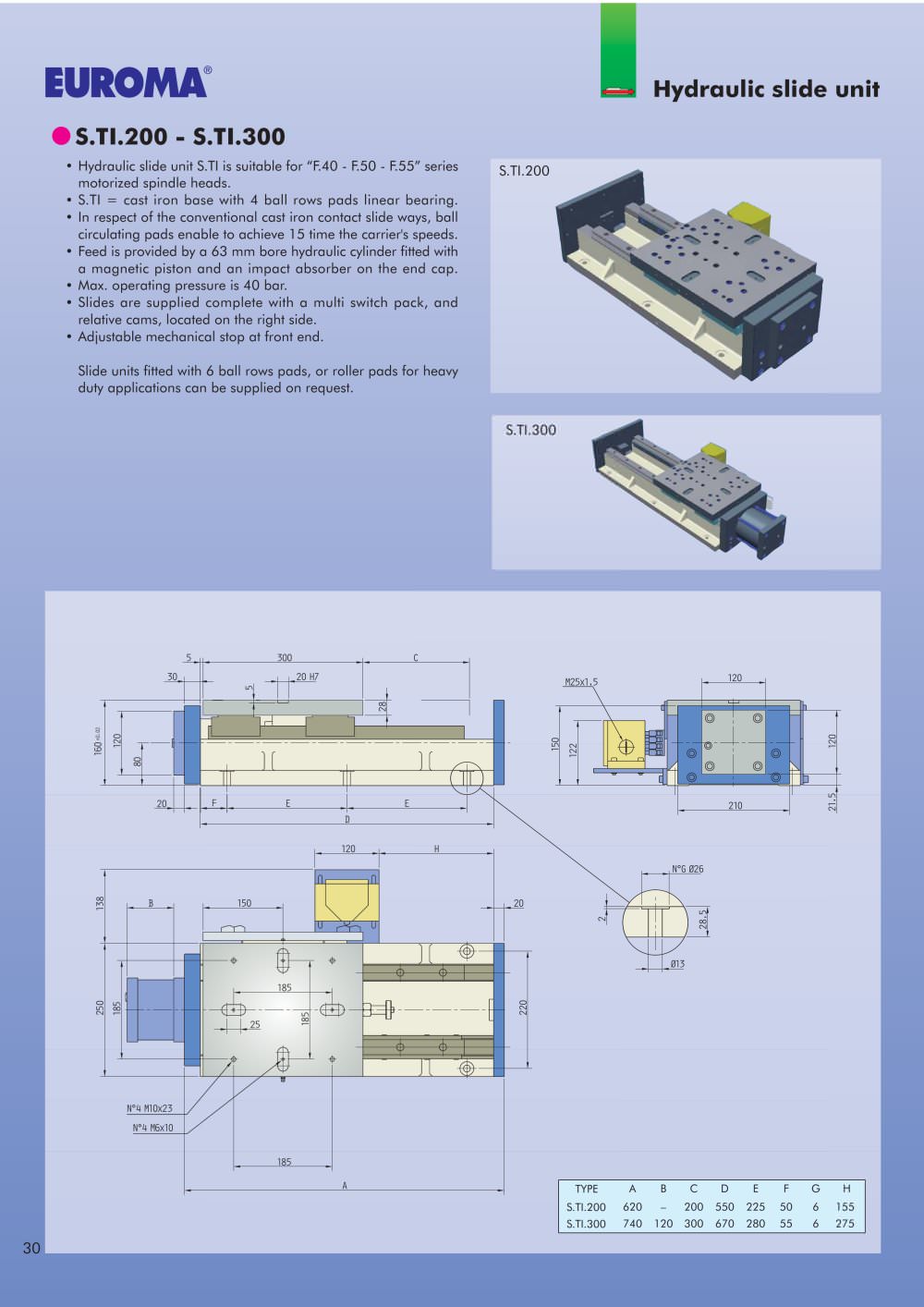

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:15.00pt "Arial", sans-serif; } .font4 { font:25.00pt "Arial", sans-serif; } EUROMA Hydraulic slide unit S.TI.200-S.TI.300 ' Hydraulic slide unit S.TI is suitable for "F.40 - F.50 - F.55" sries motorized spindle heads. ' S.TI = cast iron base with 4 bail rows pads linear bearing. ' In respect of the conventional cast iron contact slide ways, ball circulating pads enable to achieve 15 time the carrier's speeds. ' Feed is provided by a 63 mm bore hydraulic cylinder fitted with a magnetic piston and an impact absorber on the end cap. ' Max. operating pressure is 40 bar. ' Slides are supplied complete with a multi switch pack, and relative cams, located on the right side. ' Adjustable mechanical stop at front end. Slide units fitted with 6 ball rows pads, or roller pads for heavy duty applications can be supplied on request. S.TI.200 S.TI.300 5.H._300_ ,_ 185 A TYPE ABCDEFGH S.TI.200 620 - 200 550 225 50 6 155 S.TI.300 740 120 300 670 280 55 6 275 30

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:5.60pt "Arial", sans-serif; } .font3 { font:6.00pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial", sans-serif; } .font5 { font:8.00pt "Arial", sans-serif; } .font6 { font:12.00pt "Arial", sans-serif; } .font7 { font:15.00pt "Arial", sans-serif; } .font8 { font:25.00pt "Arial", sans-serif; } .font9 { font:6.00pt "Trebuchet MS", sans-serif; } EUROMA Hydraulic slide unit ELECTRO-HYDRAULIC DIAGRAM a p [I_b_ ®- BELLOW TYPE COVER TELESCOPIC GUIDE...
