Product catalog summary

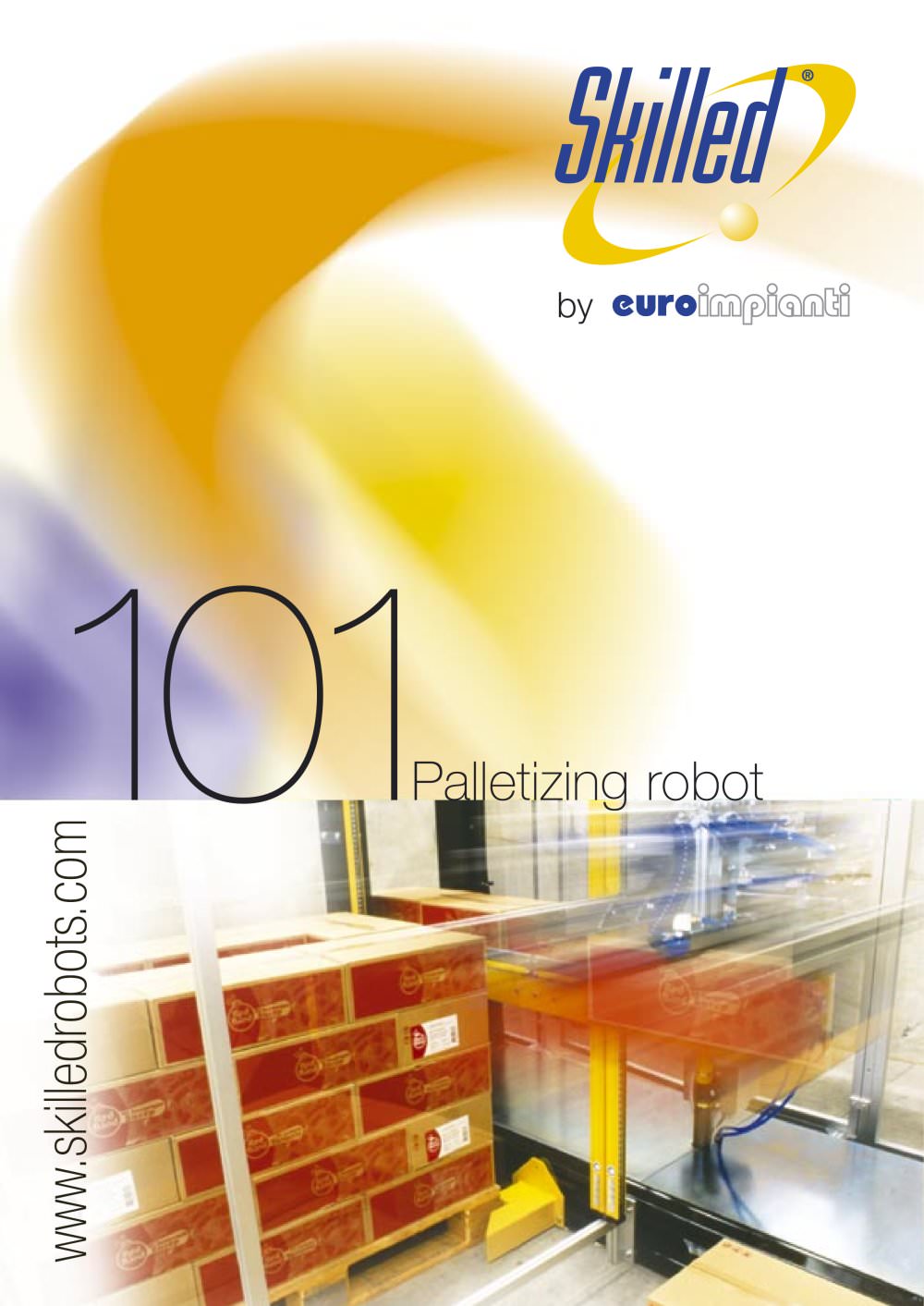

Overview: The document provides detailed information about the SKILLED ant 101, a palletizing robot developed by Euroimpianti. It highlights the robot's simplicity, modular construction, adaptability to existing conveyor and packaging lines, and its cost-effectiveness and high productivity.

Technical Specifications:

Structure: Cartesian with 4 axes of freedom.
Motors: Brushless, connected via CAN OPEN to the data processing unit.
Weight Capacity: Maximum 30 kg (66.14 lb).
Repeatability: ± 0.5 mm (± 0.19 inches).
Operating Speed: 10 cycles per minute.
Noise Level: Below 70 dB.
Operating Environment: Temperature range from +5°C to +40°C (+41°F to +104°F).
Protection Rating: IP 54.
Pressure Requirement: Minimum 0.6 Mpa.
Installed Power: 8 kW.
Power Supply: 400 V, 50/60 Hz.

Models and Options:

Available in single or double pallet stations.
Features include automatic pallet and slip sheet magazines, and various perimeter safeguards (galvanized or plexiglass).
Options include mechanical or vacuum grippers, side or frontal infeed, fixed pallet floor-rest, quick pallet changing device, and more.

Transport and Installation: The SKILLED ant 101 can be transported in a standard container and is delivered fully assembled, requiring no installation.

Additional Information: The document includes contact details for Euroimpianti SpA and references to their website for further information.
