Skilled 4 Axes palletisers

Product catalog summary

Overview of Skilled 4 Axes Palletisers

Skilled 304

Specifications: Maximum load of 40 kg including the gripper, maximum reach of 2091 mm, 4 axes, and a maximum of 2400 cycles per hour. Repeatability is less than +/- 0.25 mm, and the weight is 700 kg.
Components: Mechanical robot by KUKA, electronic system and software by EUROIMPIANTI.
Capabilities: Can stack Europallets (800/1000 x 1200) up to a net height of 1.4 m.
Ideal For: Small picks at high speed, Pick & Place jobs, and small pallets.

Skilled 504

Specifications: Maximum load of 120 kg including the gripper, maximum reach of 2150 mm, 4 axes, and a maximum of 800 cycles per hour. Repeatability is +/- 0.50 mm, and the weight is 900 kg.
Components: Mechanical robot, electronic system, and software by EUROIMPIANTI.
Capabilities: Can stack standard or special pallets up to a net height of 2.5 m, with special versions allowing for higher stacking.
Ideal For: Handling up to 2-3 different products, limited operative areas, and compact end-of-line solutions.

Skilled 603

Specifications: Maximum load of 180 kg including the gripper, maximum reach of 3200 mm, 4 axes, and a maximum of 2400 cycles per hour. Repeatability is less than +/- 0.25 mm, and the weight is 800 kg.
Components: Mechanical robot by KUKA, electronic system and software by EUROIMPIANTI.
Capabilities: Can stack Europallets (800/1000 x 1200) up to a net height of 2.5 m, with special pallets reaching up to 2.1 m. Special versions can operate at temperatures down to -30°C with a payload of 180 kg.
Ideal For: Handling up to 4-5 different products, large operative areas, and multiple lines at low speed.

Catalog excerpts

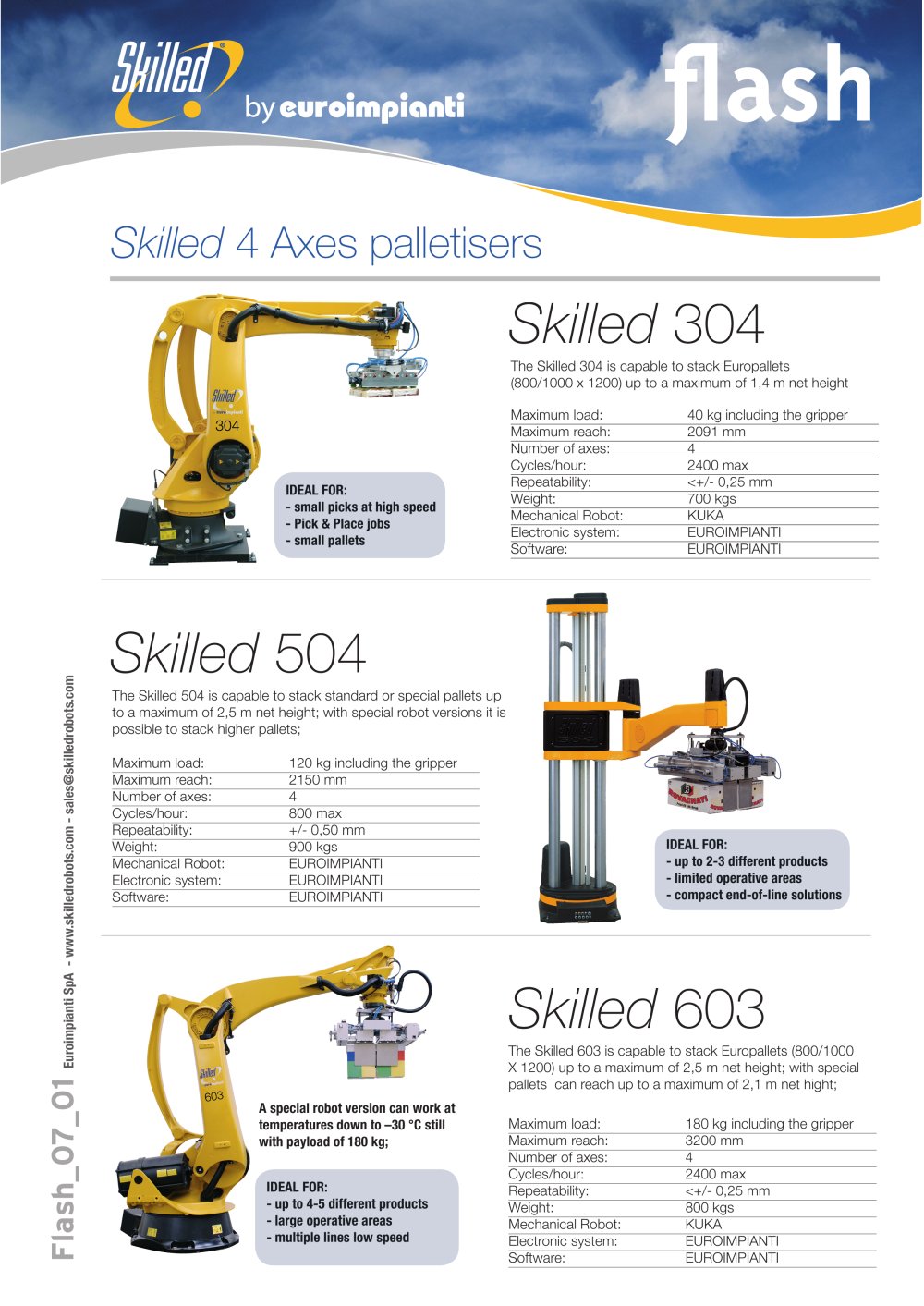

Skilled 4 Axes palletisers Skilled 304 Maximum load: 40 kg including the gripper Maximum reach: 2091 mm Number of axes: 4 Cycles/hour: 2400 max Repeatability: <+/- 0,25 mm Weight: 700 kgs Mechanical Robot: KUKA Electronic system: EUROIMPIANTI Software: EUROIMPIANTI The Skilled 304 is capable to stack Europallets (800/1000 x 1200) up to a maximum of 1,4 m net height IDEAL FOR: - small picks at high speed - Pick & Place jobs - small pallets Skilled 504 Maximum load: 120 kg including the gripper Maximum reach: 2150 mm Number of axes: 4 Cycles/hour: 800 max Repeatability: +/- 0,50 mm Weight: 900 kgs Mechanical Robot: EUROIMPIANTI Electronic system: EUROIMPIANTI Software: EUROIMPIANTI The Skilled 504 is capable to stack standard or special pallets up to a maximum of 2,5 m net height; with special robot versions it is possible to stack higher pallets; IDEAL FOR: - up to 2-3 different products - limited operative areas - compact end-of-line solutions Skilled 603 Maximum load: 180 kg including the gripper Maximum reach: 3200 mm Number of axes: 4 Cycles/hour: 2400 max Repeatability: <+/- 0,25 mm Weight: 800 kgs Mechanical Robot: KUKA Electronic system: EUROIMPIANTI Software: EUROIMPIANTI The Skilled 603 is capable to stack Europallets (800/1000 X 1200) up to a maximum of 2,5 m net height; with special pallets can reach up to a maximum of 2,1 m net hight; IDEAL FOR: - up to 4-5 different products - large operative areas - multiple lines low speed A special robot version can work at temperatures down to –30 °C still with payload of 180 kg; fl ash Flash_07_01 Euroimpianti SpA - www.skilledrobots.com - [email protected]
