Skilled 304

Product catalog summary

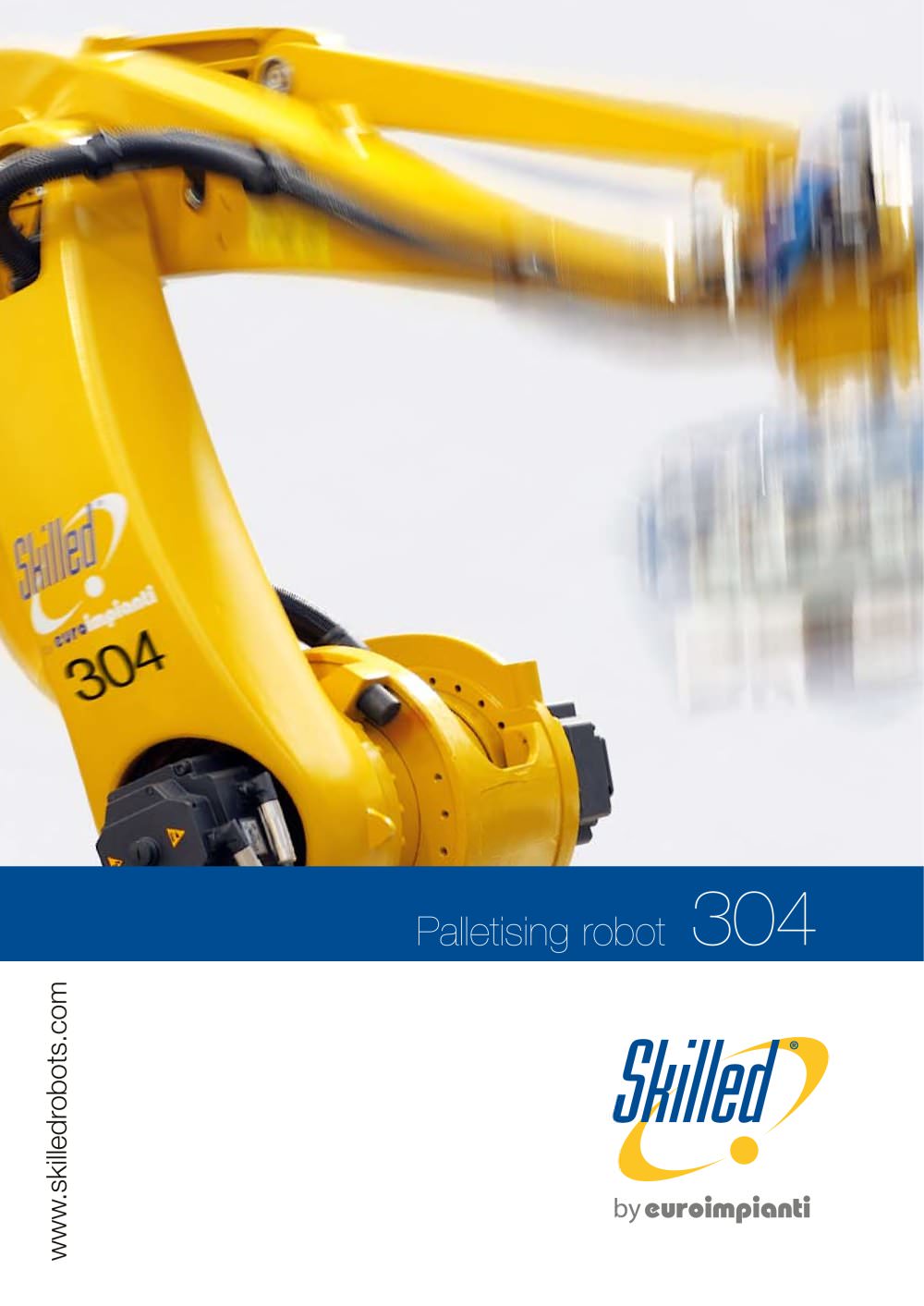

Overview: The SKILLED 304 is a 4-axis anthropomorphic robot designed for palletizing tasks. It combines German mechanical innovation from KUKA with Italian electronic and software expertise from SKILLED by EUROIMPIANTI.

Specifications:

Structure: Anthropomorphic
Freedom Degree: 4 axes
Max Axes Speed: A1 = 183°/sec, A2 = 153°/sec, A3 = 212°/sec, A6 = 374°/sec
Motors: Brushless
Reduction Gears: Zero backlash crown wheels
Payload: 40 kg (88 lb)
Supplementary Load Arm: 20 kg (44 lb)
Supplementary Load on Rotating Column: 50 kg (110 lb)
Total Distributed Load: 110 kg (243 lb)
Repeatability: ± 0.25 mm (0.0098”)
Cycles/Hour: Max 2400
Static Robot Load: 700 kg (1543 lb)
Environment: +5°C to +55°C (+41°F to +131°F)
Protection Degree: IP 54
Pressure: Min 0.6 Mpa

Technical Features: The robot features a 310° work area and is constructed with carbon fibre composite for a balance of lightness and strength. It is designed for high precision and efficiency in industrial environments.

Catalog excerpts

Structure: Anthropomorphic Freedom degree: 4 axes Max axes speed: A1 = 183Ұ/sec A2 = 153/sec A3 = 212а/sec A6 = 374/sec Motors: Brushless Reduction gears: Zero backlash crown wheels Payload: 40 kg (88 lb) Supplementary load arm: 20 Kg (44 lb) Supplementary load on rotating column: 50 Kg (110 lb)Total distributed load: 110 Kg (243 lb) Repeatability: б 0,25 mm (0,0098) Cycles/hour: Max 2400 Static robot load: 700 kg (1543 lb) Environment: + 5԰C 55 C (+41簰F +131F) Protection degree: IP 54 Pressure: Min 0,6 Mpa Struttura: Antropomorfo Gradi di libert簠: 4 Assi Velocit massima assi: A1 = 183/sec A2...
