Product catalog summary

Overview: The document outlines technical specifications and performance data for Euro Cold srl's fluid coolers, designed for specialized cooling applications. Euro Cold srl is ISO 9001 certified and based in Bomporto, Italy.

Product Categories:

ACW-LP and ACO-LP: Air cooling water and oil coolers with sealed compressors, copper/aluminium condensers, and electronic thermoregulators. Cooling capacity ranges from 1920 W to 5806 W, with power options of 230V/1ph/50-60Hz and 400V/3ph/50Hz.
ACW-MP and ACO-MP: Enhanced cooling capacity models up to model 300, using R404A refrigerant, designed for ambient temperatures up to 40°C. Cooling capacity is based on ASHRAE graphs.
LTW: Low-temperature applications with glycol-mixed water, offering cooling capacities from 1710 W to 11150 W, with a thermoregulator adjustable between -30°C and -10°C.
ECWB: Air cooling water units with stainless steel structures, cooling capacities from 6177 W to 56800 W, featuring electronic thermoregulators adjustable from +10°C to -7°C.

Technical Specifications:

Compressors: Sealed type with varying power requirements.
Fans: Power consumption ranges from 0.06 kW to 0.72 kW.
Evaporators: Made of brazed plates or copper/aluminium submersed types.
Flow Rates: Specific rates for water and oil applications vary by model.
Noise Levels: Range from 55 dB(A) to 75 dB(A) depending on the model.

Performance Notes:

Performance data is based on ASHRAE graphs for specific ambient and output temperatures.
Consultation with the technical department is recommended for ambient temperatures above 40°C or when using antifreeze.
Refrigerant used is R404A (HFC).

Catalog excerpts

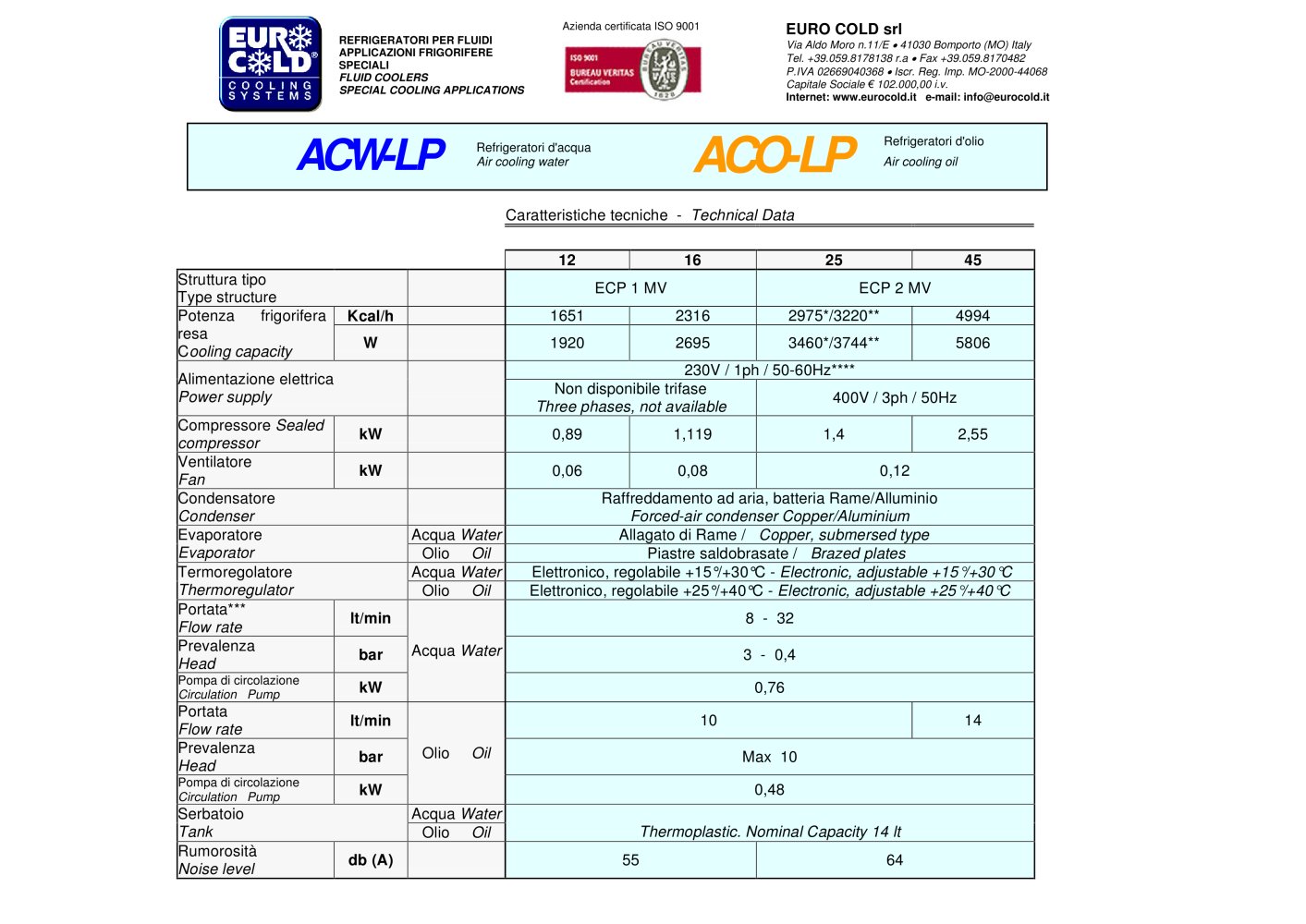

Azienda certificata ISO 9001 REFRIGERATORI PER FLUIDI EURO COLD srl > APPLICAZIONI FRIGORIFERE Via Aldo Moro n.11/E 41030 Bomporto (MO) Italy SPECIALI Tel. +39.059.8178138 r.a Fax +39.059.8170482 FLUID COOLERS P.IVA 02669040368 Iscr. Reg. Imp. MO - 2000 - 44068 SPECIAL COOLING APPLICATIONS Capitale Sociale 102.000,00 i.v. Internet: www.eurocold.it e - mail: [email protected] Refrigeratori d'acqua Refrigeratori d'olio Air cooling water Air cooling oi l Caratteristiche tecniche - Technical Data 12 16 25 45 Struttura tipo Type structure ECP 1 MV ECP 2 MV Potenza frigorifera Kcal/h 1651 2316 2975*/3220** 4994 resa C ooling capacity W 1920 2695 3460*/3744** 5806 Alimentazione elettrica 230V / 1ph / 50 - 60Hz**** Power supply Non disponibile trifase Three phases, not avai lable 400V / 3ph / 50Hz Compressore Sealed compressor kW 0,89 1,119 1,4 2,55 Ventilatore Fan kW 0,06 0,08 0,12 Condensatore Raffreddamento ad aria, batteria Rame/Alluminio Condenser Forced - air condenser Copper/Aluminium Evaporatore Acqua Water Allagato di Rame / Copper, submersed type Evaporator Olio Oil Piastre saldobrasate / Brazed plates Termoregolatore Acqua Water Elettronico, regolabile +15/+30аC - Electronic, adjustable +15/+30аC Thermoregulator Olio Oil Elettronico, regolabile +25/+40аC - Electronic, adjustable +25/+40аC Portata*** Flow rate lt/min 8 - 32 Prevalenza Acqua Water Head bar 3 - 0,4 > Pompa di circolazione Circulation Pump kW 0,76 Portata Flow rate lt/min 10 14 Prevalenza Olio Oil Head bar Max 10 > Pompa di circolazione Ci rculation Pump kW 0,48 Serbatoio Acqua Water Tank Olio Oil Thermoplastic. Nominal Cap acity 14 lt Rumorosit Noise level db (A) 55 64 >

Open the catalog to page 1

Azienda certificata ISO 9001 REFRIGERATORI PER FLUIDIAPPLICAZIONI FRIGORIFERE EURO COLD srl > Via Aldo Moro n.11/E 41030 Bomporto (MO) Italy SPECIALI Tel. +39.059.8178138 r.a Fax +39.059.8170482 FLUID COOLERS P.IVA 02669040368 Iscr. Reg. Imp. MO - 2000 - 44068 SPECIAL COOLING APPLICATIONS Capitale Sociale 102.000,00i.v. Internet: www.eurocold.it e - mail: [email protected] * Resa frigorifera del modello monofase / Cooling capacity of the 1 phase version ** Resa firgorifera del modello trifase / Cooling capacity of the 3 phases ve rsion *** Portata riferita ad acqua pura / water flow referred at...

Open the catalog to page 2

Azienda certificata ISO 9001 REFRIGERATORI PER FLUIDI APPLICAZIONI FRIGORIFERE Via Aldo Moro n.11/E 41030 Bomporto (MO) Italy SPECIALI Tel. +39.059.8178138 r.a Fax +39.059.8170482 FLUID COOLERS P.IVA 02669040368 Iscr. Reg. Imp. MO - 2000 - 44068 SPECIAL COOLING APPLICATIONS Capitale Sociale 102.000,00 i.v. Internet: www.eurocold.it e - mail: [email protected] * I modelli ACO dal 15 al 45, se forniti con pompa e/o vasca, sono assemblati nella struttura D1C / Cooler models ACO from 15 to 45, if requested with pump and/or tank, are assembled in D1C type structure. **Portata riferita ad acqua pura...

Open the catalog to page 4

Azienda certificata ISO 9001 REFRIGERATORI PER FLUIDI APPLICAZIONI FRIGORIFERE Via Aldo Moro n.11/E 41030 Bomporto (MO) Italy SPECIALI Tel. +39.059.8178138 r.a Fax +39.059.8170482 FLUID COOLERS P.IVA 02669040368 Iscr. Reg. Imp. MO - 2000 - 44068 SPECIAL COOLING APPLICATIONS Capitale Sociale 102.000,00 i.v. Internet: www.eurocold.it e - mail: [email protected] Refrigeratore per acqua glicolata a bassa temperatura Low temperature,air cooling water+ glicol Caratteristiche tecniche - Technical Data > Struttura tipo Type structure D1C D3 Potenza resa fri g orifera Kcal/h 1470 2160 3800 4900 7370 9590...

Open the catalog to page 5

Azienda certificata ISO 9001 REFRIGERATORI PER FLUIDI > APPLICAZIONI FRIGORIFERE Via Aldo Moro n.11/E 41030 Bomporto (MO) Italy SPECIALI Tel. +39.059.8178138 r.a Fax +39.059.8170482 FLUID COOLERS P.IVA 02669040368 Iscr. Reg. Imp. MO - 2000 - 44068 SPECIAL COOLING APPLICATIONS Capitale Sociale 102.000,00 i.v. Internet: www.eurocold.it e - mail: [email protected] >

Open the catalog to page 6

Azienda certificata ISO 9001 REFRIGERATORI PER FLUIDI APPLICAZIONI FRIGORIFERE Via Aldo Moro n.11/E 41030 Bomporto (MO) Italy SPECIALI Tel. +39.059.8178138 r.a Fax +39.059.8170482 FLUID COOLERS P.IVA 02669040368 Iscr. Reg. Imp. MO - 2000 - 44068 SPECIAL COOLING APPLICATIONS Capitale Sociale 102.000,00 i.v. Internet: www.eurocold.it e - mail: [email protected] Refrigeratore per acqua carenato in acciaio verniciato ral 7032 Air cooling water with structure in stainless, Refrigeratore per acqua carenato in acciaio inox aisi 304 painted ral 7032 Air cooling water, with structure in stainless steel...

Open the catalog to page 7

Open the catalog to page 8

Azienda certificata ISO 9001 REFRIGERATORI PER FLUIDI APPLICAZIONI FRIGORIFERE Via Aldo Moro n.11/E 41030 Bomporto (MO) Italy SPECIALI Tel. +39.059.8178138 r.a Fax +39.059.8170482 FLUID COOLERS P.IVA 02669040368 Iscr. Reg. Imp. MO - 2000 - 44068 SPECIAL COOLING APPLICATIONS Capitale Sociale 102.000,00 i.v. Internet: www.eurocold.it e - mail: [email protected] Caratteristiche tecniche - > Refrigeratore per emulsione Refrigeratore per olio integrale Chiller for emulsion water Technical Data > Chiller for whole oil 25 45 50 60 95 100 120 160 200 250 300 350* 450* 520* 580* 620* Struttura ti p o Type...

Open the catalog to page 9

Open the catalog to page 10

Open the catalog to page 11
