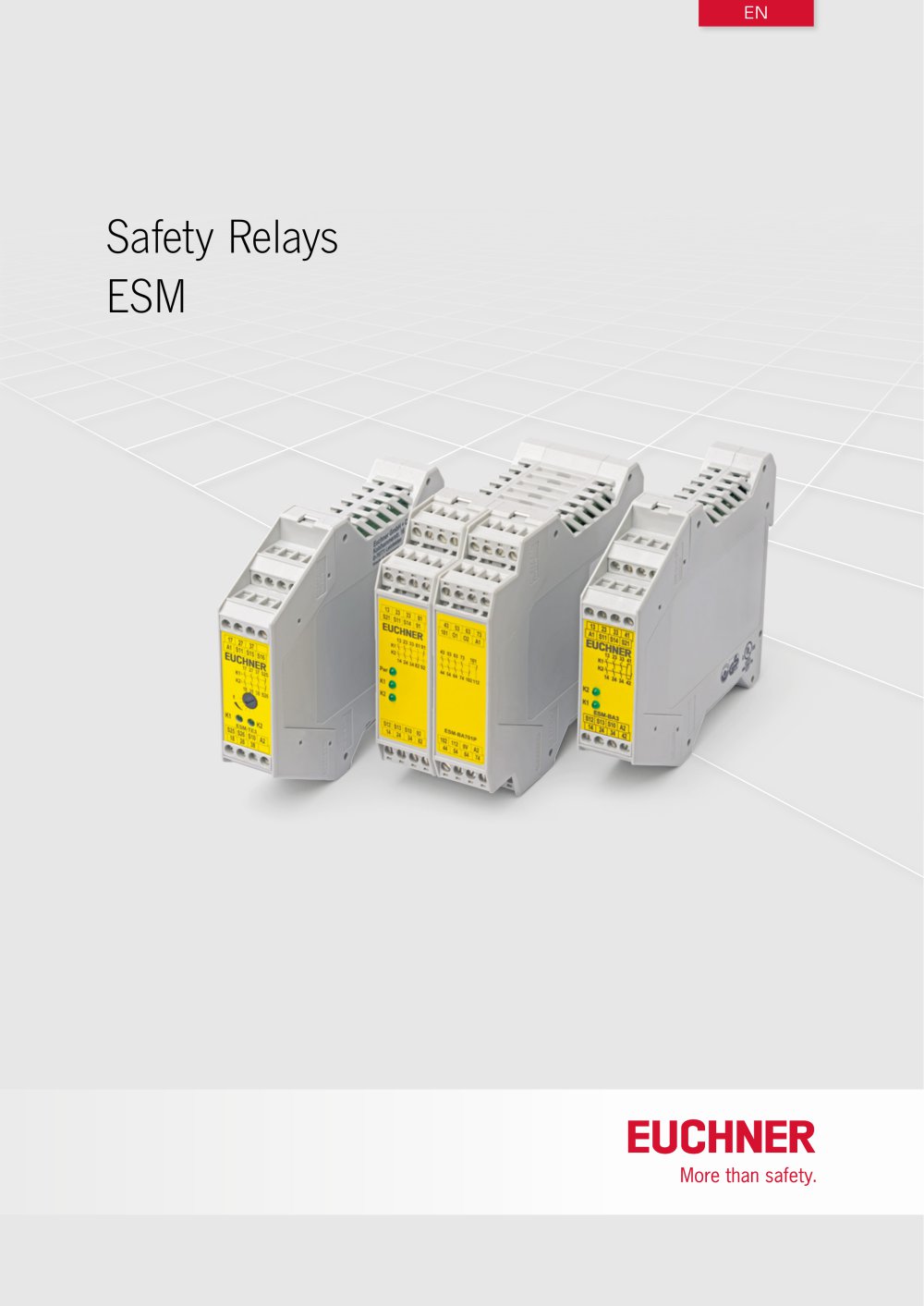

More than safety.

Internationally successful - the EUCHNER company EUCHNER GmbH + Co. KG is a world-leading company in the area of industrial safety technology. EUCHNER has been developing and producing high-quality switching systems for mechanical and systems engineering for more than 70 years. The medium-sized family-operated company based in Leinfelden, Germany, employs around 900 people around the world. 20 subsidiaries and other sales partners in Germany and abroad work for our international success on the market. Quality and innovation - the EUCHNER products A look into the past shows EUCHNER to be a company...

Safety relay ESM-BA.. 8 Safety relays time-delayed ESM-BT.. 11 Contact expansion ESM-ES.. 13 Contact expansion time-delayed ESM-TE.. 14 Connection examples for safety relays ESM 26

Safety Relays ESM General information For machines and installations that can produce a risk for people when in operation, the EU Machinery Directive defines minimum requirements that are intended to reduce to a minimum the specific hazards and the related risks of accident. If all sources of danger cannot be eliminated by design measures, appropriate protective measures must be taken. Using guards, such as fences or similar, it is intended to prevent personnel from entering the danger area. If users need to have access to the danger area during operation, movable guards such as safety doors,...

Safety Relays ESM Time-delay Safety contacts switch time-delayed Safety category Suitable up to category 3 according to EN ISO 13849‑1 Suitable up to category 4 according to EN ISO 13849‑1 Stop category Immediate shutdown Stop category 0 according to EN 60204-1 Time-delayed shutdown Stop category 1 according to EN 60204-1 Technical Data Mechanical data Electrical data Subject to technical modifications; no responsibility is accepted for the accuracy of this information.

Subject to technical modifications; no responsibility is accepted for the accuracy of this information.

Safety Relays ESM EUCHNER Safety relays BA Non-time-delayed category 4 BT Time-delayed category 3/non-time-delayed category 4 2H 2-hand requirement level IIIC according to EN 574, category 4 Category according to EN ISO 13849-1 K Category according to EN ISO 13849-1 Safety contacts non-time-delayed Safety contacts time-delayed M Monitored start button Relay start Automatic start Start button U Monitored start button Monitoring Feedback loop Short circuit monitoring Earth fault monitoring Ground fault monitoring

Safety Relays ESM EUCHNER Safety relay ESM-BA.. ERE ► ESM-BA.. Use up to category 4 according to EN ISO 13849-1 ► LED status indicators ► Up to 7 redundant safety contacts ► Auxiliary contact (monitoring contact) optional ► Short circuit and earth fault/ground fault monitoring optional Safety relay ESM- BA2.. STOP Suitable for 35 mm mounting rail Please order plug-in connection according to DIN EN 60715 TH 35 terminals separately Relay outputs The outputs are electrically decoupled and of redundant design. Connection options By using suitable wiring, the following functions can be selected: ►...

Safety Relays ESM EUCHNER Suitable for 35 mm mounting rail Please order plug-in connection according to DIN EN 60715 TH 35 terminals separately 1) If several ESM-BA3.. are closely spaced under load, the max. cumulative current at an ambient temperature of 20 °C = 9 A; at 30 °C = 3 A; at 40 °C = 1 A. If these currents are exceeded, a spacing of 5 mm between the devices must be observed. Ie = max. switching current per contact £ Ie = max. switching current of all safety contacts (cumulative current) * Information about the utilization category is on page 25 Series Version Outputs Version AC/DC...

Safety Relays ESM EUCHNER 1) Please order plug-in connection terminals separately (see page 16). Two connection kits are required for devices from series ESM-BA701P. Subject to technical modifications; no responsibility is accepted for the accuracy of this information.

Safety Relays ESM EUCHNER Safety relays time-delayed ESM-BT.. ERE ► Use up to category 4 according to EN ISO 13849-1 ► LED status indicators ► 4 redundant safety contacts of which 1, 2 or 3 contacts time-delayed ► Delay time range 1 s-30 s ► Fixed time delay of 2 s or 5 s optional ► Short circuit and earth fault/ground fault monitoring Relay outputs The outputs are electrically decoupled and of redundant design. Safety relay ESM-BT.. STOP STOP 0 1 Dimension drawing Connection options By using suitable wiring, the following functions Block diagram Technical data for outputs For technical data,...

Safety Relays ESM EUCHNER ► Use up to category 4 according to EN ISO 13849-1 ► Type III C acc. to EN ISO 13851 ► 2 redundant safety contacts ► Short circuit and earth fault/ground fault monitoring can be selected Dimension drawing Cat. STOP Relay outputs The outputs are electrically decoupled and of redundant design. Connection ► Two buttons each with one normally closed contact and one normally open contact that are monitored for simultaneity according to EN ISO 13851. In this way a high level of protection against tampering is provided. ► Short circuit monitoring to detect short circuits between...

Safety Relays ESM EUCHNER ► Control using safety relays ► 3 redundant safety contacts ► Earth fault/ground fault monitoring can be selected Contact expansion ESM-ES.. STOP0 Connection option By using suitable wiring, the following function Block diagram can be selected: ► Earth fault/ground fault monitoring to detect short circuits between the connecting cables and earth or ground and to shut down the outputs or prevent relay starting if necessary. Ordering table Ie = max. switching current per contact £ Ie = max. switching current of all safety contacts (cumulative current) * Information about...

Safety Relays ESM EUCHNER Contact expansion time-delayed ESM-TE.. ERE f Use up to category 3 according to EN ISO 13849-1 f LED status indicators f Control using safety relays f 3 redundant time-delayed safety contacts f Delay time range 1 s-30 s f Fixed time delay of 0.5 s optional 1 auxiliary contact f Earth fault/ground fault monitoring can be selected Relay outputs The outputs are electrically decoupled and of redundant design. Contact expansion ESM-TE.. Dimension drawing Cat. STOP Connection option Block diagram By using suitable wiring, the following function can be selected: Earth fault/ground...
