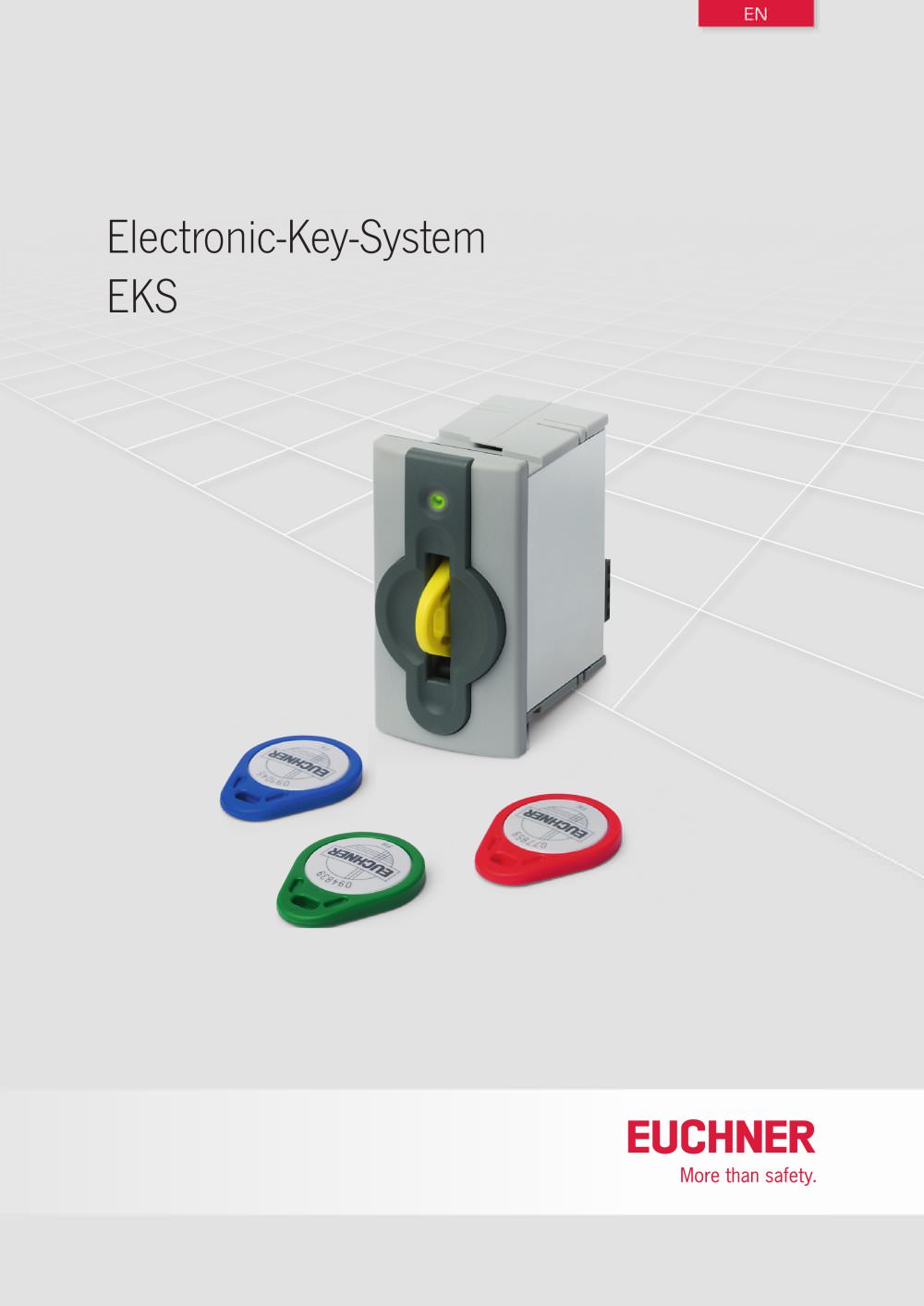

Electronic-Key-System - 1

086809-11-02/13 Subject to technical modications without notice, no liability will be assumed for any detail. © EUCHNER GmbH + Co. KG · TA

Open the catalog to page 1
Electronic-Key-System - 2

Internationally successful – the EUCHNER company EUCHNER GmbH + Co. KG is a world-leading company in the area of industrial safety technology. EUCHNER has been developing and producing high-quality switching systems for mechanical and systems engineering for more than 50 years. The medium-sized family-operated company based in Leinfelden, Germany, employs Headquarters in Leinfelden-Echterdingen more than 500 people around the world, 400 in Germany alone. In addition to the production locations in Unterböhringen and Shanghai/China, 14 subsidiaries and other sales partners in Germany and...

Open the catalog to page 2
Electronic-Key-System - 3

Key management using the Electronic-Key-Manager 4 Electronic-Key adapter with serial Interface 7 Electronic-Key adapter with USB interface 8 Electronic-Key adapter with USB interface version FSA 9 Electronic-Key adapter with Ethernet TCP/IP interface 10 Electronic-Key adapter with Ethernet TCP/IP interface version FSA 11 Electronic-Key adapter with PROFIBUS DP interface 12 Electronic-Key adapter with PROFIBUS DP interface version FSA 13 Electronic-Key adapter with PROFINET interface 14 Electronic-Key adapter with PROFINET interface version FSA 15 Software and user manuals 20

Open the catalog to page 3
Electronic-Key-System - 4

System overview With the Electronic-Key System (EKS), it does not matter if a password is forgotten. EKS is used for electronic access management on PCs and control systems. In principle EKS comprises two components: an Electronic-Key and the matching Electronic-Key adapter. Nowadays access rights are usually controlled by the issue of passwords. In practice, however, this often leads to unauthorized changes to systems. This is where the Electronic-Key System can be put to optimal use: in comparison to the issue of a password, considerably more responsibility is assigned to the owner of an...

Open the catalog to page 4
Electronic-Key-System - 5

Electronic-Key-System (EKS) All the advantages at a glance With EKS, very fast log-on is possible without the use of a password even on systems without a keyboard. In addition, it is sensible to program the application to permit system access only as long as the Electronic-Key is positioned in the Electronic‑Key adapter. Then when the Electronic-Key is removed, e. g. access to specific functions on the system is automatically inhibited. The user is responsible for organizing the programming of the application, integration in an overall system and assignment and use of the freely...

Open the catalog to page 5
Electronic-Key-System - 6

Subject to technical modifications; no responsibility is accepted for the accuracy of this information.

Open the catalog to page 6
Electronic-Key-System - 7

Electronic-Key-System (EKS) Electronic-Key adapter with serial Interface RS422 Dimension drawing Dimensions in mm 70 DIP-Schalter / DIP-switch Typical applications ff Connection to PC. Interfacing via ActiveX® module in Windows® ff Connection to control system or microprocessor. Interfacing via programming based on the 3964R protocol Technical data General parameters min. Housing Degree of protection according to EN 60529 Ambient temperature at UB = DC 24 V Mounting cut-out according to DIN 43700 Connection type for power supply Operating voltage UB (regulated, residual ripple < 5%) Current...

Open the catalog to page 7
Electronic-Key-System - 8

Electronic-Key-System (EKS) Electronic-Key adapter with USB interface Dimension drawing Dimensions in mm 81,5 DIP-Schalter / DIP-switch Typical applications ff Connection to PC. Interfacing via ActiveX® module in Windows® ff Virtual serial COM port. Communication identical to EKS serial Technical data General parameters min. Housing Degree of protection according to EN 60529 Ambient temperature Mounting cut-out according to DIN 43700 Power supply Current consumption Interface, data transfer Interface to the PC Transfer protocol Data transfer rate Data format USB interface connection type...

Open the catalog to page 8
Electronic-Key-System - 9

Electronic-Key-System (EKS) Electronic-Key adapter with USB interface version FSA Dimension drawing Dimensions in mm 81,5 71,5 max. 4mm DIP-Schalter / DIP-Switch Typical applications ff Connection to PC. Interfacing via ActiveX® module in Windows® ff Virtual serial COM port. Communication identical to EKS serial ff Additional integration in the safety system Technical data General parameters Value min. typ. See page 8, Electronic-Key adapter with USB interface (Order No. 092750) Parameters for the outputs LA and LB Power supply for load U (LA, LB) 24 Switching current per output 1 10 Number...

Open the catalog to page 9
Electronic-Key-System - 10

Electronic-Key-System (EKS) Electronic-Key adapter with Ethernet TCP/IP interface ETHERNET Dimension drawing Dimensions in mm 70 DIP-Schalter / DIP-switch Typical applications ff Connection to PC. Interfacing via ActiveX® module in Windows® ff Remote installation ff Connection to control systems for special applications Technical data General parameters min. Housing Degree of protection according to EN 60529 Ambient temperature at UB = DC 24 V Mounting cut-out according to DIN 43700 Connection type for power supply Operating voltage UB (regulated, residual ripple < 5%) Current consumption...

Open the catalog to page 10
Electronic-Key-System - 11

Electronic-Key-System (EKS) Electronic-Key adapter with Ethernet TCP/IP interface version FSA ETHERNET Dimension drawing Dimensions in mm 70 60 max. 4mm DIP-Schalter / DIP-switch Typical applications Technical data ff Connection to PC. Interfacing via ActiveX® module in Windows® ff Remote installation ff Connection to control systems for special applications ff Additional integration in the safety system General parameters Value min. typ. max. See page 10, Electronic-Key adapter with Ethernet TCP/IP interface (Order No. 100401) Parameters for the outputs LA and LB Power supply for load U...

Open the catalog to page 11
Electronic-Key-System - 12

Electronic-Key-System (EKS) Electronic-Key adapter with PROFIBUS DP interface Dimension drawing Dimensions in mm 70 DIP-Schalter / DIP-switch Typical applications ff Connection to bus master of a control system. Interfacing via GSD file ff Remote installation Technical data General parameters min. Housing Degree of protection according to EN 60529 Ambient temperature at UB = DC 24 V Mounting cut-out according to DIN 43700 Connection type for power supply Operating voltage UB (regulated, residual ripple < 5%) Current consumption Interface, data transfer Interface to the PC or to the control...

Open the catalog to page 12
