UPX

UPX
1 / 4 PagesView full catalog

UPX

Product catalog summary
Overview: The document outlines the UPX technology, a patented cooling system designed for thermal treatment processes in various industries such as food, chemistry, and environment. It highlights the system's ability to prevent condensation, thus preserving the microbiological and organoleptic properties of products.
Specifications: The UPX system utilizes a continuous cooling screw conveyor with a double jacket for coolant circulation. It offers a global exchange coefficient increase and flash cooling capabilities, with no condensation on cooled surfaces. The system supports treatment temperatures ranging from +2°C to +500°C and can handle up to 10m3/h with variable lengths up to 9000 mm.
Procedures: The system allows full access for inspection and cleaning from the top and bottom. The coolant enters and exits at the same end of the screw, and there is an option for conditioned air inlet and outlet.
Applications: UPX technology is suitable for cooling bulk, powdery, or pasty products across various processes. It is particularly beneficial in agro-industrial applications post-sterilization and in the chemical industry for heat-treated products.
Technical Features: The document provides technical specifications for different types of screws, including dimensions and capacities. It also mentions complementary equipment like heating screws and belt dryers.
Key Benefits: The system's design prevents product condensation, ensuring the preservation of essential product qualities. It meets rigorous bacteriological treatment standards, making it ideal for sensitive applications.
See more

Catalog excerpts

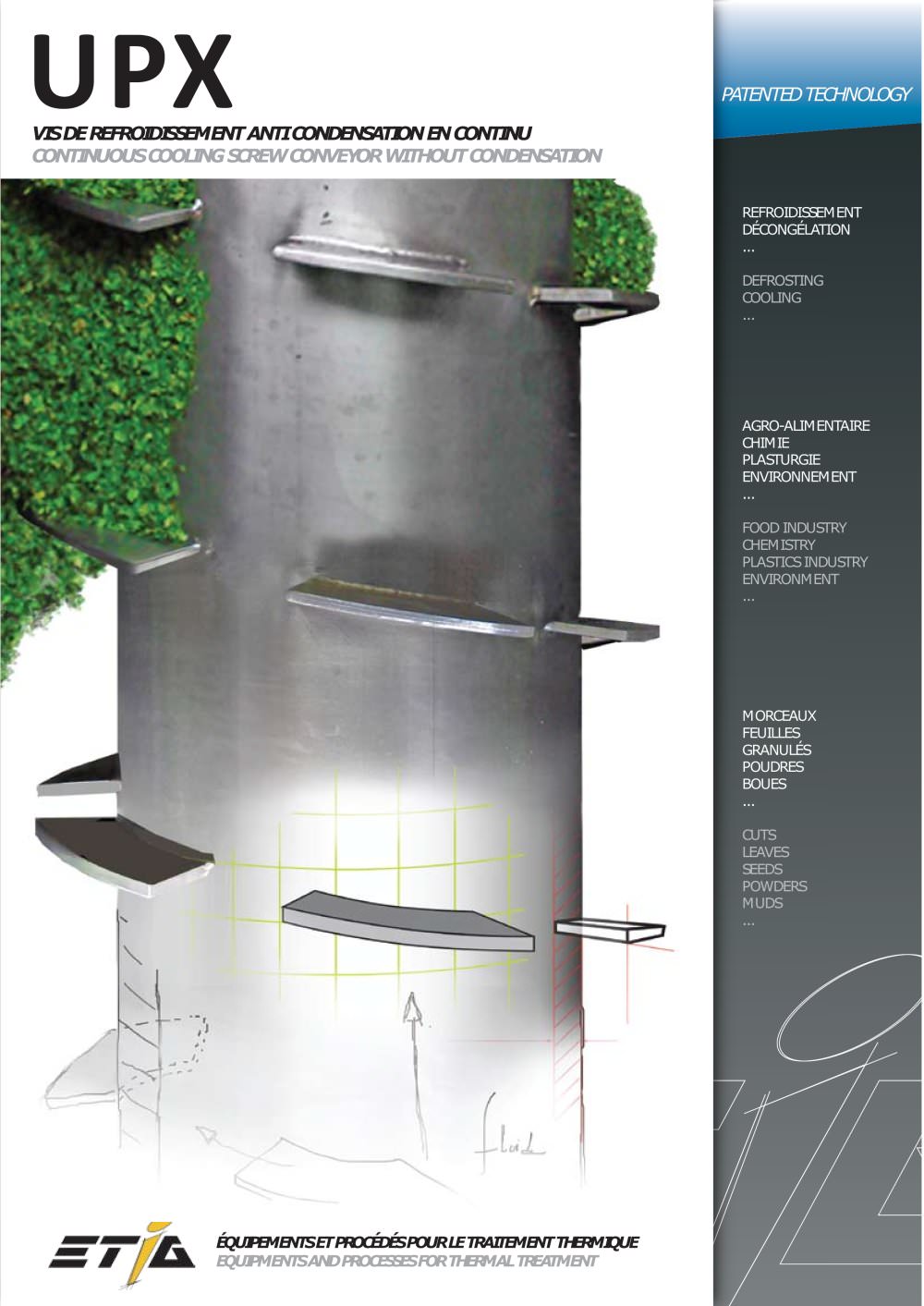

UPX-1

AGRO-ALIMENTAIRE CHIMIE PLASTURGIE ENVIRONNEMENT ... FOOD INDUSTRY CHEMISTRY PLASTICS INDUSTRY ENVIRONMENT ... MORCEAUX FEUILLES GRANULÉS POUDRES BOUES ... CUTS LEAVES SEEDS POWDERS MUDS ... REFROIDISSEMENT DÉCONGÉLATION ... DEFROSTING COOLING ... ÉQUIPEMENTS ET PROCÉDÉS POUR LE TRAITEMENT THERMIQUE EQUIPMENTS AND PROCESSES FOR THERMAL TREATMENT PATENTED TECHNOLOGY CONTINUOUS COOLING SCREW CONVEYOR WITHOUT CONDENSATION VIS DE REFROIDISSEMENT ANTI CONDENSATION EN CONTINU

 Open the catalog to page 1
UPX-2

AUGMENTATION DU COEFFICIENT GLOBAL D'ÉCHANGE - REFROIDISSEMENT ULTRA RAPIDE PAS DE CONDENSATION SUR LES PAROIS FROIDES - PAS D'HUMIDITÉ SUR LE PRODUIT GLOBAL EXCHANGE COEFFICIENT INCREASE - FLASH COOLING NO CONDENSATION ON COOLED JACKET - NO HUMIDITY ON PRODUCT Accès complet par le haut pour l'inspection et le nettoyage, par le bas, en ouvrant les caissons du dessous pour un accès libre à la partie basse de l'auge supportant le produit. The top opens for full access, total cleaning, and inspection. The bottom opens exposing the lower part of the trough and allowing easy access to the product...

 Open the catalog to page 2
UPX-3

ENTRÉE / SORTIE FLUIDE DE LA VIS Le fluide caloporteur passant dans la vis entre et sort par la même extrémité INLET AND OUTLET SCREW COOLANT The coolant inlet and outlet are at the same end of the screw. EXTRACTION D'AIR CONDITIONNÉ (OPTIONEL) CONDITIONNED AIR OUTLET (OPTION) ENTRÉE PRODUIT PRODUCT INLET VIS EN ROTATION ROTATING SCREW SORTIE PRODUIT SOUS LA MACHINE PRODUCT OUTLET BELOW MOTEUR D'ENTRAINEMENT GEAR MOTOR AUGE DOUBLE PAROIE A l'intérieur circule le fluide caloporteur DOUBLE JACKET Coolant circulation inside the trough ENTRÉE D'AIR CONDITIONNÉ (OPTIONEL) CONDITIONNED AIR INLET (OPTION)...

 Open the catalog to page 3
UPX-4

CARACTÉRISTIQUES TECHNIQUES TECHNICAL FEATURES U Ød TYPE 300 400 600 U [mm] (longueur entrée/sortie)* (inlet/outlet length)* 1500 3000 1500 d [mm] (diamètre vis)* (screw diameter)* 220 323 506 GAMMES COMPLÉMENTAIRE COMPLEMENTARY RANGE indications non contractuelles / non crontractual values ETIA - carrefour Jean Monnet - BP 20101 - 60201 Compiègne - France Tél.: +33 (0)3 44 86 44 20 - Fax: +33 (0)3 44 86 27 86 www.etia.fr Spirajoule® vis chauffantes heating screws Belt o matic® sécheur à tapis belt dryer Doseur à vis volumétrique Volumetric dosing screw JUSQU'À 10M3/H LONGUEUR VARIABLE JUSQU'À...

 Open the catalog to page 4
