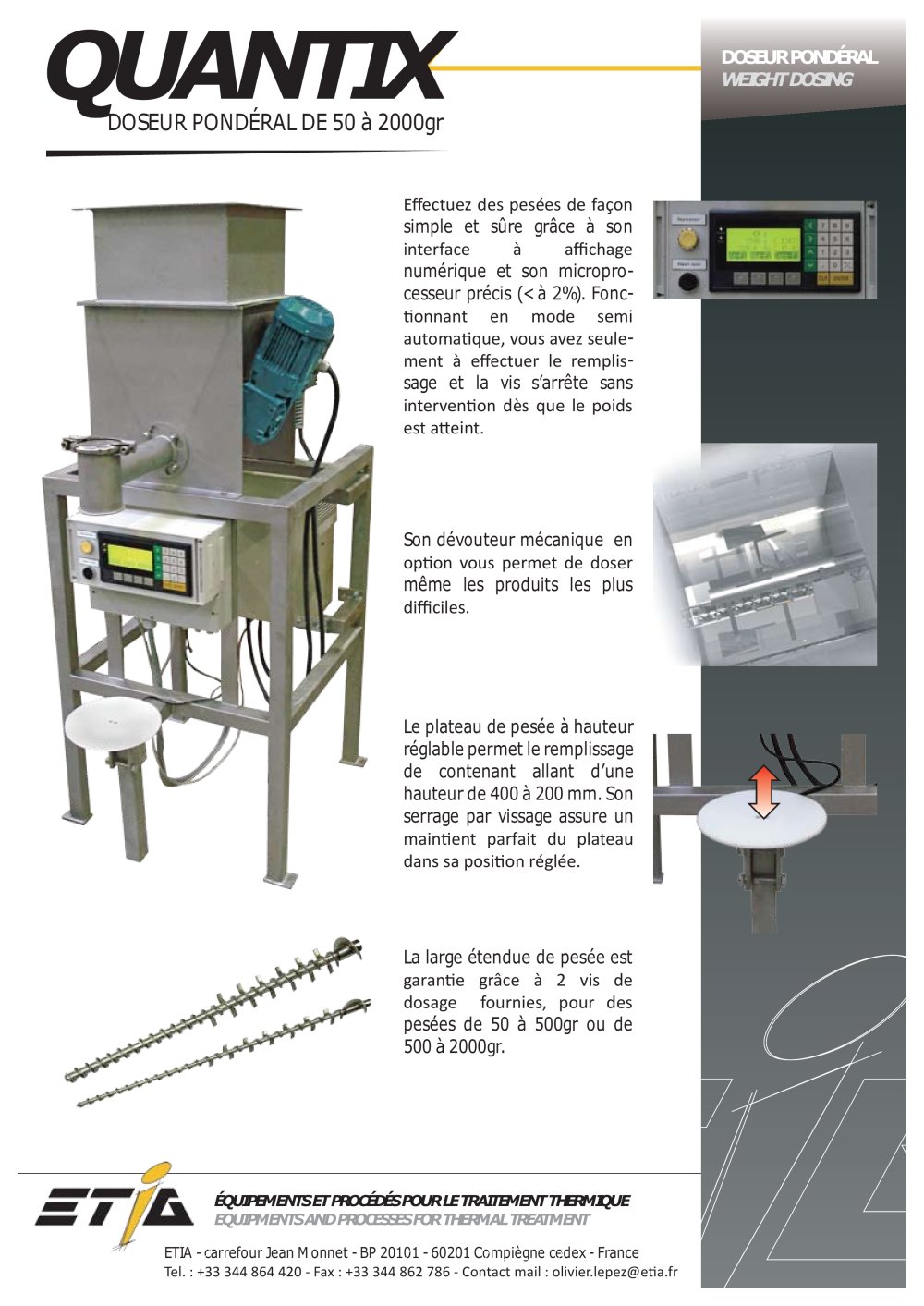

Product Overview

The document describes the ETIA weight dosing system, designed for precise dosing of materials ranging from 50 to 2000 grams. It is intended for use in thermal treatment processes.

Main Features and Specifications

• Adjustable Weighing Platform: The platform height is adjustable to accommodate containers with heights between 200 mm and 400 mm. The platform is securely fixed in place using a screw tightening mechanism.
• Precision and Control: The system uses a digital display interface and a microprocessor that ensures dosing accuracy within less than 2% error margin.
• Operation Mode: Semi-automatic operation where the user manually fills the container, and the dosing screw automatically stops once the target weight is reached.
• Optional Mechanical Agitator: An optional mechanical agitator (referred to as a "dévouteur") is available to facilitate dosing of difficult or challenging products.
• Wide Dosing Range: Two dosing screws are provided to cover the full dosing range: one for 50 to 500 grams and another for 500 to 2000 grams.

Technical Diagram

The technical schematic included indicates the physical dimensions of the dosing system, with a height of 1500 mm, width of 600 mm, and depth of 1000 mm, providing a clear understanding of the equipment footprint.

Contact and Manufacturer Information

Manufacturer: ETIA, located at Carrefour Jean Monnet, BP 20101, 60201 Compiègne Cedex, France.
Telephone: +33 344 864 420
Fax: +33 344 862 786
Email: [email protected]

Critical Information and Best Practices

• Ensure the weighing platform is securely fixed at the desired height before operation to maintain dosing accuracy.
• Use the appropriate dosing screw based on the weight range required to guarantee precision.
• For products that are difficult to dose, consider using the optional mechanical agitator to improve flow and dosing consistency.
• Operate the system in semi-automatic mode, monitoring the filling process to ensure safety and accuracy.
