These boxes are made from high-quality thermoplastic materials and include industrial plug-in equipment compliant with CEE standards. They can house protective devices like circuit breakers and fusible cut-outs, designed for easy mains connection. Used in workshops, industrial sites, and farming facilities, they protect against overloads and short circuits. Available in various sizes and protection classifications, all rated at IP 57.
Designed to prevent interchangeability errors, this equipment supports 230V and 400V, with protective contacts at 6 o'clock. Color-coded for easy identification: violet for 24V, blue for 230V, and red for 400V. Made from durable thermoplastic, resistant to high temperatures and chemicals, with splash-proof (IP 447) and waterproof (IP 677) options.
Used for low voltage interconnections, ensuring safe and reliable connections. Designed to meet international standards, available in various colors with accessories like mounting rails, end brackets, and bridging sets. Each terminal is marked with necessary electrical parameters for easy identification.
The document provides detailed specifications and descriptions of electrical components, including line-up terminals, bridging sets, elastic labels, and installation channels. It includes technical data for industrial distribution boxes and wall sockets.
Lists multiple types such as double level, three level, and high current terminals, available in different colors and packaging sizes. Accessories like mounting rails, end brackets, and end plates are specified.
Available in 2-pole, 3-pole, and 4-pole configurations, with specific product codes and packaging details.
Used for marking terminals and end brackets, made of polyamide, available in sizes EO3 and EO4 with various printed signs. Details on packaging and application process are provided.
Made of hard PVC, resistant to chemicals, suitable for ship-building. Available in various dimensions, designed for efficient wiring and aesthetic appearance.
Includes specifications for industrial distribution boxes and wall sockets, such as rated voltage, frequency, current, and protection classification. References standards like IEC 60309 and EN 60309.
Specifications include dimensions and pole configurations for both IP 447 and IP 667 classifications.
- Plug-in Sockets: Various models with dimensions and configurations, such as 2P, 3P+, and 3P+N+, with specific measurements.
- Terminal Elements: Details on materials like PA 6.6 polyamide for insulation, brass and steel for terminal bodies, and copper for conducting bars. Highlights resistance to temperature, aging, and corrosion.
- Conductor Cross Sections: Specifies minimum and maximum conductor cross sections based on rated current, ranging from 1.5 mm² to 70 mm².
- IEC Compliance: References compliance with IEC standards, including IEC 695-2-1 for material resistance and IEC 947-1 for terminal design and mechanical characteristics.
- Tightening Torque: Specifications for tightening screw torque according to IEC 947-7-1, with values depending on screw dimensions.
- Ensure proper selection of terminal types based on required current and voltage ratings.
- Follow specified torque values for safe and reliable connections.
- Test Currents: Lists test currents for various conductor cross sections, ensuring terminals maintain specified tolerance limits.
- Terminal Dimensions: Detailed dimensions for different terminal types, including thickness, stripping length, and cross-section capabilities.
Outlines specifications for high current line-up terminals VSU 70, VSU 95, VSU 120, VSU 185, and VSU 240. Each terminal has a thickness of 42 mm and an average tolerance of engaging on terminals rail of +0.3 mm. Nominal voltage for all terminals is 1000 V, with varying nominal currents and cross-sections: VSU 70 (192 A, 70 mm²), VSU 95 (232 A, 95 mm²), VSU 120 (269 A, 120 mm²), VSU 185 (353 A, 185 mm²), and VSU 240 (415 A, 240 mm²). The cross-section of the conduction rail varies from 25x3 mm to 25x10 mm depending on the terminal type.
Describes installation of protective covers and maintenance of air gaps and creeping distances among cable lugs to protect against electric shock hazards. For terminals VSU 70 to 150, the protective cover can be mounted with bridges, requiring part of the side wall to be cut. For VSU 185 and 240, end plates KP VSU are required despite bridging.
Additional technical data is provided for installation channels IKPS and other components, though specific details are not fully elaborated.
Catalog excerpts

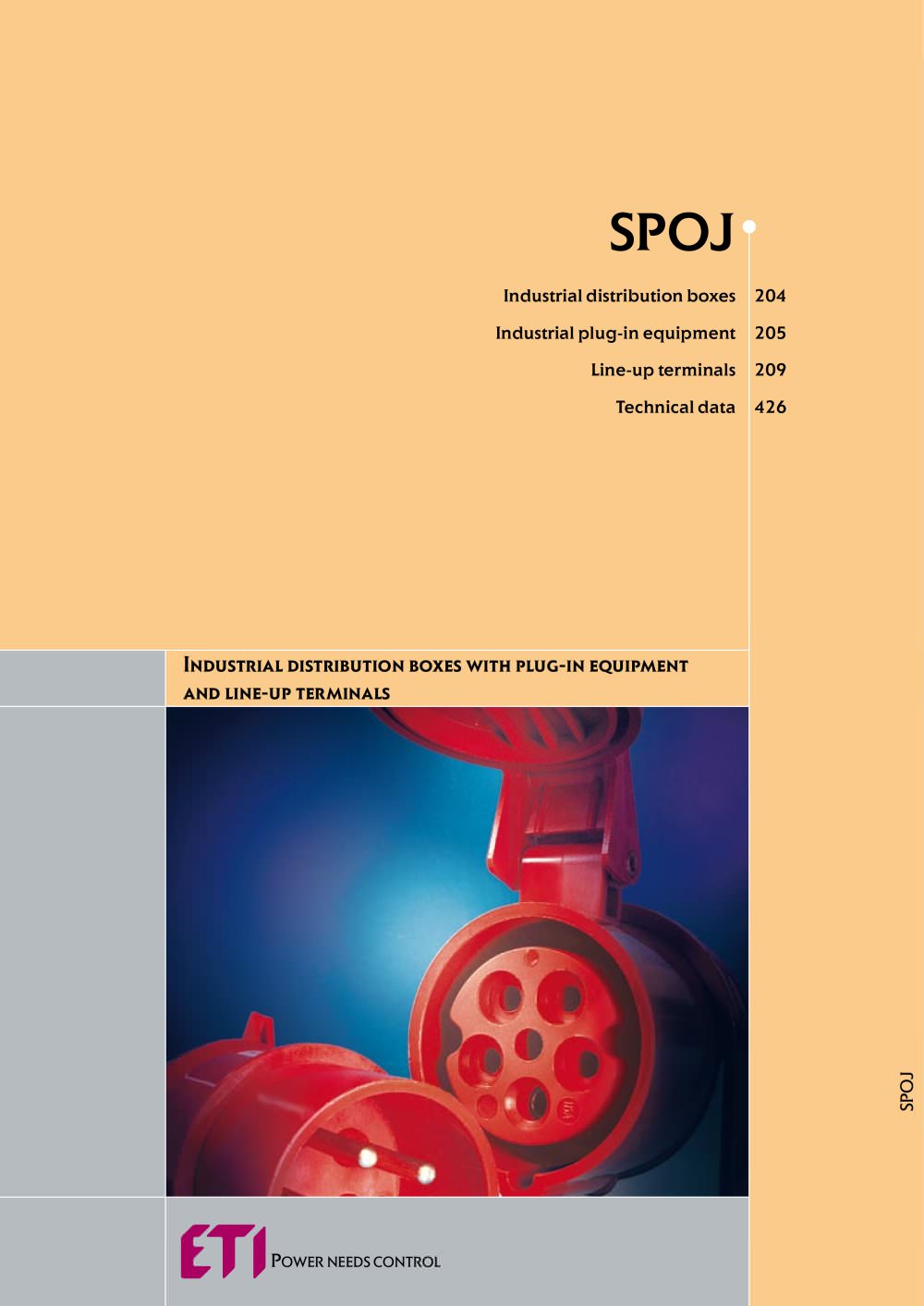

203 SPOJ Industrial distribution boxes with plug-in equipment and line-up terminals POWER NEEDS CONTROL SPOJ Industrial distribution boxes Industrial plug-in equipment Line-up terminals Technical data 204 205 209 426
Open the catalog to page 1
204 SPOJ Industrial distribution boxes Industrial distribution boxes Description The boxes are made of high-quality thermoplastic materials. Industrial plug-in equipment manufactured in compliance with CEE standards is built into them. Individual circuits can be protected using installation circuit breakers, difference current protected switch-gears, fusible cut-outs DO or D II. Series terminals, contactors, control switches, press-button switches, signal lights, and other appliances for incorporation can be built-in, too. The equipment is incorporated and wired according to the user's need,...
Open the catalog to page 2
205 SPOJ Industrial plug-in equipment Industrial plug-in equipment Description The industrial plug-in equipment manufactured in compliance with the CEE standards is characterized by noninterchangeability of various type equipment due to specific construction. The equipment for voltages of 230 and 400 V has its protective contact always in the position of 6 h (the position of number 6 on the clock face). The protective contact is more thickness than the phase ones, which makes any phase changing impossible, and thereby a wrong connection. The equipment for the voltage of 24 V has no protective...
Open the catalog to page 3
209 SPOJ Line-up terminals Line-up terminals In low voltage interconnections, different connecting elements are used to form functional wire connections. The safety of the connection depends on the connecting technics, which is being used (wire connector, screw connection, faston, terminal etc.) and has to be attached to the conductor without special skillfulness of the electrician and irrespective of the type and the mood of the connection. The connecting technics have influence on the condition of current flow between two elements which are on electrical and mechanical connection and on the...
Open the catalog to page 7
210 SPOJ Line-up terminals Line-up terminal VS 6 PA trade mark colour code No. packaging [pcs] VS 6 PA ivory 003901068 50 VS 6 PAN neutral blue 003901069 50 VS 6 PA+ red 003901070 50 VS 6 PAO orange 003901071 50 Accessories trade mark mounting rail 32 (1m) NVS 32 AI 003901014 20 mounting rail 35 (1m) TH35/L-1m 002911022 20 polyamid end bracket PKPA 35 003901016 50 end plate KP 16 PA 003901082 50 partition plat VP 16 PA 003901083 50 bridging set (2-pole) MP 2 6 003901084 20 bridging set (3-pole) MP 3 6 003901085 20 bridging set (4-pole) MP 4 6 003901086 20 bridging set 1m, 124 bushes and screws...
Open the catalog to page 8
211 SPOJ Line-up terminals Line-up terminal VS 35 PA trade mark colour code No. packaging [pcs] VS 35 PA ivory 003901157 20 VS 35 PAN neutral blue 003901158 20 VS 35 PA+ red 003901159 20 Accessories trade mark mounting rail 32 (1m) NVS 32 AI 003901014 20 mounting rail 35 (1m) TH35/L-1m 002911022 20 polyamid end bracket PKPA 35 003901016 50 end plate KP 35 PA 003901170 50 partition plat VP 35 PA 003901171 50 bridging set (2-pole) MP 2 35 003901172 10 bridging set (3-pole) MP 3 35 003901173 10 bridging set (4-pole) MP 4 35 003901174 10 elastic label EO3, EO4 Page EO 200 covering plate (yellow)...
Open the catalog to page 9
212 SPOJ Double level line-up terminal VS 2,5 NA trade mark colour code No. packaging [pcs] VS 2,5 NA ivory 003901243 50 VS 2,5 NAN neutral blue 003901244 50 VS 2,5 NA+ red 003901245 50 Accessories trade mark mounting rail 32 (1m) NVS 32 AI 003901014 20 mounting rail 35 (1m) TH35/L-1m 002911022 20 polyamid end bracket PKPA 35 003901016 50 end plate KP 4 NA 003901266 50 bridging set (2-pole) MP 2 2,5 003901019 50 bridging set (3-pole) MP 3 2,5 003901020 50 bridging set (4-pole) MP 4 2,5 003901021 50 bridging set 1m, 195 bushes and screws separated MP 195 2,5 003901022 1 set elastic label EO3 Page...
Open the catalog to page 10
213 SPOJ Three level line-up terminal VS 2,5 NA3 trade mark colour code No. packaging [pcs] VS 2,5 NA3 ivory 003901320 40 VS 2,5 NA3 N neutral blue 003901321 40 VS 2,5 NA3+ red 003901322 40 Accessories trade mark mounting rail 32 (1m) NVS 32 AI 003901014 20 mounting rail 35 (1m) TH35/L-1m 002911022 20 polyamid end bracket PKPA 35 003901016 50 bridging set (2-pole) MP 2 4P 003901052 50 bridging set (3-pole) MP 3 4P 003901053 50 bridging set (4-pole) MP 4 4P 003901054 50 bridging set 1m, 166 bushes and screws separated MP 166 4 003901055 1 set elastic label EO3, EO4 Page EO 200 covering plate (yellow)...
Open the catalog to page 11
214 SPOJ Multi level line-up terminal with ground VS 2,5 PE2 trade mark colour code No. packaging [pcs] VS 2,5 PE2 ivory 003901386 50 Accessories trade mark mounting rail 32 (1m) NVS 32 AI 003901014 20 mounting rail 35 (1m) TH35/L-1m 002911022 20 polyamid end bracket PKPA 35 003901016 50 bridging set (2-pole) MP 2 4P 003901052 50 bridging set (3-pole) MP 3 4P 003901053 50 bridging set (4-pole) MP 4 4P 003901054 50 bridging set 1m, 166 bushes and screws separated MP 166 4 003901055 1 set elastic label EO3, EO4 Page EO 200 covering plate (yellow) PPA 4M 003901290 50 measuring bush NP 2,5/4 PA 003901025...
Open the catalog to page 12
215 SPOJ Mini line-up terminal VS 4 PAM trade mark color code No. packaging [pcs] VS 4 PAM ivory 003901442 100 VS 4 PAMN neutral blue 003901443 100 VS 4 PAM+ red 003901444 100 VS 4 PAMZ green 003901445 100 Accessories trade mark mounting rail perforated NVS 15 003901051 50 polyamid end bracket PKM 003901430 50 end plate KP 4 PAM 003901431 50 bridging set (2 pole) MP 2 4P 003901052 50 bridging set (3 pole) MP 3 4P 003901053 50 bridging set (4 pole) MP 4 4P 003901054 50 bridging set 1m, 166 bushes and screws separeted MP 166 4 003901055 1 set elastic label EO3, EO4 Page EO 200 covering plate (yellow)...
Open the catalog to page 13
216 SPOJ Ground terminal block VS 16 PE trade mark colour code No. packaging [pcs] VS 16 PE yellow-green 003901518 50 Accessories trade mark mounting rail 35 (1m) TH35/L-1m 002911022 20 elastic label EO3, EO4 Page EO 200 Ground terminal block VS 35 PE trade mark colour code No. packaging [pcs] VS 35 PE yellow-green 003901539 20 Accessories trade mark mounting rail 35 (1m) TH35/L-1m 002911022 20 elastic label EO3, EO4 Page EO 200 High current line-up terminal VSU 95 trade mark colour code No. packaging [pcs] VSU 95 ivory 003901585 10 Accessories trade mark mounting rail 35 (1m) TH35/L-1m 002911022...
