Ethernet Direct
ZigBee Solutions

ZigBee Solutions

Product catalog summary

ZigBee Solutions Overview
ZigBee is a specification for wireless personal area networks (WPAN) based on the IEEE 802.15.4 standard. It operates in the ISM radio bands and is designed for creating cost-effective, self-organizing mesh networks. These networks are ideal for applications such as industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation, and home automation.

Zebra Series ZigBee Solutions
The Zebra Series includes various ZigBee solutions like RS-485/RS-232 to ZigBee network converters, ZigBee repeaters, and ZigBee I/O modules. These solutions facilitate wireless connectivity for RS-232/RS-485 devices and support network topologies such as ad-hoc, star, and mesh.

Product Variations

ZigBee Network Converters: Enable RS-232/RS-485 devices to connect wirelessly to systems, supporting star, mesh, and cluster tree topologies with transmission distances up to 1km for high-power models.
ZigBee Repeaters: Extend communication distances, supporting similar topologies and transmission capabilities as converters.
ZigBee I/O Modules: Include analog and digital I/O options, supporting Modbus protocols for communication with SCADA/HMI software and PLCs.

Technical Specifications

Operating Frequency: 2.4GHz
Compliance: IEEE 802.15.4-2006 standard
Transmission Distance: Up to 1km for high-power models
Power Input: 10 to 30VDC
Environmental Conditions: Operating temperature from -25 to 75°C
Certifications: CE/FCC, TUV(ZCP), WEEE, RoHS

Key Features

Supports various operating modes via Serial and Ethernet interfaces
Provides web-based GUI and configuration utility software
Offers robust power protection including reverse polarity, ESD, surge, and EFT

Conclusion
The Zebra Series ZigBee solutions offer versatile and reliable options for wireless communication in industrial and automation applications. With support for multiple network topologies and robust technical specifications, these products are suitable for creating efficient and scalable wireless networks.

Product Overview
The document details the ZMZ-330 and ZMZ-330HP, ZigBee IEEE 802.15.4 Device Servers designed to bridge ZigBee wireless sensor networks to Ethernet LAN/WAN. These devices feature a high-performance design with a 2.4GHz operating frequency, compliant with the IEEE 802.15.4-2006 standard. They offer wireless transmission distances of up to 100m for the standard version and 1.6km for the high-power version.

Physical and Environmental Specifications
The device is housed in a robust metal casing with dimensions of 85mm (W) x 115mm (H) x 23mm (D) and supports DIN-Rail or wall mounting. It operates within a temperature range of 0 to 50ºC and can be stored between -20 to 60ºC. The operating humidity is 0% to 90% RH (non-condensing).

Wireless Specifications
The ZMZ-330 series supports RF channels with a receive sensitivity of -102dBm and a transmit power of 12dBm. It uses a 3dBi omni-directional antenna and supports network topologies such as Star, Mesh, and Cluster Tree. The transmission distance is 100m line-of-sight (LOS).

Technology and Interface Specifications
The device includes one DB9 RS-232/422/485 serial port and one 10/100Base-T(X) Ethernet RJ-45 port. It supports various protocols including TCP, IP, ARP, DHCP, Telnet, HTTP, UDP, and ICMP. The data rate ranges from 110bps to 230.4Kbps.

Power Requirements
The device requires a power input of 9 to 15VDC with a maximum power consumption of 1.5 watts.

Regulatory Approvals and Warranty
The ZMZ-330 series is certified with CE/FCC and complies with environmental standards such as WEEE and RoHS. It comes with a 2-year warranty.

Additional Features
The device supports a virtual COM driver for backward compatibility, Telnet/Serial consoles for configuration, and a heart-beat checking mechanism for reliable communication. It also offers a Windows utility for device configuration and management, and is firmware upgradeable.

Catalog excerpts

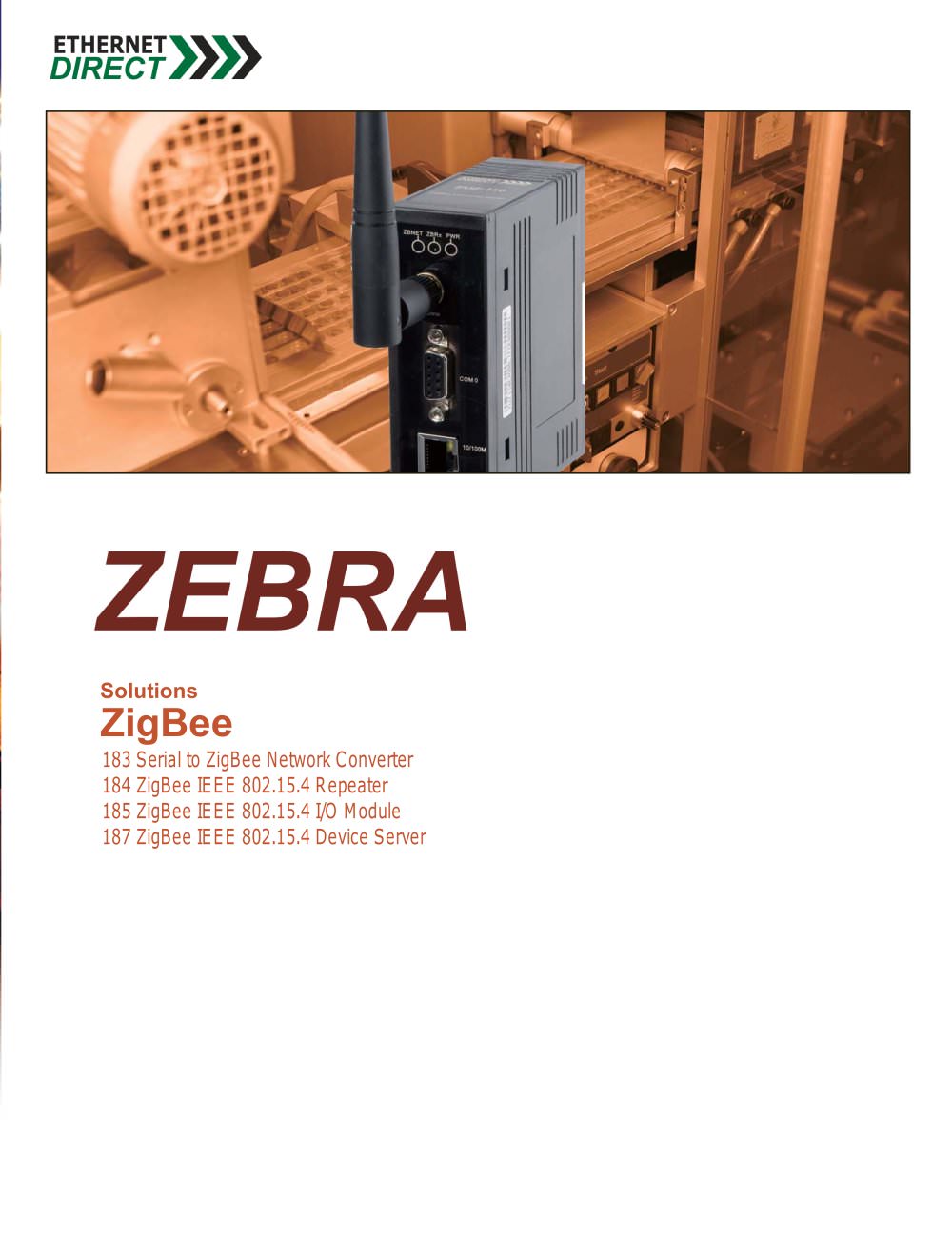

ZEBRA Solutions ZigBee 183 Serial to ZigBee Network Converter 184 ZigBee IEEE 802.15.4 Repeater 185 ZigBee IEEE 802.15.4 I/O Module 187 ZigBee IEEE 802.15.4 Device Server

Open the catalog to page 1

Zebra Series ZigBee Solutions ZigBee is a specification based on the IEEE 802.15.4 standard for wireless personal area networks (WPAN). ZigBee operates in the ISM radio bands, and its focus is to define a general-purpose, inexpensive, and self-organizing mesh network that can be used for industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation, home automation etc. Ethernet Direct offers Zebra Series ZigBee Solutions to cater the WPAN application. There are three product variations namely RS-485/RS-232 to ZigBee network converters as host...

Open the catalog to page 2

ZigBee Device Dimensions ZUZ-110(HP)/111(HP) ZBNET ZBRx ZigBee Dimensions

Open the catalog to page 3

ZigBee Solutions Selection Guide s ZUZ-110/111/ ZUZ-110(HP)/111(HP) RS-232/485/Ethernet to ZigBee Network Converter (Host/Slave) RS-232/485/Ethernet to ZigBee Network Converter (Host/Slave), high power version ZigBee IEEE 802.15.4 Repeater ZigBee IEEE 802.15.4 Repeater, high power version ZigBee IEEE 802.15.4 Device Server ZigBee IEEE 802.15.4 Device Server, high power version Interface Ethernet Port Serial Port ZigBee Solutions Star, Mesh, Cluster Tree Star, Mesh, Cluster Tree Star, Mesh 2dBi Omni-directional 5dBi Omni-directional (Optional, up to 1.6km) Transmission Distance Frequency Band...

Open the catalog to page 4

ZigBee Solutions Selection Guide ZigBee IEEE 802.15.4 I/O Module with 6-channel Isolated Digital Inputs and 4-channel Relay Outputs ZigBee IEEE 802.15.4 I/O Module with 8-channel Isolated Digital Input and 16-bit Counter Interface Ethernet Port Serial Port USB Port I/O Port Star, Mesh, Cluster Tree Star, Mesh, Cluster Tree RF Interface RF Standard Frequency Band RF Channel Network Topology Antenna Transmission Distance ZigBee Solutions Protocol Modbus Ethernet Hardware Power Input Power Consumption Power Protection Regulatory Approvals Global Warranty Operating Temperature

Open the catalog to page 5

RS-232/485/Ethernet to ZigBee Network Converter (Host/Slave) Features Supports 2.4GHz operating frequency Fully compliant with IEEE 802.15.4-2006 standard Wireless transmission distance up to 1km (HP model) Provides web-based GUI and configuration utility software Supports various operating modes via Serial and Ethernet interface Supports Modbus RTU/ASCII, Modbus TCP operating modes Supports Modbus TCP to Modbus RTU/ASCII operating mode Supports Serial/Ethernet transparent addressable and non-addressable operating modes ZigBee Solutions The Zebra Series ZUZ-110/ZUZ-110HP and ZUZ-111/ZUZ-111HP...

Open the catalog to page 6

ZigBee Repeater Features Supports 2.4GHz operating frequency Fully compliant with IEEE 802.15.4-2006 standard Wireless transmission distance up to 1km (HP model) Provides configuration utility software for easy setup Supports flexible operating mode selections Hardware Specifications Interface Setting Port: B-TYPE USB Port; compliant with USB 1.1/2.0 standard LEDs: ZBNET, ZBRx, PWR Power Requirements Power Input: ZUZ-242: 10 to 30VDC or USB ZUZ-242HP: 10 to 30VDC Power Consumption: ZUZ-242: 1.5 watts max. ZUZ-242HP: 3 watts max. Power Protection: Reverse power polarity, ESD, Surge, EFT Physical...

Open the catalog to page 7

ZigBee IEEE 802.15.4 I/O Module w/ 8-channel Isolated Digital Input and 16-bit Counter Features Supports 2.4GHz operating frequency Built-in 8-channel isolated digital inputs and 16-bit counter Fully compliant with IEEE 802.15.4-2006 standard Wireless transmission distance up to 100m (LOS) Provides configuration utility software for easy setup Support Modbus RTU and DCON protocols Supports hot swap by using rotary switch and DIP switch ZigBee Solutions The Zebra Series ZUZ-811 is a ZigBee I/O Module with 8-channel Isolated Digital Input and 16-bit Counter. ZUZ-811 is a series product of ZigBee...

Open the catalog to page 8

ZigBee IEEE 802.15.4 I/O Module with 6-channel Isolated Digital Inputs and 4-channel Relay Outputs Features Supports 2.4GHz operating frequency Built-in 6-channel Isolated Digital Inputs and 4-channel Relay Outputs Fully compliant with IEEE 802.15.4-2006 standard Wireless transmission distance up to 100m (LOS) Provides configuration utility software for easy setup Support Modbus RTU and DCON protocols Supports hot swap by using rotary switch and DIP switch Hardware Specifications Digital Input & Counters Input Channels: 6 Input Type: Isolation, Wet Contact (Sink/Source) Input Level: On Voltage...

Open the catalog to page 9

ZigBee IEEE 802.15.4 Device Server Features High Performance Design Supports 2.4GHz operating frequency Fully compliant with IEEE 802.15.4-2006 standard Wireless transmission distance up to 100m (LOS) or 1.6km (LOS) for HP version Connects RS-232/422/485 devices to TCP/IP networks via ZigBee wireless transmission Provides 1 x DB9 RS-232/422/485 serial port Provides 1 x 10/100Base-T(X) Ethernet with RJ-45 connector Supports TCP/Server, TCP/Client, UDP and paired connection mode with heart-beat checking mechanism Virtual COM driver included for backward compatibility Telnet/Serial consoles for...

Open the catalog to page 10
