Ethernet Direct
Industrial Wireless LAN Solutions

Industrial Wireless LAN Solutions

Product catalog summary

Overview: The Falcon Series offers industrial wireless LAN solutions for outdoor applications, compliant with IEEE 802.11 standards. These devices support multiple operating modes and are housed in robust IP-68 or IP-66 enclosures, suitable for harsh environments.

Specifications: Operating in frequency bands from 2.3GHz to 5.8GHz, these devices support data rates up to 108Mbps and include Power over Ethernet (PoE) features. They are designed to withstand extreme temperatures and environmental conditions.

Industrial WiMAX and Mesh Solutions: The series includes WiMAX systems compliant with IEEE 802.16d and wireless mesh solutions for wide-area coverage without extensive wiring.

Security and Management: Security features include WEP, WPA, and MAC address access control. Management is facilitated through web-based interfaces, SNMP support, and site survey tools.

Applications: Ideal for industries such as utilities, process control, mining, and transportation, where robust wireless communication is critical.

Product Naming and Accessories: The document details naming conventions and accessories like antennas and splitters to enhance deployment flexibility.

FWO-701 Features: Compliant with IEEE 802.11b/g, supports 2.4GHz, offers high data rates, multiple operation modes, strong security, and robust IP-68 housing.

FWI-702 Features: Operates in 2.3GHz, includes a built-in directional antenna, supports similar modes and security as FWO-701, with IP-68 housing.

FWI-705 Features: Indoor access point with advanced functions like VLAN, QoS, and multiple SSID, compact design, and built-in antenna.

FWO-712 Features: Similar to FWO-701, supports 2.4GHz, robust design, flexible modes, and strong security.

Regulatory Approvals and Management: Devices comply with CE, FCC, and RoHS standards, with management features like web-based configuration and SNMP support.

Product Variants: Includes FWI-708, FWO-711, and FWO-755, each tailored for specific applications with varying power outputs and antenna configurations.

FWO-755 Specifications: Features optional antenna, PoE support, IP-68 housing, and proprietary 5GHz wireless technology.

FWI-751 Specifications: Built-in directional antenna, PoE support, IP-68 housing, and IEEE 802.11a wireless technology.

FWO-8110H/R Specifications: Dual-band antenna, PoE support, IP-68 housing, and IEEE 802.11a/b/g wireless technology.

Key Features: High-performance wireless technology, robust design, flexible configuration, reliable power design, and strong security.

FWO-800 and FWO-805 Specifications: Operate in 2.4GHz, support AP and mesh operations, PoE support, IP-68 housing, and strong security features.

FWO-714W and FWI-714W Specifications: Comply with IEEE 802.16-2004, provide NLOS coverage, IP-67 housing, and utilize X.509 certification for security.

Antenna Selection Guide: Includes frequency ranges, gain, beamwidth, and mounting options.

Accessories: Details on antenna splitters and lightning arresters, including specifications like insertion loss and breakdown voltage.

Catalog excerpts

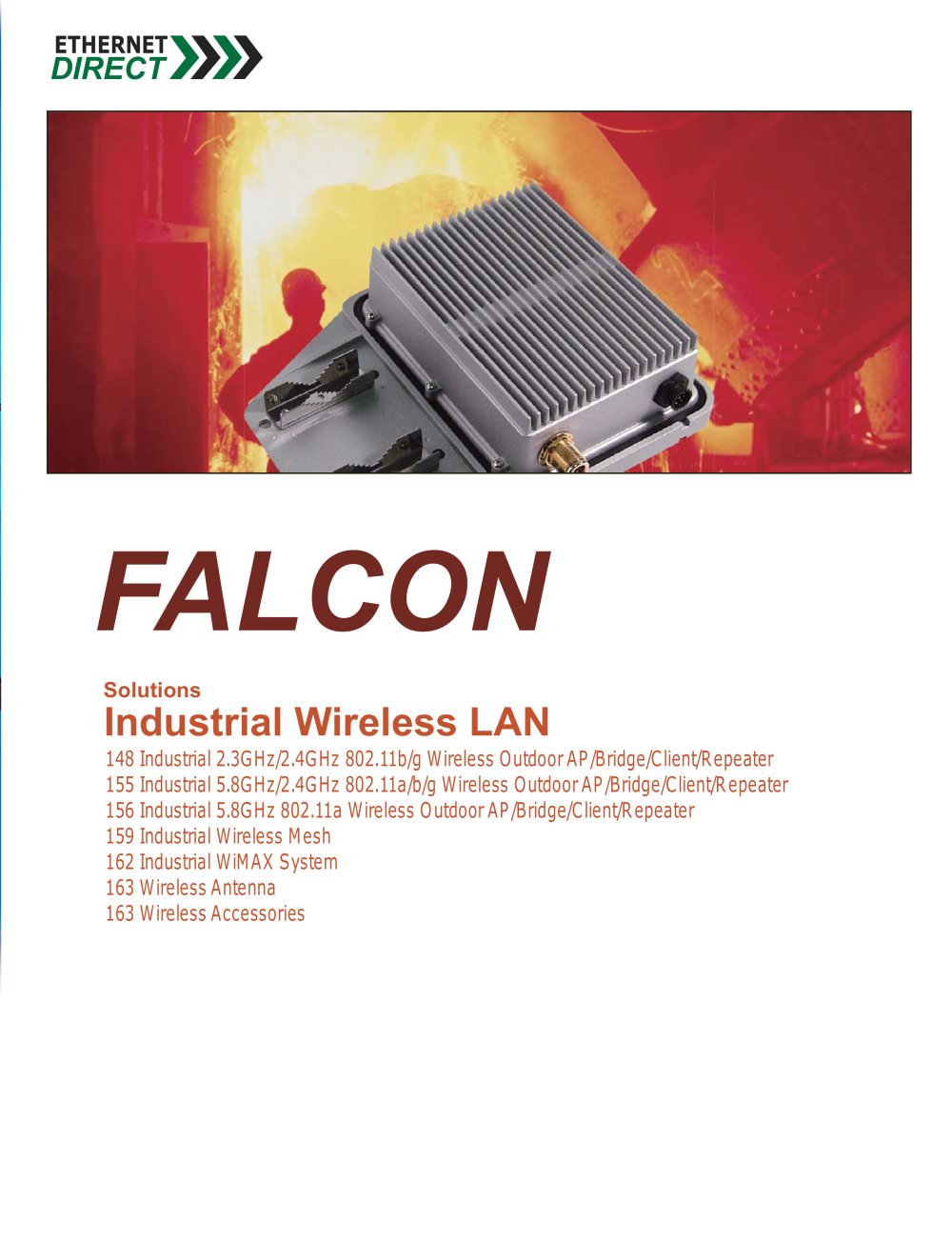

FALCON Solutions Industrial Wireless LAN 148 Industrial 2.3GHz/2.4GHz 802.11b/g Wireless Outdoor AP/Bridge/Client/Repeater 155 Industrial 5.8GHz/2.4GHz 802.11a/b/g Wireless Outdoor AP/Bridge/Client/Repeater 156 Industrial 5.8GHz 802.11a Wireless Outdoor AP/Bridge/Client/Repeater 159 Industrial Wireless Mesh 162 Industrial WiMAX System 163 Wireless Antenna 163 Wireless Accessories

Open the catalog to page 1

Falcon Series Industrial Wireless LAN Solutions Wireless technology has matured rapidly in industrial applications these past few recent years. More applications deploy industrial wireless solutions especially in the industries like Utilities, Process Control, Mining and Transportation. Ethernet Direct offers a diversified range new generation of industrialgrade wireless products to help improve the automation and integration of the manufacturing process, control, security and information in various industries. The Ethernet Direct Falcon Series Industrial Wireless products come with a true robust...

Open the catalog to page 2

Industrial Wireless LAN Device Dimensions FWO-800/805 Industrial Ethernet Switch Solutions

Open the catalog to page 3

Industrial Wireless Outdoor AP/Bridge/Client/Repeater Selection Guide FWI-701 Industrial 2.4GHz 802.11b/g Outdoor Wireless AP/Bridge /Client/Repeater (100mW) Industrial 2.3GHz 802.11b/g Outdoor Wireless AP/Bridge /Client/Repeater (100mW) Industrial 2.4GHz 802.11b/g Indoor Wireless Ceiling Access Point (500mW) Data Rate Hardware Mode of Operation Implementation Compliance Frequency Band Industrial Wireless LAN Solutions Frequency (GHz) 802.11a FCC 5.15-5.825 Frequency (GHz); 802.11b/g FCC 2.412-2.462 (11 channels) CE 2.412-2.472 (13 channels) Output Power Built-in 12dBi directional panel antenna...

Open the catalog to page 4

Industrial Wireless Outdoor AP/Bridge/Client/Repeater Selection Guide FWI-708 Industrial 2.4GHz 802.11b/g Outdoor Wireless AP/Bridge /Client/Repeater (800mW) Industrial 5.8GHz 802.11a Outdoor Wireless AP/Bridge /Client/Repeater (100mW) Industrial 2.4GHz 802.11b/g Outdoor Wireless AP/Bridge /Client/Repeater (100mW) Data Rate Hardware Mode of Operation Implementation Compliance Frequency Band Frequency (GHz); 802.11b/g FCC 2.412-2.462 (11 channels) CE 2.412-2.472 (13 channels) Output Power Built-in 15dBi directional panel antenna Built-in 12dBi directional panel antenna (Beamwidth Degree: Horz....

Open the catalog to page 5

Industrial Wireless Outdoor AP/Bridge/Client/Repeater Selection Guide FWO-708 Industrial 2.4GHz 802.11b/g Outdoor Wireless AP/Bridge /Client/Repeater (800mW) Industrial Dual Band 5.8/ 2.4GHz 802.11a/b/g Outdoor Wireless AP/Bridge/Client/ Repeater (100mW) Industrial 2.4GHz 802.11b/g Outdoor Wireless AP/Bridge /Client/Repeater (100mW) Data Rate Optional; N-type female (50ohm) Optional; N-type female (50ohm) Optional; N-type female (50ohm) Regulatory Approvals Global Warranty Access Control by MAC WEP/WPA Hardware Mode of Operation Implementation Compliance Frequency Band Industrial Wireless LAN...

Open the catalog to page 6

Industrial Wireless Outdoor AP/Bridge/Client/Repeater Selection Guide FWO-751 Industrial 5.8GHz 802.11a Outdoor Wireless AP/Bridge /Client/Repeater (100mW) Industrial 5.8GHz Proprietary 802.11 Outdoor Wireless PtP Bridge (300mW) Wireless TDMA for Low Lentancy Solution Data Rate Optional; N-type female (50ohm) Optional; N-type female (50ohm) Regulatory Approvals Global Warranty Hardware Mode of Operation Implementation Compliance Frequency Band Frequency (GHz); 802.11b/g FCC 2.412-2.462 (11 channels) CE 2.412-2.472 (13 channels) Output Power Operating Temperature Industrial Wireless LAN Solutions...

Open the catalog to page 7

Industrial Wireless Mesh Selection Guide Industrial WiMAX Selection Guide FWO-800 Industrial 2.4GHz 802.11b/g Outdoor Wireless Mesh System (100mW) Industrial 2.4GHz 802.11b/g Outdoor Wireless Mesh System (500mW) Industrial 5.8GHz/2.4GHz 802.11a/b/g Outdoor Layer 3 Wireless Mesh Gateway and Relay System Industrial 5.8GHz 802.16d Fixed WiMAX Base Station and Subscriber Station Base Station/Subscriber Station Hardware Mode of Operation Implementation Data Rate 1 FWO-714W: Optional; N-type female (50ohm) FWI-714W: Built-in 18dBi directional panel antenna Compliance Frequency Band Industrial Wireless...

Open the catalog to page 8

Industrial 2.4GHz 802.11b/g Outdoor Wireless AP/Bridge/Client/Repeater (100mW) Features High Performance Wireless Technology Compliant with IEEE standards Supports radio frequency band from 2.412 to 2.472GHz Super G transmission with transmit data rate up to 108Mbps Point to point (PtP) and point to multi-point (PtMP) implementation supported Flexible operating modes (AP/Client/Bridge/Repeater) Flexible software configuration with WEB GUI interface Remote Telnet for easy management Strong network security with 64/128/152-bit WEP Reliable Power Design Supports passive PoE design Supports power...

Open the catalog to page 9

Industrial 2.4GHz 802.11b/g Outdoor Wireless AP/Bridge/Client/Repeater (100mW) Features High Performance Wireless Technology Compliant with IEEE standards Supports radio frequency band from 2.412 to 2.472GHz Super G transmission with transmit data rate up to 108 Mbps Point to point (PtP) and point to multi-point (PtMP) implementation supported Flexible operating modes (AP/Client/Bridge/Repeater) Flexible software configuration via WEB GUI interface Remote Telnet for easy management Strong network security with 64/128/152-bit WEP encryption and WPA protection Reliable Power Design Supports passive...

Open the catalog to page 10

Industrial 2.3GHz 802.11b/g Outdoor Wireless AP/Bridge/Client/Repeater (100mW) Features High Performance Wireless Technology Compliant with IEEE standards Supports radio frequency band from 2.312 to 2.372GHz Point to point (PtP) and point to multi-point (PtMP) implementation supported Flexible operating modes (AP/Client/Bridge/Repeater) Flexible software configuration via WEB GUI interface Remote Telnet for easy management Strong network security with 64/128/152-bit WEP encryption and WPA protection Reliable Power Design Supports passive PoE design Supports power input at 48VDC ± 5%; 0.4A (Max.);...

Open the catalog to page 11

Industrial 2.4GHz 802.11b/g Indoor Wireless Ceiling Access Point (500mW) Features High Performance Wireless Technology Compliant with IEEE standards Supports radio frequency band from 2.412 to 2.472GHz Flexible operating modes (AP/Repeater/AP+WDS ) Supports advanced wireless functions of Profile Isolation, Station Separation, VLAN and Priority, WMM(Qos), Multiple SSID with VLAN Tagging, and VPN Pass-Through (PPTP, L2TP, IPSEC) Flexible software configuration via WEB GUI interface Remote Telnet for easy management Strong network security with 64/128/152-bit WEP encryption and WPA/WPA2 protection...

Open the catalog to page 12
