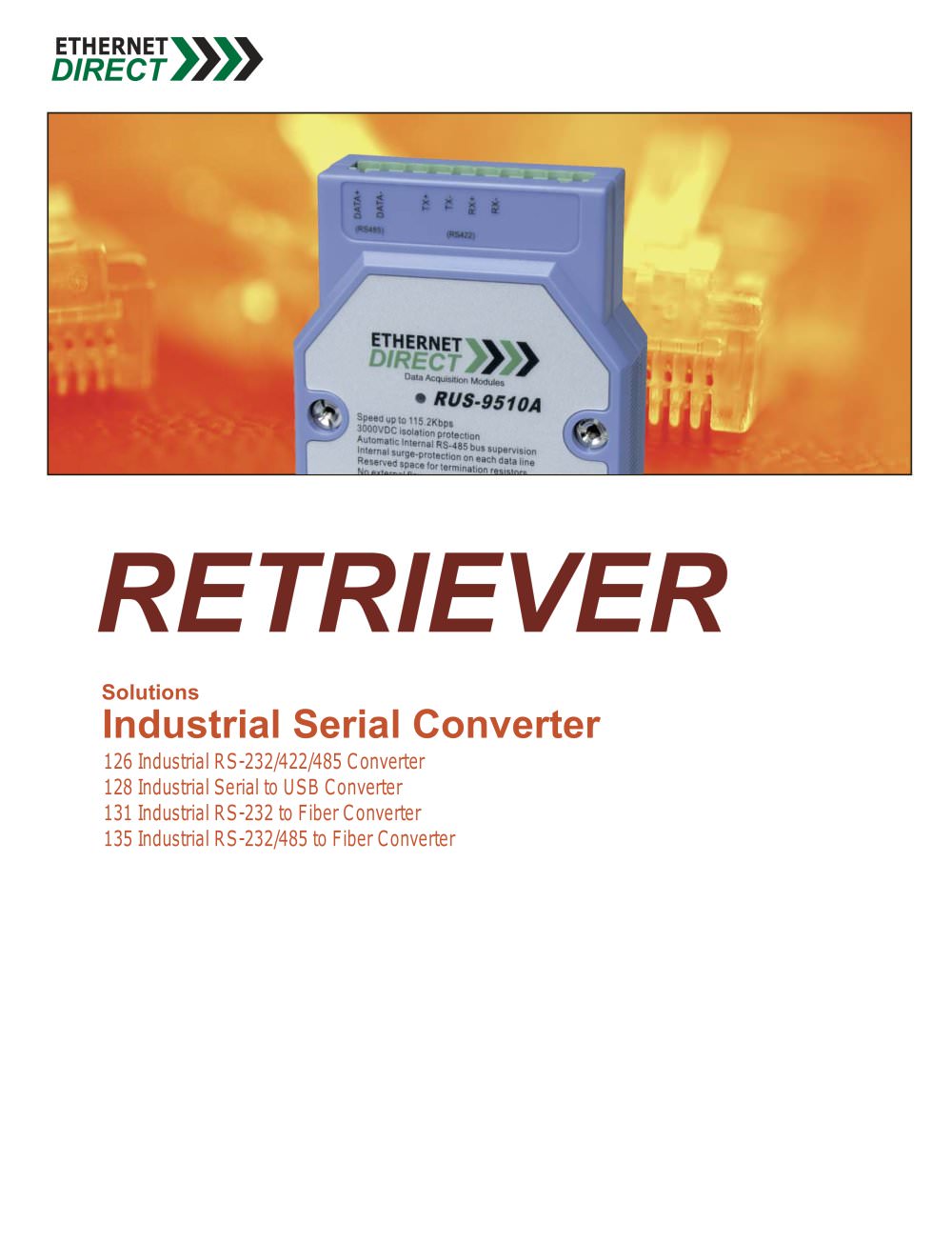

RETRIEVER Solutions Industrial Serial Converter 126 Industrial RS-232/422/485 Converter 128 Industrial Serial to USB Converter 131 Industrial RS-232 to Fiber Converter 135 Industrial RS-232/485 to Fiber Converter

Retriever Series Industrial Serial Converter Solutions Serial communication is used for all long-haul communication and network where the costs of cable and synchronization difficulties make parallel communication impractical. Ethernet Direct has Retriever Series Industrial Serial to Serial, Serial to Fiber, and Serial to USB converter product solutions based on various interfaces, features and environmental parameters to provide users with more flexible options in serial media conversion. RS-232 stands for Recommended Standard 232C. This standard provides asynchronous communication...

Industrial Serial Converter Dimensions RUS-115MTD/115MCD/115STD/115SCD Industrial Serial Converter Solutions

Industrial Serial to Serial or USB Converter Selection Guide RUS-9510A Industrial Isolated RS-422/485 Repeater Industrial Isolated Industrial Isolated RS-232 to RS-422/485 USB to RS-232/422/485 Converter Converter Hardware Input USB Port Isolation Protection Supported Baud Rate Industrial Serial Converter Solutions RS-232 Signals Communication Distance Power Input ABS with mounting hardware DIN-Rail or panel mounting ABS with mounting hardware DIN-Rail or panel mounting ABS with mounting hardware DIN-Rail or panel mounting Regulatory Approvals Global Warranty Power Consumption Housing...

Industrial Serial to Fiber Converter Selection Guide RS-232 to Multi-mode ST Fiber Converter RS-232 to Multi-mode SC Fiber Converter Fiber Connector Communication Distance Power Input Power Consumption DIN-Rail or wall mounting DIN-Rail or wall mounting DIN-Rail or wall mounting DIN-Rail or wall mounting Operating Temperature Regulatory Approvals Global Warranty RS-232 to Single-mode RS-232 to Single-mode ST Fiber Converter SC Fiber Converter Hardware Serial Port Serial Connector Fiber Port Data Rate 4 Wire Asynchronous Transmission Surge Protection EFT Power Line Protection ESD (Ethernet...

Industrial Serial to Fiber Converter Selection Guide RUS-125MTT RS-422/485 to Multi-mode ST Fiber Converter RS-422/485 to Multi-mode SC Fiber Converter RS-422/485 to Single-mode ST Fiber Converter RS-422/485 to Single-mode SC Fiber Converter Hardware Serial Port Terminal Block Terminal Block Terminal Block Terminal Block Fiber Connector Communication Distance 2 Wire Asynchronous Transmission 4 Wire Asynchronous Transmission Power Input Power Consumption DIN-Rail or wall mounting DIN-Rail or wall mounting DIN-Rail or wall mounting DIN-Rail or wall mounting Operating Temperature Regulatory...

Industrial Isolated RS-422/485 Repeater Features High Performance Design Automatic internal RS-422/485 bus supervision No external flow control signals required for RS-485 Transient suppression on RS-485 data lines Supported baud rate up to 115.2Kbps Reach distance up to 1.2km Reserved space for termination resistors (R8,R9) Reliable Power Design Minimum 3000VDC isolation protection Power and data flow indicator for troubleshooting Supports unregulated 10 to 30VDC power input Robust Industrial Design Robust ABS housing with captive mounting hardware Supports operating temperature -25 to...

Industrial Isolated RS-232 to RS-422/485 Converter Features High Performance Design Converts RS-232 to RS-422/485 Automatic internal RS-422/485 baud rate control Auto switching baud rate 300bps to 115.2Kbps Supports multiple baud rates Supports multiple data formats Supports 256 modules maximum in one RS-485 network without a repeater Reliable Power Design Minimum 3000VDC isolation protection Power and data flow indicator for easy troubleshooting Supports unregulated 10 to 30VDC power input Robust Industrial Design Robust ABS housing with captive mounting hardware Supports operating...

Industrial Isolated USB to RS-232/422/485 Converter Features High Performance Design USB specification 1.1 compliant Auto direction flow control on RS-485 Full-Duplex RS-232/RS-422 supported RS-232 supports RTS & CTS handshake signals Transient suppression on RS-485 data lines Auto switching for USB to RS-232/RS-422 or RS-485 (jumper-less) Auto switching baud rate up to 115.2Kbps Reserved space for termination resistors R1 (TX/DATA), R2(RX) Driver support for Windows 95/98/ME/2000/XP, Linux Reliable Power Design Minimum 3000VDC isolation protection Power and data flow indicator for easy...

4-Port RS-232 to USB Converter Features High Performance Design Provides 4 x DB9 male connectors Baud rates from 75bps to 6Mbps 512-byte deep FIFOs for each port Supports 5, 6, 7, 8 data bits Odd, Even, Mark, Space, or None parity mode Supports 1, 1.5 and 2 stop bits Supports USB bus power DC Jack for optional 5VDC power input Optional 5VDC over DB9 male connector Supports operating system Windows 98SE/Me/XP/2000/2003 System Requirements IBM PC 486DX4-100MHz CPU or higher or compatible systems Available USB port CD-ROM drive installed Windows 98SE/Me/XP/2000/200 Industrial Serial Converter...

8-port USB to RS-232 Converter Features High Performance Design Provides 8 x DB9 male connectors Baud rates from 75bps to 6Mbps 512-byte deep FIFOs for each port Supports 5, 6, 7, 8 data bits Odd, Even, Mark, Space, or None parity mode Supports 1, 1.5 and 2 stop bits Supports USB bus power DC Jack for optional 5VDC power input Optional 5VDC over DB9 male connector Supports operating system Windows 98SE/Me/XP/2000/2003 Reliable Power Design IBM PC 486DX4-100MHz CPU or higher or compatible systems Available USB port CD-ROM drive installed Windows 98SE/Me/XP/2000/2003 Industrial Serial...

RS-232 to Multi-mode ST Fiber Converter Features High Performance Design Complies with EIA/TIA-232, EIA/TIA-574 and CCITT V.28 standard Provides 1 x RS-232 with DB9 male connector Provides 1 x 100FX multi-mode fiber port with ST connector Supports asynchronous data transfer rate up to 115.2Kbps DTE, DCE push button setting available Reliable Power Design Supports 9 to 32VDC power input External power adapter available for different power plug standards Robust Industrial Design Robust metal housing Supports operating temperature 0 to 60°C DIN-Rail or wall mounting installation Industrial...
