Catalog excerpts
![Industrial Remote Monitering Solutions - 1](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_1m.jpg)

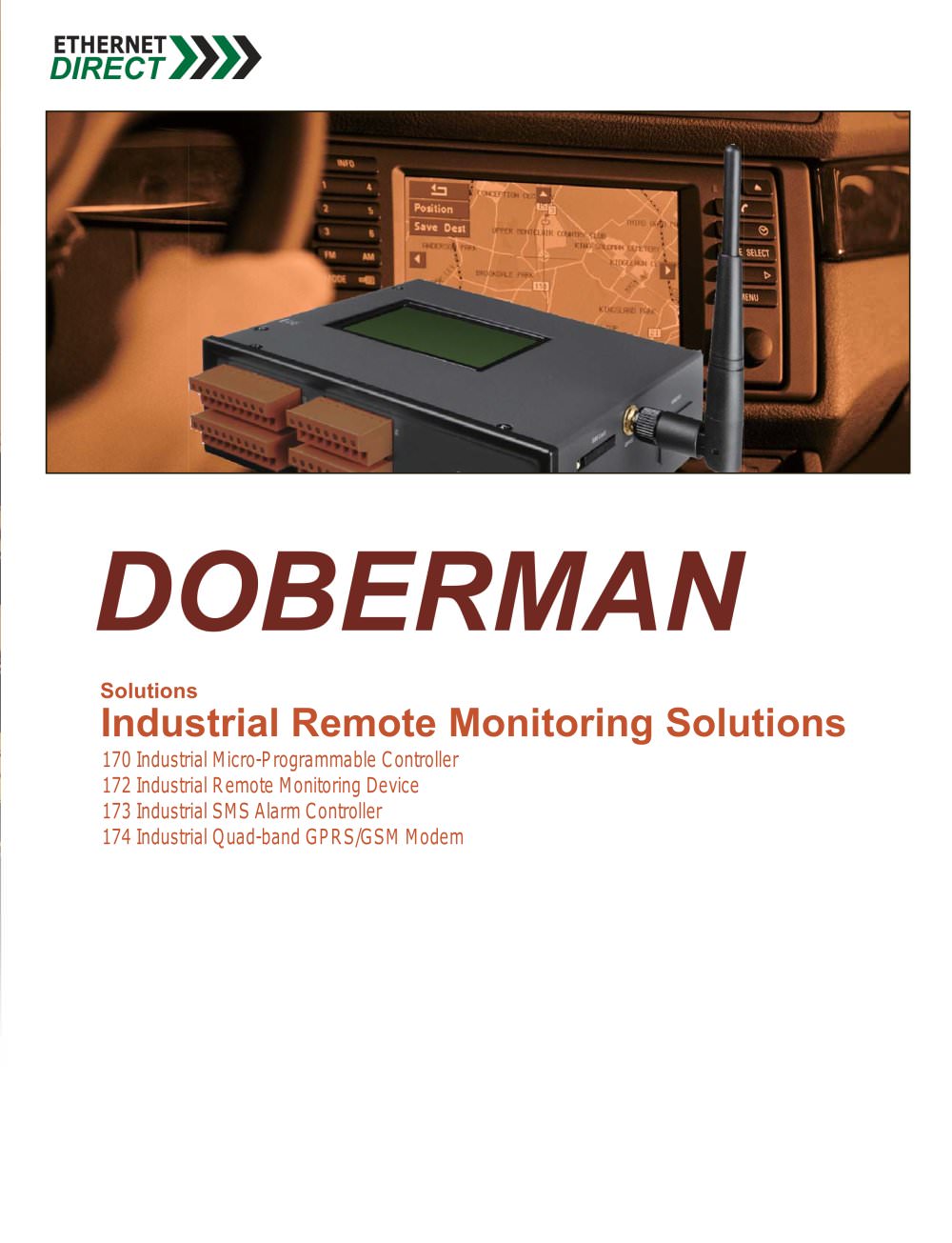

Industrial Remote Monitoring Solutions 170 Industrial Micro-Programmable Controller 172 Industrial Remote Monitoring Device 173 Industrial SMS Alarm Controller 174 Industrial Quad-band GPRS/GSM Modem
Open the catalog to page 1![Industrial Remote Monitering Solutions - 2](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_2m.jpg)
Doberman Series Industrial Remote Monitoring Solutions Doberman Series Industrial Remote Monitoring Solutions allow an operator or engineer to monitor, control or manage devices via wireless internet telemetry. It works as a tracking system when incorporated in industrial devices. It functions as a M2M (machine to machine) controller that can monitor an industrial equipment to send real-time data to the monitoring system in order to provide real-time status. Ethernet Direct offers Doberman Series Industrial Remote Monitoring Solutions with major technologies modernization not commonly found...
Open the catalog to page 2![Industrial Remote Monitering Solutions - 3](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_3m.jpg)
Industrial Remote Monitoring Device Dimensions DGM-410/412 Industrial Remote Monitoring Solutions
Open the catalog to page 3![Industrial Remote Monitering Solutions - 4](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_4m.jpg)
Industrial Remote Monitoring Selection Guide Industrial M2M TriIndustrial SMS Alarm Industrial Quad-Band Industrial Quad-Band Band/Quad-Band Micro-Programmable Controller with GRPS/GSM GRPS/GSM Modem Automation RS-232 and DI/DO Modem with USB with RS-232 Controller with GPS Industrial M2M TriBand/Quad-Band Micro-Programmable Automation Controller with LCD Display and GPS Industrial Remote Monitoring Device w/ Voice Streaming Function Interface Ethernet Port Serial Port DIO Port GPRS/GSM Audio Input/Output Industrial Remote Monitoring Solutions LCD Display Functions GPRS/GSM GPS SMS Protocol...
Open the catalog to page 4![Industrial Remote Monitering Solutions - 5](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_5m.jpg)
Industrial Tri-Band/Quad-Band M2M Micro-Programmable Automation Controller with GPS Features 1 x 10/100Base-T(X) RJ-45 connector COM1 (5-wire RS-232), COM2 (RS-485), COM3 (3-wire RS-232) Built-in self-tuner ASIC controller on RS-485 port Built-in I/Os: 3 x DI, 3 x DO and 8 x AI Supports SD storage card Supports Modbus protocol Supports Virtual COM Supports TCP/UDP/IP/ICMP/ARP Supports TCP Server/TCP Client/UDP Client connection from GPRS GPRS/GSM: Tri-Band 900/1800/1900 MHz or Quad-Band 850/900/1800/1900 MHz GPS with 32 channels All-In-View tracking Hardware Specifications Main Board CPU:...
Open the catalog to page 5![Industrial Remote Monitering Solutions - 6](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_6m.jpg)
Industrial Tri-Band/Quad-Band M2M Micro-Programmable Automation Controller with LCD Display and GPS Features 1 x 10/100Base-T(X) RJ-45 connector COM1 (5-wire RS-232), COM2 (RS-485), COM3 (3-wire RS-232) Built-in self-tuner ASIC controller on RS-485 port Built-in I/Os: 3 x DI, 3 x DO and 8 x AI Built-in 128 x 64 dots LCD display Supports SD storage card Supports Modbus protocol Supports Virtual COM Supports TCP/UDP/IP/ICMP/ARP Supports TCP Server/TCP Client/UDP Client connection from GPRS GPRS/GSM: Tri-Band 900/1800/1900MHz or Quad-Band 850/900/1800/1900MHz GPS with 32 channels All-In-View...
Open the catalog to page 6![Industrial Remote Monitering Solutions - 7](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_7m.jpg)
Industrial Remote Monitoring Device with Voice Streaming Function Features Supports voice streaming on network Provides pair connection on network Web-based administration Linux 2.6 platform Supports TCP/IP protocols Provides dynamic DNS function Provides event record and e-mail function Built-in Web Server/FTP Server Built-in RTC Built-in self-tuner ASIC chip for RS-485 port Supports 2500V isolation on RS-485 port Robust metal housing with fan less design Hardware Specifications Main Board CPU: xScale PXA-255 400 MHz processor Flash: 32MB SDRAM: 64MB SRAM: 256KB Serial Interface COM1:...
Open the catalog to page 7![Industrial Remote Monitering Solutions - 8](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_8m.jpg)
Industrial SMS Alarm Controller with RS-232 and DI/DO Features Supports 900/1800/1900MHz Tri-band frequency Identify ASCII or Unicode SMS automatically Supports max. 140 ASCII characters Supports max. 70 Unicode characters Supports ASCII commands and SMS tunnel communication modes Supports max. 10 default phone numbers Built-in RTC and watchdog functions Supports SMS setting and control 10 x DI (6 Counter), 2 x DO, 2 x RS-232 ports Digital input support NC (normal close)/NO (normal open)/Counter modes Supports sending alarm SMS by DI trigger or exceed counter preset limits Supports simple...
Open the catalog to page 8![Industrial Remote Monitering Solutions - 9](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_9m.jpg)
Industrial Quad-Band GRPS/GSM Modem with USB Features Quad-band GPRS/GSM modem operating on 850/900/1800/1900MHz Designed for GPRS, SMS, Data, Fax, and Voice applications Supports voice streaming on network Supports TCP Server/TCP Client/UDP Client connection from GPRS Supports standard AT commands Built-in digital input channel for resetting the system Supports microphone input and speaker (32Ω) output via .3.5mm phone jacks Provides LED indicators for GSM and power indication The built-in USB compliant with USB 1.1/2.0 standards Hardware Specifications GPRS/GSM System GPRS/GSM Quad-band:...
Open the catalog to page 9![Industrial Remote Monitering Solutions - 10](https://img.directindustry.com/pdf/repository_di/39231/industrial-remote-monitering-solutions-134868_10m.jpg)
Industrial Quad-Band GRPS/GSM Modem with RS-232 Features Quad-band GPRS/GSM modem operating on 850/900/1800/1900MHz Designed for GPRS, SMS, Data, Fax, and voice applications Supports voice streaming on network Supports TCP Server/TCP Client/UDP Client connection from GPRS Supports standard AT commands Built-in digital input channel for resetting the system Supports microphone input and speaker (32Ω) output via .3.5mm phone jacks Provides LED indicators for GSM and power indication Supports baud rate from 9600bps to 115.2Kbps for serial RS-232 interface Industrial Remote Monitoring Solutions...
Open the catalog to page 10All Ethernet Direct catalogs and technical brochures
-
