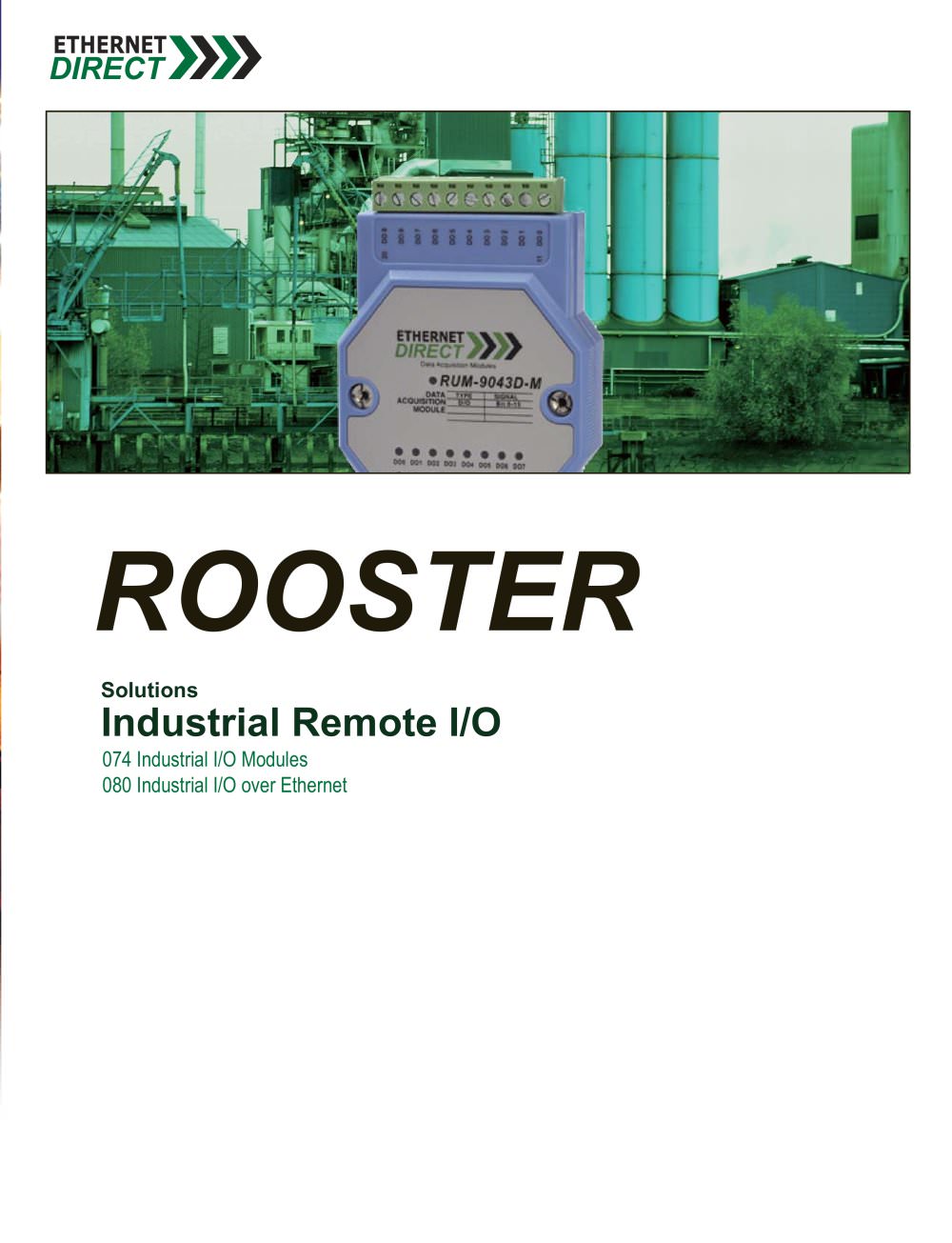

ROOSTER Solutions Industrial Remote I/O 074 Industrial I/O Modules 080 Industrial I/O over Ethernet

Rooster Series Industrial Remote I/O Solutions Remote I/O modules are used to provide a remote method of acquiring sensor-based data. There is a variety of models according to the type and range of input. The unit is not only a standard I/O, but also an intelligent system designed with local control functions and a Modbus/TCP standard for users to easily develop various applications over Ethernet. Ethernet Direct Rooster Series Industrial Remote I/O modules are designed specifically for reliable operations in harsh environments. The RUM Series modules accept any unregulated power source between...

Industrial Remote I/O Dimensions RWM-623/824/1611/1612/1623/824-POE/1611-POE/61234 20.00 Industrial Remote I/O Dimensions

Industrial I/O Module Selection Guide Model RUM-9017F 8-channel (Diff) Analog Input Module RUM-9024 4-channel (12 bit) Analog Output Module RUM-9043D 16-channel Open Collector Digital Output Module I/O Interface Analog Input Analog Output Digital Output Hardware Power Input Industrial Remote I/O Solutions Power Consumption Isolation Protection Watchdog Timer Input Impedance Surge Protection Operating Temperature Regulatory Approvals CE/FCC

Industrial I/O Module Selection Guide Model 16-channel Digital Input Module I/O Interface Analog Input Analog Output Digital Input Digital Output Hardware Power Input Isolation Protection Watchdog Timer Input Impedance Surge Protection Operating Temperature Regulatory Approvals CE/FCC Industrial Remote I/O Solutions Power Consumption

Industrial Remote I/O Selection Guide Model Industrial 6-channel Digital Output and 12-channel Digital Input Ethernet Module Industrial 8-channel Sink Type Digital Output and 8-channel Digital Input Ethernet Module Industrial 8-channel Source Type Digital Output and 8-channel Digital Input Ethernet Module Industrial 16-channel Digital Input Wet Contact Ethernet Module Digital Input Digital Output Power Consumption Isolation Protection Sink, Open Collector Sink, Open Collector Source, Open Collector Digital Input type Wet Contact (Sink, Source) Wet Contact (Sink, Source) Wet Contact (Sink, Source)...

Industrial Remote I/O Selection Guide Model Industrial 16-channel Digital Input Dry Contact Ethernet Module Industrial 16-channel Sink Type Open Collector Digital Output Ethernet Module Industrial 6-channel Analog Input/2-channel Analog Output/2-channel Digital Input/2-channel Digital Output Ethernet I/O Module Number of Ports 10/100Base-T(X) 10/100Base-T(X) with PoE Analog Input Analog Output Digital Input Digital Output Power Consumption Isolation Protection Sink, Open Collector Source, Open Collector Hardware Power Input Watchdog Timer Digital Ouput Type Digital Input type Input Impedance...

Industrial Remote I/O Selection Guide Model RWM-824-PoE Industrial 8-channel Source Type Digital Output and 12-channel Digital Input Power Over Ethernet Module RWM-1611-PoE Industrial 16-channel Digital Input Power over Ethernet Module with 32-bit Counters Number of Ports 10/100Base-T(X) 10/100Base-(TX) with PoE Digital Input Digital Output Analog Output Industrial Remote I/O Solutions Hardware Power Input Powered by PoE or auxiliary power 12VDC (non-regulated) Powered by PoE or auxiliary power 12VDC (non-regulated) Power Consumption Isolation Protection Watchdog Timer Digital Ouput Type Source,...

8-channel (Diff) Analog Input Module Features Reliable Power Design Supports 10 to 30VDC power input High Performance Design 12-bit resolution with 8 differential inputs Built-in dual watchdog timer Software configurable Supports 3000V isolation Robust Industrial Design Robust ABS housing with captive mounting hardware Supports wide operating temperature -25 to 75ºC Hardware Specifications I/O Interface Resolution: 12 bit Analog I/P Channel: 8 diff Sampling Rate: 75Hz Voltage I/P: +/- 150mV, +/- 500mV, +/-1V, +/-5V, +/-10V Current I/P: +/-20mA Isolation: 3000V Dual Watchdog Timer: Yes Power Requirements...

4-channel Analog Output Module Features High Performance Design 12-bit resolution with 4 channel outputs Built in dual watchdog timer Software configurable Reliable Power Design Supports 10 to 30VDC power input Robust Industrial Design Robust ABS housing with captive mounting hardware Supports wide operating temperature -25 to 75ºC Industrial Remote I/O Solutions The Rooster Series RUM-9024 is 12-bit, 4 channel analog output module. The RUM Series offers a complete analog I/O selection, including analog input and analog output modules. These modules can be easily configured for different types...

16-channel Open Collector Digital Output Module Features Reliable Power Design Supports 10 to 30VDC power input High Performance Design 16 open collector digital output channels Built-in dual watchdog timer Software configurable Robust Industrial Design Robust ABS housing with captive mounting hardware Supports wide operating temperature -25 to 75ºC Hardware Specifications I/O Interface Digital O/P Channel: 16 open collector Load Voltage: 30V max. Load Current: 100mA max. load Dual Watchdog Timer: Yes Environmental Operating Temperature: -25 to 75ºC Storage Temperature: -40 to 80ºC Operating...

16-channel Digital Input Module Features Reliable Power Design Supports 10 to 30VDC power input High Performance Design 16 digital input channels Built-in dual watchdog timer Software configurable Robust Industrial Design Robust ABS housing with captive mounting hardware Supports wide operating temperature -25 to 75ºC Industrial Remote I/O Solutions The Rooster Series RUM-9053D is a data acquisition module with 16 digital input channels. The RUM Series offers a complete analog I/O selection, including analog input and analog output modules. These modules can be easily configured for different...

4-channel D/I and 4-channel D/O Relay I/O Module Features High Performance Design 4 digital output channels 4 digital input channels Built-in dual watchdog timer Software configurable Supports 3750Vrms isolation with common source Reliable Power Design Supports 10 to 30VDC power input Robust Industrial Design Robust ABS housing with captive mounting hardware Supports wide operating temperature -25 to 75ºC Hardware Specifications I/O Interface Digital O/P Channel: 4 Relay Type: Form A Contact Rating: RL1, RL2: Form A RL3, RL4: Form C Surge Strength: 500V Digital I/P Channel: 4 Isolation: Isolation...
