Industrial PROFIBUS & PROFINET Solutions
Industrial PROFIBUS & PROFINET Solutions
The document provides detailed information on the Panda Series Industrial PROFIBUS & PROFINET solutions, focusing on the PROFIBUS to Serial Converter (PUP-550) and the PROFIBUS/Modbus Gateway (PUP-552). PROFIBUS is an open standard for field bus communication in automation technology, suitable for both production and process automation.
Specifications
- PUP-550 (PROFIBUS to Serial Converter): Designed for slave devices of PROFIBUS DP protocol, it supports RS-232, RS-422, and RS-485 communication. It features automatic transmission rate detection, 128 bytes max input data length, and several baud rates for COM1. It includes 3000VDC isolation protection and 4000VDC ESD protection.
- PUP-552 (PROFIBUS to Modbus Gateway): Allows PROFIBUS master to access Modbus devices. It supports Modbus Master and Slave modes, RTU and ASCII formats, and features similar protection and transmission capabilities as the PUP-550.
Hardware and Environmental Specifications
- Both devices have a power input range of 10 to 30VDC, with a maximum power consumption of 2.5 watts at 24VDC.
- They are equipped with reverse power polarity, over current, and over voltage protection.
- Physical dimensions are 72mm (W) x 118mm (H) x 33mm (D), suitable for DIN Rail installation.
- Operating temperature ranges from -25 to 75ºC, with storage temperatures from -40 to 85ºC.
- Both devices are CE/FCC certified and comply with WEEE and RoHS environmental standards.
Applications
The devices are applicable in factory automation, process automation, drives & motor control, and functional safety. They facilitate the integration of various devices such as remote I/O, drives, motor starters, weighing & dosing systems, human-machine interfaces, and energy systems into the PROFIBUS network.
Conclusion
The Panda Series provides robust solutions for integrating serial and Modbus devices into PROFIBUS networks, ensuring high-speed communication, safety, and stability in industrial applications.
Catalog excerpts

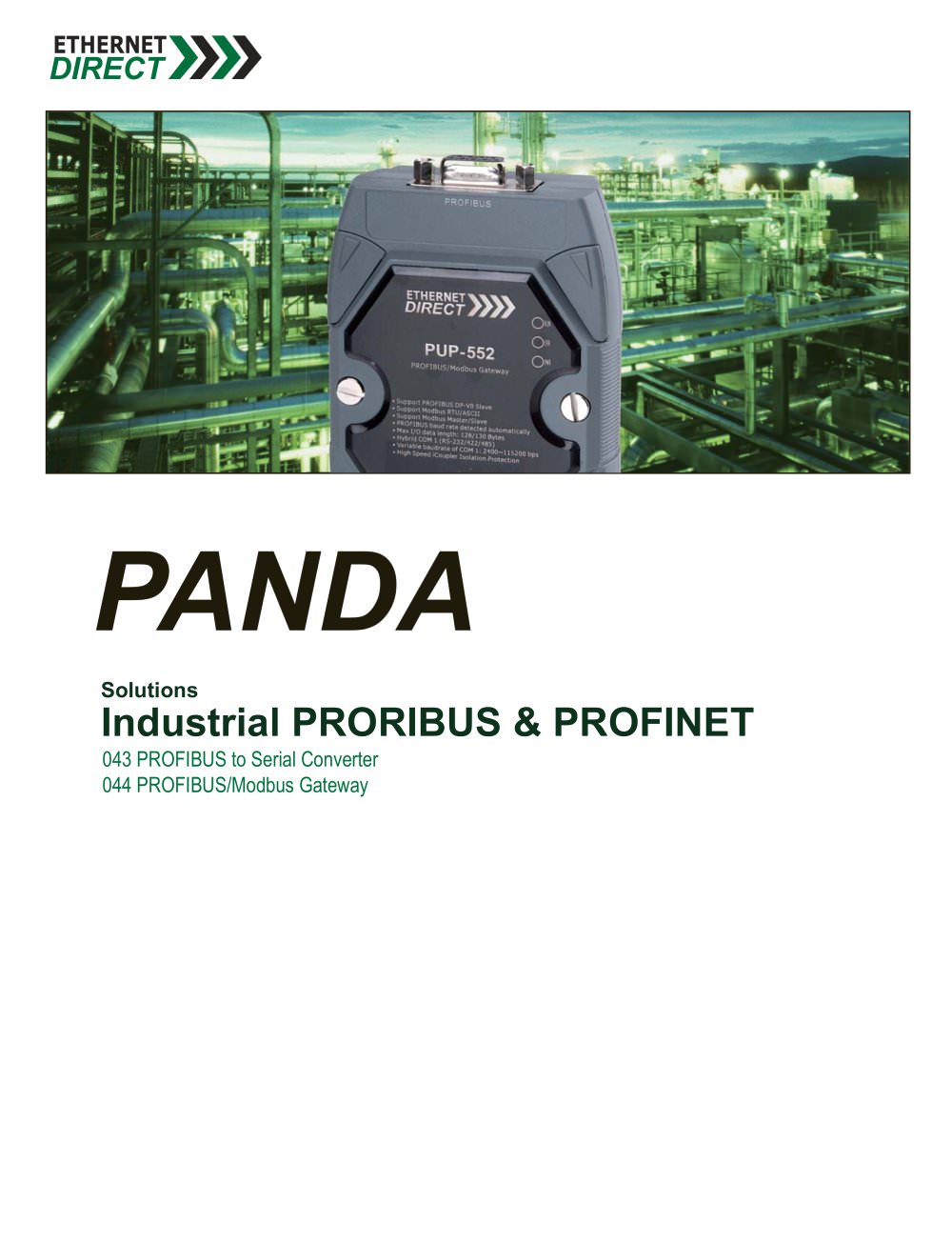

PANDA Solutions Industrial PRORIBUS & PROFINET 043 PROFIBUS to Serial Converter 044 PROFIBUS/Modbus Gateway
Open the catalog to page 1
Panda Series Industrial PROFIBUS & PROFINET Solutions PROFIBUS (Process Field Bus) is an open standard for field bus communication in automation technology. There are two variations of PROFIBUS; the most commonly used DP (Decentralized Peripherals) and the lesser used PA (Process Automation). PROFIBUS is the only field bus that can be used in equal measure in production automation and process automation. Ethernet Direct Panda Series PROFIBUS DP products are in production technology as well as in the connection of distributed intelligence such as the networking of multiple controllers to one another....
Open the catalog to page 2
Industrial PROFIBUS Solutions Selection Guide Industrial PROFIBUS to Serial Converter Industrial PROFIBUS to Modbus Gateway RS-232/422/485 with terminal block connector RS-232/422/485 with terminal block connector PROFIBUS Protection Operating Temperature Conversion from end devices w/ serial interface to PROFIBUS slave devices Conversion from end devices w/ Modbus protocol to PROFIBUS slave devices Interface Serial Interface PROFIBUS Interface Hardware Power Input Regulatory Approvals CE/FCC Industrial PROFIBUS & PROFINET Solutions
Open the catalog to page 3
Industrial PROFIBUS to Serial Converter Features Protocol & Hierarchy: DP-V0 Slave Automatic transmission rate (9.6 to 12000kbps) detection 128 bytes max input data length 126 sets of addresses by DIP switch or EEPROM Several baud rates for COM1 from 1.2 to 115.2kbps Built-in self-tuner ASIC controller on RS-422/485 port Network Isolation Protection: High Speed iCoupler 3000VDC isolation protection on PROFIBUS side 4000VDC ESD protection Mountable on DIN-Rail Watchdog supported Industrial PROFIBUS & PROFINET Solutions The Panda PUP-550 is a PROFIBUS to RS-232/422/485 converter especially designed...
Open the catalog to page 4
Industrial PROFIBUS to Modbus Gateway Features Protocol & Hierarchy: DP-V0 Slave Automatic transmission rate (9.6 to 12000kbps) detection 128 bytes max input data length 130 bytes max output data length Supports Modbus Master and Slave mode Supports Modbus RTU and ASCII format 126 sets of addresses by DIP switch or EEPROM Several baud rates for COM1 from 1.2 to 115.2kbps Network Isolation Protection: High Speed iCoupler 3000VDC isolation protection on PROFIBUS side 4000VDC ESD Protection Watchdog supported Hardware Specifications Interface Modbus Interface: 1 x RS-232/422/485 serial port, terminal...
