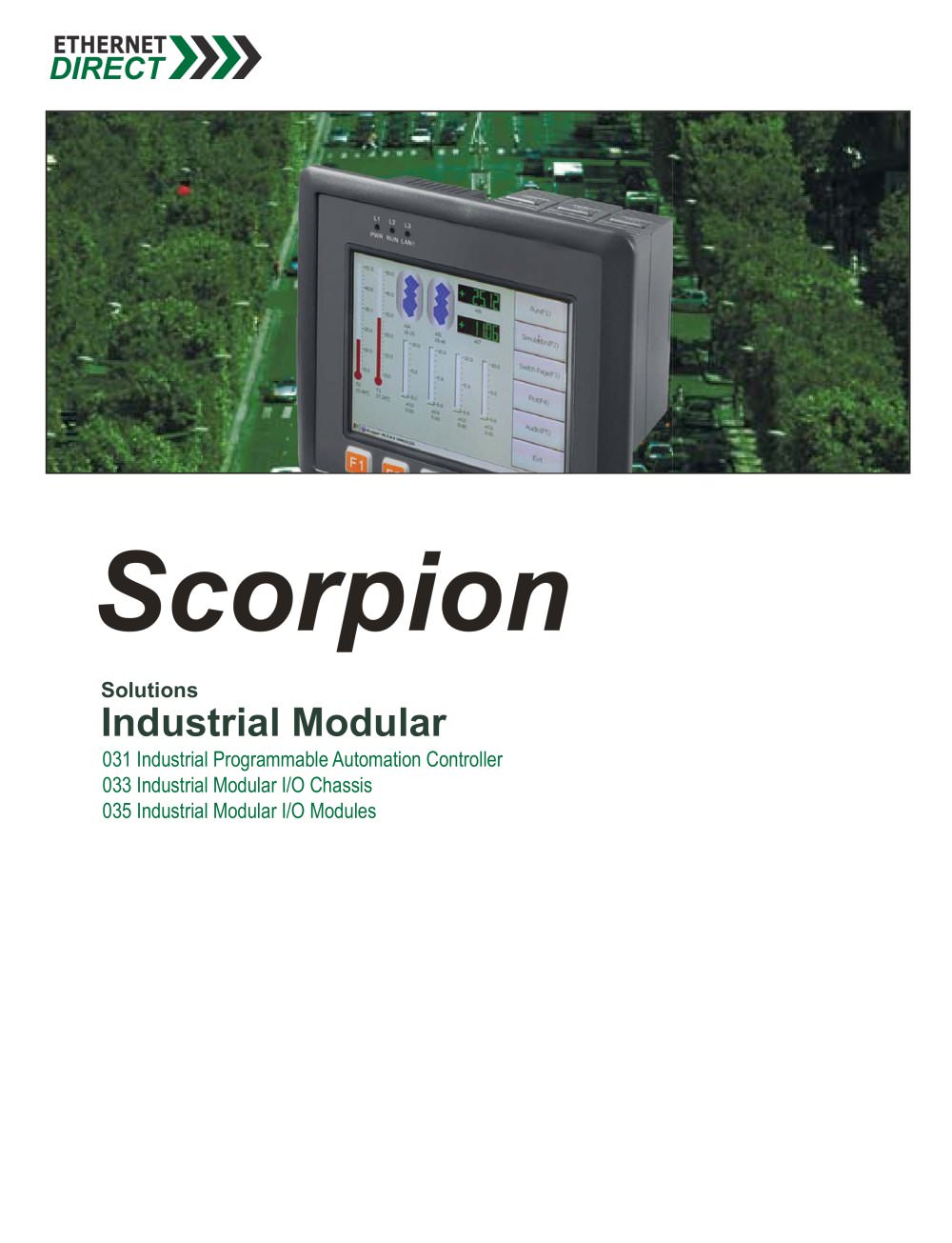

Scorpion Solutions Industrial Modular 031 Industrial Programmable Automation Controller 033 Industrial Modular I/O Chassis 035 Industrial Modular I/O Modules

Scorpion Series Industrial Modular Solutions A PAC functions and communicates over popular network interface protocols like TCP/IP, OLE for process control (OPC) and SMTP. It is used in industrial settings for process control, data acquisition, remote equipment monitoring, machine vision, and motion control. PACs are able to transfer data from the machines they control to other machines and components in a networked control system or to application software and databases. A PAC at the core of an automation system can integrate multiple field bus networks like RS-485, RS-232, RS-422, CAN, Ethernet,...

Industrial PAC and Modular I/O Chassis Selection Guide Model Industrial 4-slot Modular I/O Chassis Industrial 8-slot Modular I/O Chassis Industrial IP-65 5.7” Industrial IP-65 3.5” TFT Programmable TFT Programmable Automation Controller Automation Controller Push Button Backplane Slot Power Consumption Operating System Surge Protection Hardware Power Input Industrial Modular Solutions Modbus Support Operating Temperature Regulatory Approvals CE/FCC

Industrial IP-65 3.5” TFT Programmable Automation Controller Features PXA 270 CPU (32-bit & 520MHz) 3.5” TFT LCD Rubber keypad with 24 keys Audio with MIC-In and Line-Out 64-bit hardware serial number for software protection Slots for high profile I/O modules Rich I/O expansion ability with Ethernet/Serial/CAN Bus modules Dual battery backup SRAM (512 KB) Robust Industrial Design IP-65 compliant front panel Supports operating temperature -20 to 70°C Wall mounting installation Reliable Power Design Supports 10 to 30VDC power input 1KV Isolation protection for power line Industrial Modular Solutions...

Industrial IP-65 5.7” TFT Programmable Automation Controller Features PXA 270 CPU (32-bit & 520MHz) 5.7” TFT LCD (touch panel function supported) Rubber keypad with 6 keys Audio with MIC-In and Line-Out 64-bit hardware serial number for software protection Slots for high profile I/O modules Rich I/O expansion ability with Ethernet/Serial/CAN Bus modules Dual battery backup SRAM (512KB) Robust Industrial Design IP-65 compliant front panel Supports operating temperature -20 to 70°C Wall mounting installation Reliable Power Design Supports 10 to 30VDC power input 1KV Isolation protection for power...

Industrial Modular I/O 4-Slot Chassis Features Supports IPv4 Supports Modbus/TCP communication protocol at Ethernet port Supports Modbus/RTU communication protocol at RS-232 port Supports SIO Series DI/DO/AI/AO/Counter/Frequency modules I/O configurable via the Ethernet (Using the Modbus Utility) I/O scan engine automatically scan I/O modules and range I/O register addresses for high-data-density registers Power on value and safe value for analog/digital output module Detection of I/O module communication status Supports SMMI to configure network settings and set offset values of AI/AO modules...

Industrial Modular I/O 8-Slot Chassis Features Supports IPv4 Supports Modbus/TCP communication protocol at Ethernet port Supports Modbus/RTU communication protocol at RS-232 port Supports SIO Series DI/DO/AI/AO/Counter/Frequency modules I/O configurable via the Ethernet (Using the Modbus Utility) I/O scan engine automatically scan I/O modules and range I/O register addresses for high-data-density registers Power on value and safe value for analog/digital output module Detection of I/O module communication status Supports SMMI to configure network settings and set offset values of AI/AO modules...

Industrial Modular I/O Selection Guide SIO-0825 Industrial 8-Channel Digital Power Relay Output Module Industrial 16-channel Sink/ Source Type Digital Input Module Industrial 16-channel Source Type Digital Output Module Number of I/O Analog Input Analog Output Digital Input ED Digital Output Hardware Power Input Industrial Modular Solutions Power Consumption Voltage Range Isolation Protection Ouput Type Power Relay, Form A (Normal Open) Input Type Four Commons for All Inputs Input Impedance Surge Protection Source, Isolated Open Collector Modbus Support Operating Temperature Regulatory Approvals...

Industrial Modular I/O Selection Guide SIO-0736-LD Industrial 7-channel Analog RTD Input 3-wire RTD Long Distance Measurement Module Industrial 8-channel Digital Input and 8-channel Digital Output Module SIO-0424 Industrial 4-channel Digital Input and 4-channel Relay Output Module Number of I/O Analog Input Analog Output Digital Input Digital Output Ouput Type Sink, Isolated Open Collector Power Relay, Form C Input Type Isolation, One Common for All Digital Inputs Isolation, Differential Input Impedance Surge Protection Hardware Power Input 1.0 watts Voltage Range Isolation Protection Modbus...
