Product catalog summary

Overview
The document outlines the technical specifications and features of the RUG-116 and RUG-118 series industrial media converters, designed for converting Ethernet to fiber connections in industrial settings.

Power Requirements
The devices support a power input range of 12 to 48VDC with redundant power inputs for reliability. They include reverse power polarity and over-current protection, along with 3000VDC EFT protection for power lines and 6000VDC Ethernet ESD protection. Maximum power consumption is 5.19 watts for RUG-116 and 5.28 watts for RUG-118.

Physical Specifications
The converters feature IP-30 standard housing, suitable for DIN-Rail or wall mounting. Dimensions are 30mm (W) x 140mm (H) x 95mm (D), ensuring a compact and robust design.

Environmental Conditions
Operating temperatures range from -10 to 70°C for regular models and -40 to 80°C for extended models. They can be stored at temperatures between -40 to 85°C and operate in humidity levels from 5% to 95% RH (non-condensing).

Technology Specifications
The converters comply with IEEE standards for Ethernet and fiber connections, supporting CSMA/CD and store-and-forward switching architecture. They are equipped with EMI and EMS protections and meet various safety and environmental standards.

Features
The converters offer high-performance network switching technology, supporting both Ethernet and fiber connections. They include features like Link Loss Forwarding and Link Fault Pass-Through, with auto MDI/MDI-X crossover support on RJ-45 ports. The robust design includes an alarm relay for power or port failure detection.

Models and Ordering Information
Various models are available, including RUE-111S(E), RUE-113S(E), RUG-115(E), and RUG-116(E), each with specific features and certifications suitable for different industrial applications. Extended temperature models and Class 1 Division 2 certified models are also available.

Catalog excerpts

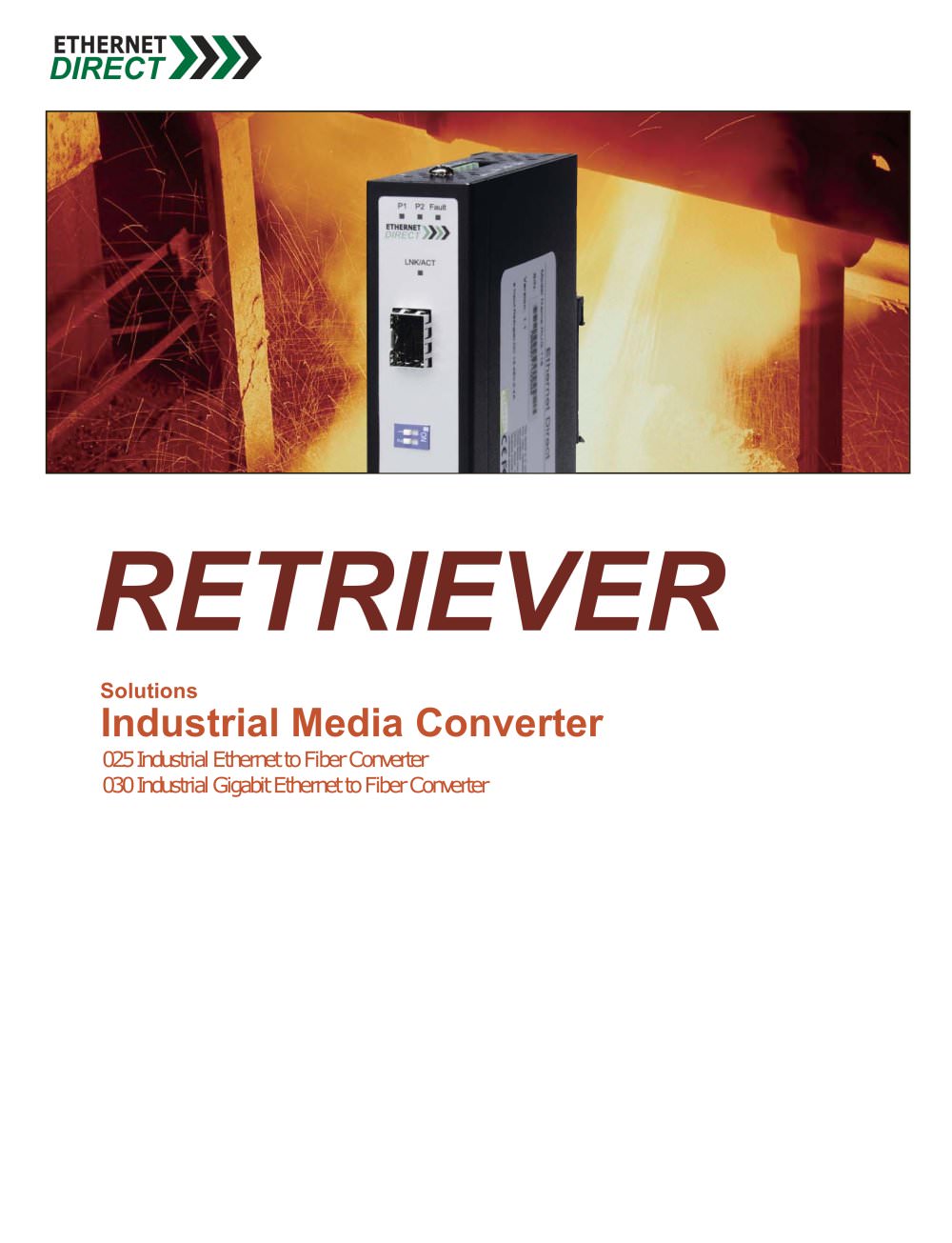

RETRIEVER Solutions Industrial Media Converter 025 Industrial Ethernet to Fiber Converter 030 Industrial Gigabit Ethernet to Fiber Converter

Open the catalog to page 1

Retriever Series Industrial Media Converter Solutions Media converters are used for Ethernet networks where each type of Ethernet has different specifications. It converts data passing from one media to another, such as signals on a copper cable to those run on fiber, making fiber optic transmission possible in the network without any further modification. It extends Gigabit Ethernet and Fast Ethernet over fiber, point-to-point, point-to-multipoint or daisy chain. Ethernet Direct offers Retriever Series Industrial Media Converter Solutions especially engineered for mission-critical applications...

Open the catalog to page 2

Industrial Media Converter Dimensions RUE-111(E)/112(E)/113(E)(K60) Industrial Media Converter Solutions

Open the catalog to page 3

Industrial Ethernet to Fiber Converter Selection Guide RUE-111(E) Industrial 1 x 10/100Base-T(X) + 1 x Multi-mode 100FX Ethernet to Fiber SC Media Converter Industrial 1 x 10/100Base-T(X) + 1 x Multi-mode 100FX Slim Ethernet to Fiber SC Media Converter Industrial 1 x 10/100Base-T(X) + 1 x Multi-mode 100FX Ethernet to Fiber ST Media Converter Industrial 1 x 10/100Base-T(X) + 1 x Single-mode 100FX Ethernet to Fiber SC Media Converter Industrial 1 x 10/100Base-T(X) + 1 x Single-mode 100FX Slim Ethernet to Fiber SC Media Converter Number of Ports 10/100Base-T(X) 10/100/1000Base-T(X) Multi-mode 100Base-FX...

Open the catalog to page 4

Industrial Gigiabit Ethernet to Fiber Converter Selection Guide Model RUG-115(E) Industrial 1 x 10/100/1000Base-T(X) + 1 x Multi-mode 1000SX Gigabit Ethernet to Fiber SC Media Converter RUG-116(E) Industrial 1 x 10/100/1000Base-T(X) + 1 x Single-mode 1000LX Gigabit Ethernet to Fiber SC Media Converter RUG-118(E)) Industrial 1 x 10/100/1000Base-T(X) + 1 x 1000SX/LX/LHX/ZX Gigabit Ethernet to Fiber SFP Media Converter Multi-mode 100Base-FX Single-mode 100Base-FX Multi-mode 1000Base-SX Hardware Power Input Power Consumption Industrial Media Converter Solutions Fault Relay Output Hi-Pot Protection...

Open the catalog to page 5

Industrial Ethernet To Fiber Multi-mode SC Media Converter Features High Performance Network Switching Technology Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x Provides 1 x 10/100Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 100FX multi-mode fiber port with SC connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC redundant power with power reverse polarity...

Open the catalog to page 6

Industrial Ethernet To Fiber Multi-mode ST Media Converter Features High Performance Network Switching Technology Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x Provides 1 x 10/100Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 100FX multi-mode fiber port with ST connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC redundant power with power reverse polarity...

Open the catalog to page 7

Industrial Ethernet To Fiber Single-mode SC Media Converter Features High Performance Network Switching Technology Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x Provides 1 x 10/100Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 100FX single-mode fiber port with SC connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC redundant power with power reverse polarity...

Open the catalog to page 8

Industrial Slim Ethernet To Fiber Multi-mode SC Media Converter Features High Performance Network Switching Technology Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x Provides 1 x 10/100Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 100FX multi-mode fiber port with SC connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC redundant power with power reverse...

Open the catalog to page 9

Industrial Slim Ethernet To Fiber Single-mode SC Media Converter Features High Performance Network Switching Technology Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x Provides 1 x 10/100Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 100FX single-mode fiber port with SC connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC redundant power with power reverse...

Open the catalog to page 10

Industrial Gigabit Ethernet To Fiber Multi-mode SC Media Converter Features High Performance Network Switching Technology Complies with IEEE standards Provides 1 x 10/100/1000Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 1000SX multi-mode fiber port with ST connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC redundant power with power reverse polarity Supports...

Open the catalog to page 11

Industrial Gigabit Ethernet To Fiber Single-mode SC Media Converter Features High Performance Network Switching Technology Complies with IEEE standards Provides 1 x 10/100/1000Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 1000LX single-mode fiber port with ST connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC redundant power with power reverse polarity Supports...

Open the catalog to page 12

Industrial Media Converter Solutions
