Overview
The document provides detailed information on the Whale Series Industrial M12 Switch Solutions, designed for robust industrial applications. These switches are equipped with M12 connectors compliant with IEC 61076 standards, offering high protection against environmental factors such as water and dust, with ratings up to IP-67/68.

Specifications
The switches are available in managed and unmanaged versions, supporting Ethernet connections with D-coded M12 connectors. They are designed for harsh environments, including transportation, mining, and petrochemical industries.

Key Features

High-performance network switching technology compliant with IEEE standards.
Redundant power inputs and robust housing for vibration and water resistance.
Advanced management features including SNMP, VLAN, QoS, and IGMP snooping.
Support for X-Ring technology with rapid recovery times.

Models
WME-800-M12: An 8-port managed switch with IP-31 housing, suitable for temperatures from -10 to 70°C. It supports various network management protocols and offers a self-recovery mechanism within 300ms.
WME-867-M12: An 8-port managed switch with IP-67 housing, suitable for temperatures from -40 to 80°C. It features enhanced protection with 3000VDC EFT and 6000VDC ESD protection, and a recovery time of less than 10ms.

Technical Specifications

Supports IEEE 802.3 standards for Ethernet and VLAN tagging.
Store and forward switching architecture.
Regulatory approvals include FCC, UL, and CE certifications.
MTBF of up to 388,201 hours, ensuring long-term reliability.

Management and Security

Supports SNMP, Web, Telnet, and CLI management interfaces.
Advanced security features including MAC address filtering and IP security.
Port trunking and VLAN support for network segmentation and redundancy.

Environmental and Physical Characteristics

Operating temperature ranges from -40 to 80°C, with humidity tolerance up to 95% RH.
DIN-Rail or wall mounting options available.

Conclusion
The Whale Series Industrial M12 Switch Solutions are designed to provide reliable and secure network connectivity in challenging industrial environments, with advanced management and security features to ensure optimal performance and protection.

Catalog excerpts

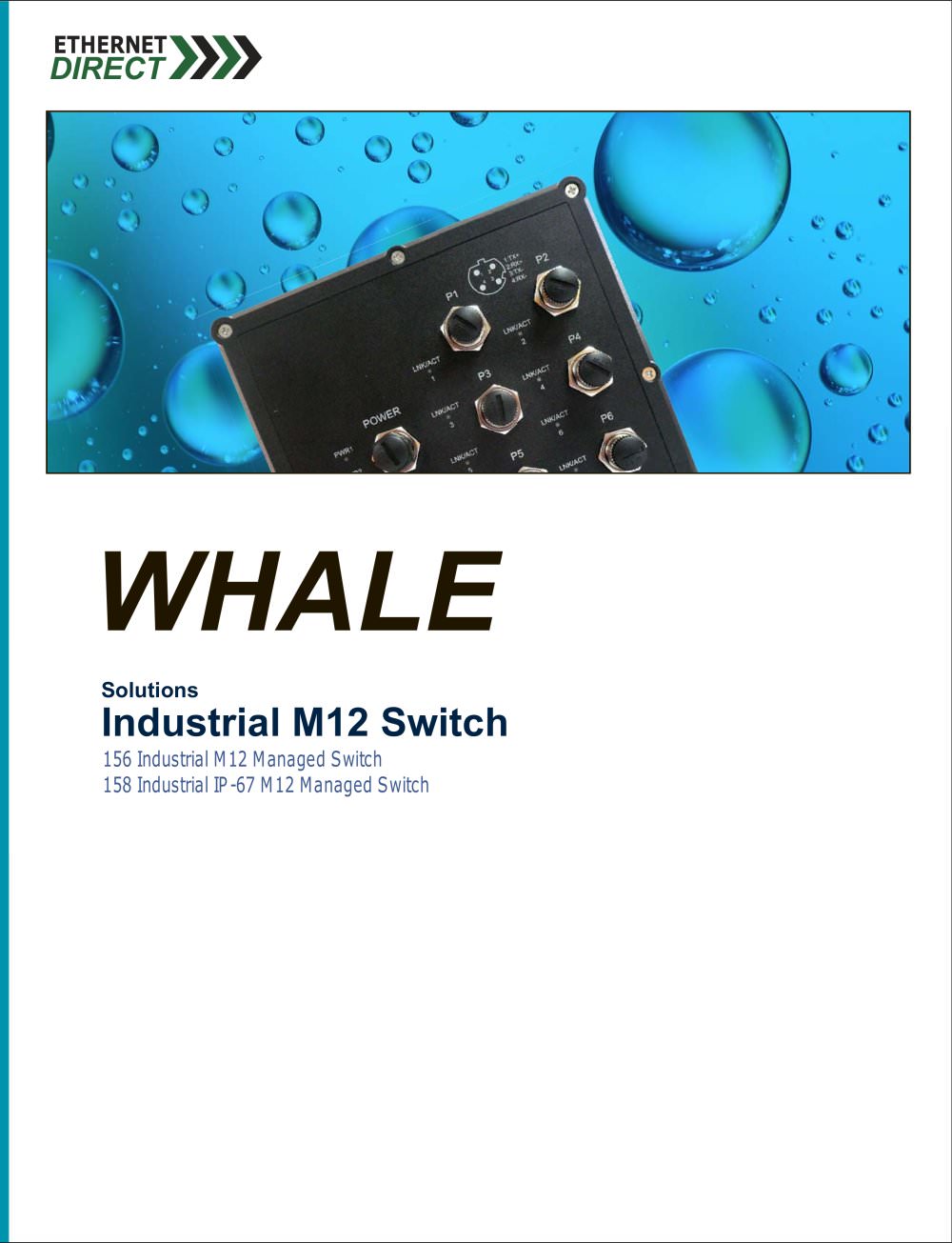

WHALE Industrial M12 Switch 156 Industrial M12 Managed Switch 158 Industrial IP-67 M12 Managed Switch Solutions

Open the catalog to page 1

ED Industrial M12 Switch Solutions Whale Series Industrial M12 Switch Solutions M12 connectors are designed to comply with IEC 61076 standards defining a circular connector which comes with a screw lock. M style connectors for Industrial Ethernet are type D-coded. For maximum protection, M12 connectors may come with an Environmental Protection Rating, or Ingress Protection commonly referred to as IP which indicates the protection from either water or dust. Many configurations are rated for IP-67/68 Military connectors referring to military standards. Ethernet Direct offers Whale Industrial M12...

Open the catalog to page 2

ED 156 Industrial M12 Switch Solutions WME-800-M12 Features High Performance Network Switching Technology Complies with IEEE standards Provides 8 x 10/100Base-T(X) with M12 connector X-Ring technology with < 300ms recovery time IGMP snooping/querier/QoS and ToS/DiffServ SNMP v1/v2c/Port-based VLAN/802.1Q Tag-based VLAN/GVRP Port trunking with LACP/Port mirroring Supports SNMP/Web/Telnet/CLI management Reliable Power Design Robust case complies with IP-31 housing standard Supports operating temperature -10 to 70°C DIN-Rail or wall mounting installation Robust Industrial Design Equipped with redundant...

Open the catalog to page 3

ED Industrial M12 Switch Solutions Industrial 8-port M12 Managed Ethernet Switch Ordering Information WME-800-M12 Industrial 8 x 10/100Base-T(X) M12 Managed Switch, -10 to 70°C WME-800E-M12 Industrial 8 x 10/100Base-T(X) M12 Managed Switch, -40 to 80°C Management Specifications Redundancy: X-Ring with recovery time < 300 ms STP, RSTP, Dual Homing, Couple Ring, Dual Ring* Management: SNMP/Web/Telnet/CLI management TFTP backup/restore configurations MIB: SNMP MIB, MIBII, SNMP V2 MIB, Bridge MIB, VLAN MIB, Trap MIB, Ethernet like MIB, RSTP MIB, RMON MIB, Private MIB SNMP Trap: Up to 3 trap stations...

Open the catalog to page 4

ED 14558 Industrial M12 Switch Solutions WME-867-M12 Features High Performance Network Switching Technology Complies with IEEE standards Provides 8 x 10/100Base-T(X) with M12 connector X-Ring technology with < 10ms recovery time IGMP snooping/querier/QoS and ToS/DiffServ SNMP v1/v2c/v3/Port-based VLAN/802.1Q Tag-based VLAN/GVRP Port trunking with LACP/Port mirroring Supports SNMP/RMON/Web/Telnet/CLI management Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC power input 3000VDC EFT protection for power line 6000VDC Ethernet ESD protection Robust Industrial Design...

Open the catalog to page 5

ED Industrial M12 Switch Solutions Industrial 8-port M12 Managed Ethernet Switch Ordering Information WME-867-M12 Industrial 8 x 10/100Base-T(X) IP-67 M12 Managed Switch, -40 to 80°C Management Specifications Redundancy: X-Ring with recovery time < 10 ms STP, RSTP, Dual Homing, Couple Ring Management: SNMP/Web/Telnet/CLI management TFTP backup/restore configurations MIB: SNMP MIB, MIBII, SNMP V2 MIB, Bridge MIB, VLAN MIB, Trap MIB, Ethernet like MIB, RSTP MIB, RMON MIB, Private MIB SNMP Trap: Up to 3 trap stations Cold start, link down, link up, authorization fail, X-Ring topology change and...

Open the catalog to page 6
