Catalog excerpts
![Industrial IP-67 Switch Solutions - 1](https://img.directindustry.com/pdf/repository_di/39231/industrial-ip-67-switch-solutions-134855_1m.jpg)

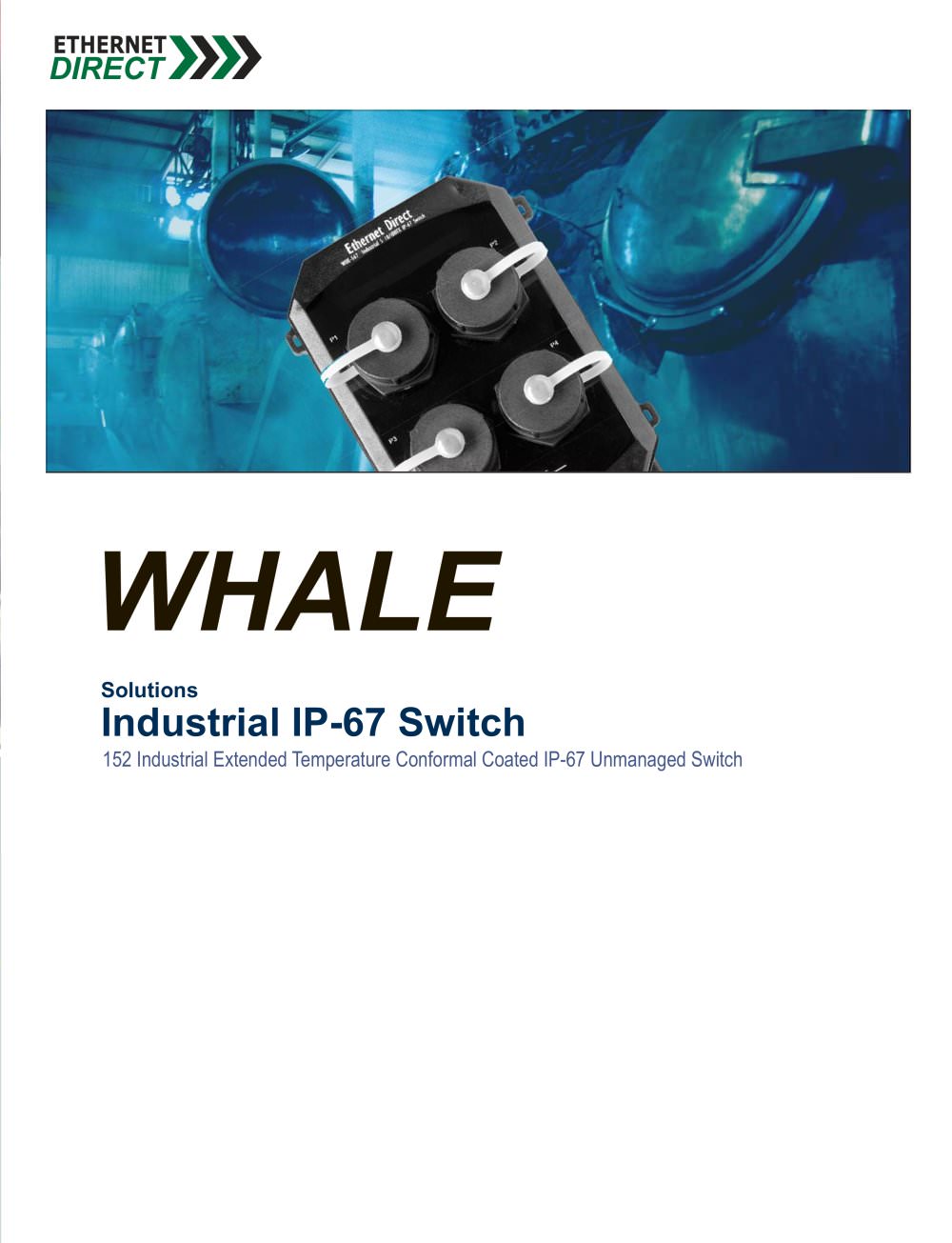

WHALE Industrial IP-67 Switch 152 Industrial Extended Temperature Conformal Coated IP-67 Unmanaged Switch Solutions
Open the catalog to page 1![Industrial IP-67 Switch Solutions - 2](https://img.directindustry.com/pdf/repository_di/39231/industrial-ip-67-switch-solutions-134855_2m.jpg)
ED Industrial IP-67 Switch Solutions Whale Series Industrial IP-67 Switch Solutions For applications located in an extreme environment, networking devices must be robust enough to withstand the harsh conditions. An IP-67 switch is the ideal choice for such applications. Totally protected against dust and the effect of immersion between 15cm and 1m, an IP-67 switch is capable of coping with demanding environments and providing stable network quality at the same time. Ethernet Direct Whale Series Industrial IP-67 Switch is specifically engineered for harsh operating environments, such as...
Open the catalog to page 2![Industrial IP-67 Switch Solutions - 3](https://img.directindustry.com/pdf/repository_di/39231/industrial-ip-67-switch-solutions-134855_3m.jpg)
ED 152 Industrial IP-67 Switch Solutions WUE-567EC Features High Performance Network Switching Technology Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x Provides 5 x 10/100Base-T(X) with IP-67 connector Each port supports auto MDI/MDI-X crossover Each port supports 10/100Mbps speed auto negotiation 1.4Gbps memory bandwidth Integrated look-up engine with dedicated 1k unicast MAC addresses Reliable Power Design Robust case complies with IP-67 housing standard DIN Rail or wall mounting installation Robust Industrial Design Supports 10 to 30VDC power input with 1KV isolation Supports reverse...
Open the catalog to page 3![Industrial IP-67 Switch Solutions - 4](https://img.directindustry.com/pdf/repository_di/39231/industrial-ip-67-switch-solutions-134855_4m.jpg)
ED Industrial IP-67 Switch Solutions Industrial 5-port IP-67 Unmanaged Ethernet Switch Ordering Information WUE-567EC Industrial Extended Temperature Conformal Coated 5-port IP-67 Unmanaged Ethernet Switch, -40 to 80°C WUE-567ECD Industrial Extended Temperature Conformal Coated 5-port IP-67 Unmanaged Ethernet Switch, -40 to 80°C, DIN-Rail mountable Dimensions Front View Side View 126.00 75.5 85.0 DIN Rail Bracket DIN Rail bracket for WUE-567ECD unit: mm
