Product catalog summary

Overview: The document provides comprehensive details on the Husky Series Industrial Ethernet Switch Solutions, designed for mission-critical applications in harsh industrial environments. These switches ensure network reliability, management features, and efficient data transmission, essential for manufacturing systems.

Specifications: The Husky Series includes unmanaged, web-managed, and managed Ethernet switches with options for 10/100TX and Gigabit Ethernet. They feature high IP-rating housing for protection against dust, moisture, and temperature changes, supporting SNMP, VLAN, IGMP Snooping, LLDP, and Port Trunking.

Key Features: The switches offer X-Ring network redundancy for quick recovery, extended temperature ranges, redundant power sources, and longer MTBF with extended warranty. They comply with industry standards and approvals, ensuring quality and reliability.

Naming Convention: The naming rules for the switches are based on a code indicating the type (unmanaged, web-managed, managed), Ethernet type (10/100TX, Gigabit), number of ports, and other specifications like temperature range and fiber port type.

Selection Guides: The document includes selection guides detailing the number of ports, power input, protection features, operating temperature, and regulatory approvals, aiding in choosing the right switch for specific industrial needs.

Dimensions and Models: Detailed dimensions and model specifications are provided for various switch types, including slim unmanaged, gigabit unmanaged, web-managed, and managed switches, with descriptions of port configuration, power requirements, and environmental specifications.

Hardware Features: The switches are equipped with RJ-45 ports, fiber ports, and combo ports, including protection features like reverse polarity, overcurrent, EFT, and ESD protection. Installation options include DIN-Rail or wall mounting.

Software and Protocols: Managed switches support protocols such as SNMP, RMON, IGMP, and IEEE 802.1X for user authentication, offering features like VLAN/GVRP, QoS, and X-Ring redundancy.

Regulatory Approvals: The switches comply with standards including CE/FCC, UL/cUL 60950-1, UL 508, Class 1 Division 2, DNV, UL 864, IEC 61850, and IEEE 1613, meeting safety and environmental standards like WEEE and RoHS.

Model Highlights: The document lists models such as HMG-428, HMG-1628(E), HMG-738(E), HUE-500S(E), HUE-800S(E), HUE-411S(E), and HUE-413S(E), each with specific features and certifications, noted for compact design and high-performance network switching technology.

Environmental and Physical Specifications: Designed for harsh environments, the switches feature wide operating temperature ranges and high MTBF ratings, equipped with alarm contacts for fault indication.

Conclusion: The document serves as a selection guide for industrial Ethernet switches, providing detailed information on each model's capabilities and compliance with industry standards, ensuring reliability and performance in industrial applications.

Catalog excerpts

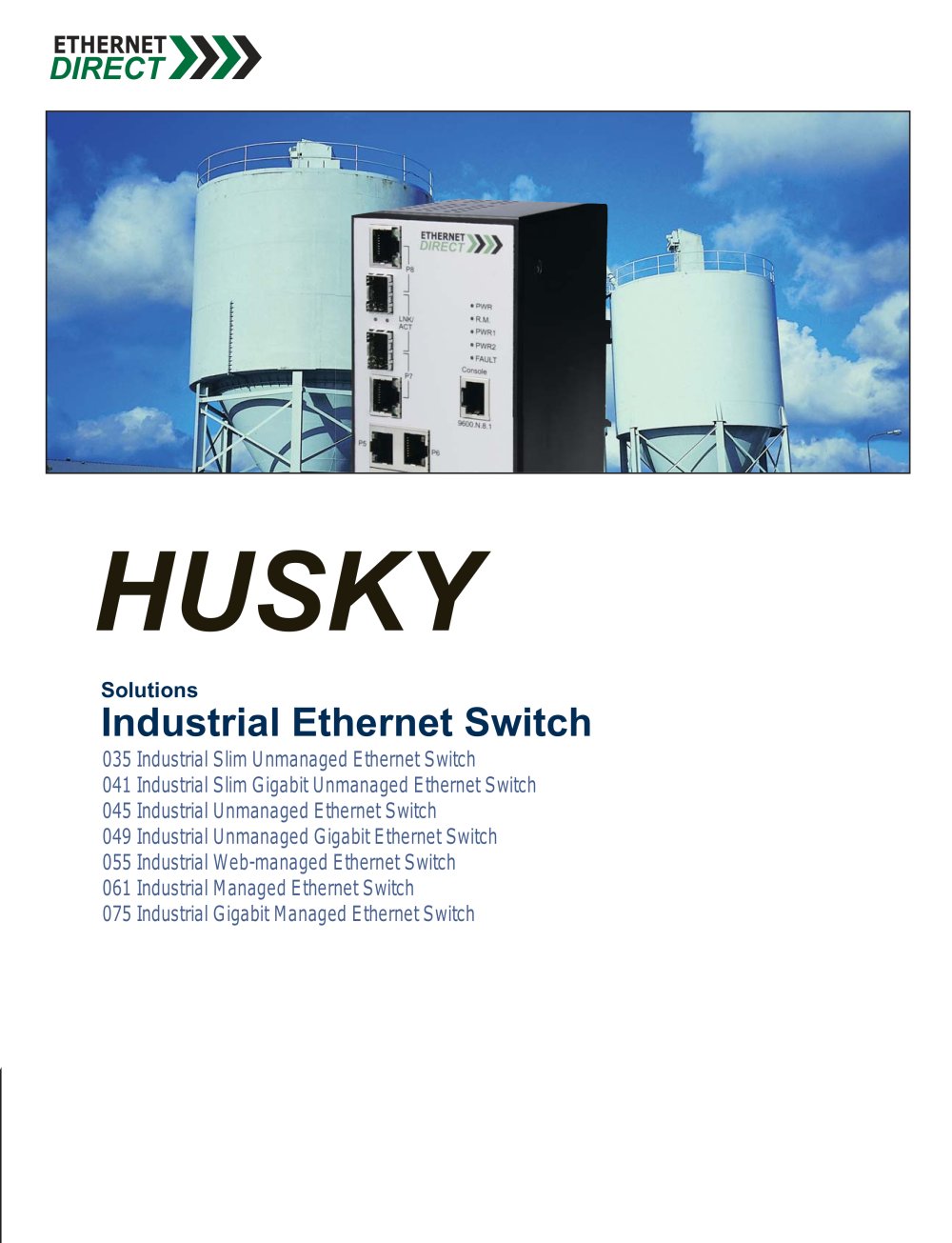

HUSKY Industrial Ethernet Switch 035 Industrial Slim Unmanaged Ethernet Switch 041 Industrial Slim Gigabit Unmanaged Ethernet Switch 045 Industrial Unmanaged Ethernet Switch 049 Industrial Unmanaged Gigabit Ethernet Switch 055 Industrial Web-managed Ethernet Switch 061 Industrial Managed Ethernet Switch 075 Industrial Gigabit Managed Ethernet Switch Solutions
