Industrial Ethernet Solutions- Special Edition
Industrial Ethernet Solutions- Special Edition
Ethernet Direct provides industrial Ethernet switches and converters certified for mission-critical applications in hazardous environments and electrical substations. These products cater to industries such as oil & gas, mining, military, and petrochemical sectors.
- Class 1 Division 2: Ensures safety in environments with fire or explosion risks due to flammable substances.
- UL 508: Covers safety requirements for industrial control equipment.
- IEC 61850 & IEEE 1613: Standards for EMI immunity and communication reliability in electrical substations.
- High-performance network switching technology compliant with IEEE standards.
- Redundant power inputs with reverse polarity and surge protection.
- Robust IP-30 housing suitable for wide temperature ranges and DIN-Rail or wall mounting.
- Link Loss Forwarding and Link Fault Pass-Through for network reliability.
- Models include Husky, Cobra, and Retriever series with various Ethernet and fiber port configurations.
- Support for multi-mode and single-mode fiber connections with SC connectors.
- Operating temperature ranges from -10 to 70°C, with extended models supporting -40 to 80°C.
- Compliance with WEEE, RoHS, UL, and CE standards.
- RUE-111S-CDU: Multi-mode 100FX Slim Ethernet to Fiber SC Media Converter, -10 to 70°C.
- RUE-113S-CDU: Single-mode 100FX Slim Ethernet to Fiber SC Media Converter, -10 to 70°C.
- RUG-115-CD: Multi-mode 1000SX Gigabit Ethernet to Fiber SC Media Converter, -10 to 70°C.
- Power Input: 12 to 48VDC with reverse polarity protection and redundant inputs.
- Surge Protection: 3000VDC EFT and 6000VDC Ethernet ESD protection.
- Operating Temperature: Regular models: -10 to 70°C, Extended models: -40 to 80°C.
- Housing: IP-30 standard, suitable for DIN-Rail or wall mounting.
- Ports: Each model features 2 ports, including RJ-45 and fiber ports with various configurations.
- LED Indicators: Indicate power, link/activity status, and faults.
- DIP Switches: Enable/disable power alarms, Link Loss Forwarding, and Link Fault Pass-Through.
- Complies with IEEE standards for Ethernet and fiber communication.
- Supports CSMA/CD protocol and store-and-forward switching architecture.
- EMI: FCC Class A
- EMS: Various EN standards
- Safety: UL, cUL, CE/EN 60950-1
- Environmental: WEEE, RoHS
- High-performance network switching technology with auto MDI/MDI-X crossover support.
- Link Loss Forwarding and Link Fault Pass-Through for enhanced reliability.
- Alarm relay design for power or port failure detection.
Each model is available in regular and extended temperature versions, certified for Class 1 Division 2 environments, and comes with a 5-year warranty.
Catalog excerpts

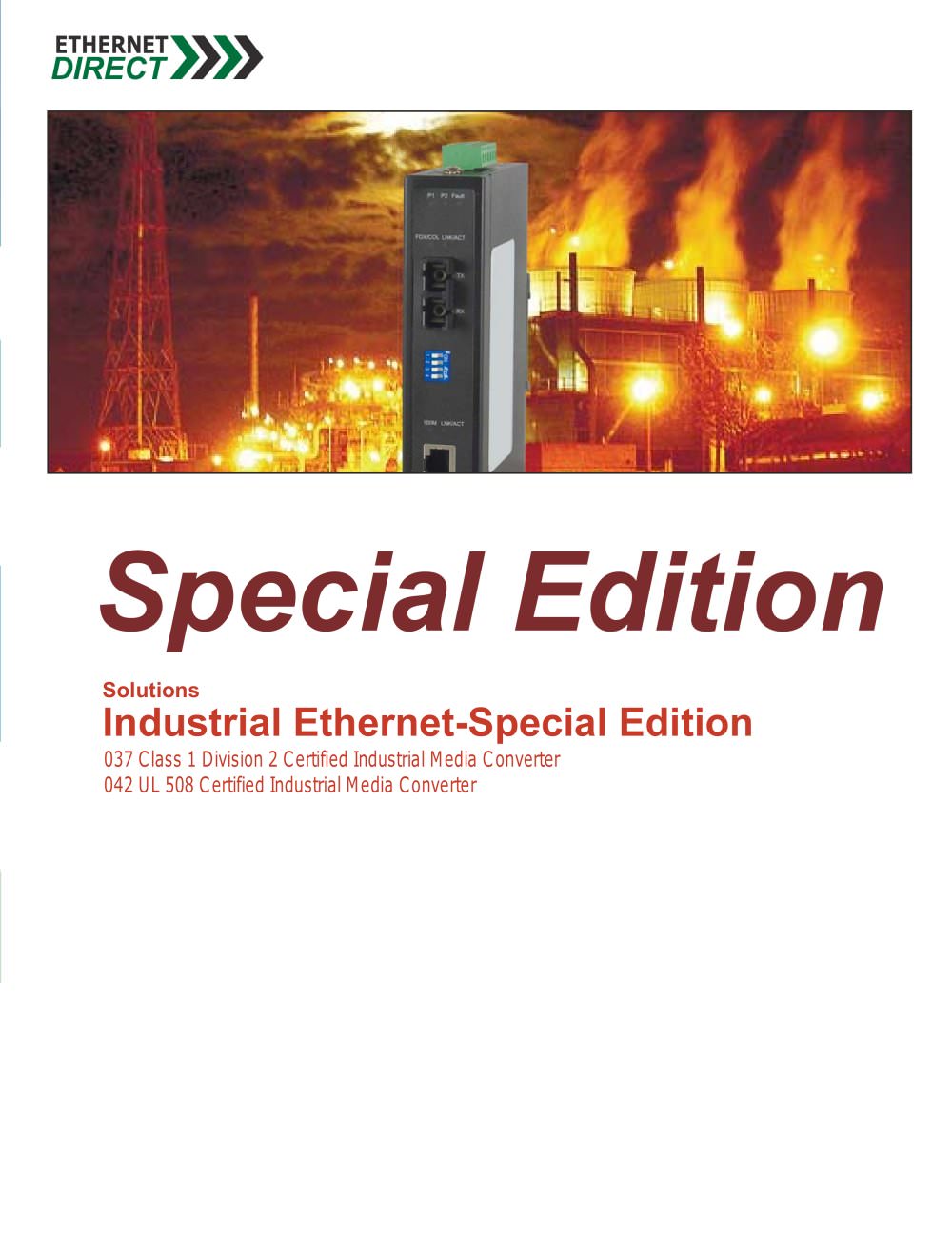

Special Edition Solutions Industrial Ethernet-Special Edition 037 Class 1 Division 2 Certified Industrial Media Converter 042 UL 508 Certified Industrial Media Converter
Open the catalog to page 1
Industrial Ethernet Solutions-Special Edition Ethernet Direct offers a new breed of industrial Ethernet switches and industrial converters certified by major industrial standards, and especially engineered for mission-critical applications, industrial control applications, hazardous environments and electrical substations. There are various certifications for different market applications. And Ethernet Direct is committed to providing truly rugged design and industrial rated products. Typical industry applications include oil & gas, mining & aggregates, military, defense, petrochemical and more....
Open the catalog to page 2
Industrial Ethernet Solutions-Special Edition Dimensions RUE-111S(E)-CDU/113S(E)-CDU Industrial Ethernet Solutions-Special Edition
Open the catalog to page 3
Class 1 Division 2/UL 508 Certified Industrial Slim Ethernet To Fiber Multi-mode SC Media Converter Features High Performance Network Switching Technology Class 1 Division 2 certified UL 508 certified Complies with IEEE standards Provides 1 x 10/100Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 100FX multi-mode fiber port with SC connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Supports 12 to 48VDC redundant power with power reverse...
Open the catalog to page 4
Class 1 Division 2 Certified Industrial Slim Ethernet To Fiber Single-mode SC Media Converter Features High Performance Network Switching Technology Class 1 Division 2 certified UL 508 certified Complies with IEEE standards Provides 1 x 10/100Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 100FX single-mode fiber port with SC connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Supports 12 to 48VDC redundant power with power reverse polarity...
Open the catalog to page 5
Class 1 Division 2/UL 508 Certified Industrial Gigabit Ethernet To Fiber Multi-mode SC Media Converter Features High Performance Network Switching Technology Class 1 Division 2 certified Complies with IEEE standards Provides 1 x 10/100/1000Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 1000SX multi-mode fiber port with ST connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Supports 12 to 48VDC redundant power with power reverse polarity...
Open the catalog to page 6
Class 1 Division 2/UL 508 Certified Industrial Gigabit Ethernet To Fiber Single-mode SC Media Converter Features High Performance Network Switching Technology Class 1 Division 2 certified Complies with IEEE standards Provides 1 x 10/100/1000Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 1000LX single-mode fiber port with ST connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Supports 12 to 48VDC redundant power with power reverse polarity...
Open the catalog to page 7
Class 1 Division 2 Certified Industrial Gigabit Ethernet To Fiber SFP Media Converter Features High Performance Network Switching Technology Class 1 Division 2 certified Complies with IEEE standards Provides 1 x 10/100/1000Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 1000SX/LX/LHX/ZX SFP fiber port Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Supports 12 to 48VDC redundant power with power reverse polarity Supports overload current protection...
Open the catalog to page 8
Class 1 Division 2/UL 508 Certified Industrial Slim Ethernet To Fiber Multi-mode SC Media Converter Features High Performance Network Switching Technology Class 1 Division 2 certified UL 508 certified Complies with IEEE standards Provides 1 x 10/100Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 100FX multi-mode fiber port with SC connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Supports 12 to 48VDC redundant power with power reverse...
Open the catalog to page 9
Class 1 Divison 2/UL 508 Certified Industrial Slim Ethernet To Fiber Multi-mode SC Media Converte Features High Performance Network Switching Technology Class 1 Division 2 certified UL 508 certified Complies with IEEE standards Provides 1 x 10/100Base-T(X) Ethernet port with RJ-45 connector Provides 1 x 100FX single-mode fiber port with SC connector Supports Link Loss Forwarding and Link Fault Pass-Through functions Supports IEEE 802.3x flow control on full duplex, back pressure on half duplex RJ-45 port supports auto MDI/MDI-X crossover Supports 12 to 48VDC redundant power with power reverse...
