Industrial Ethernet Solution- Special Edition
49Pages

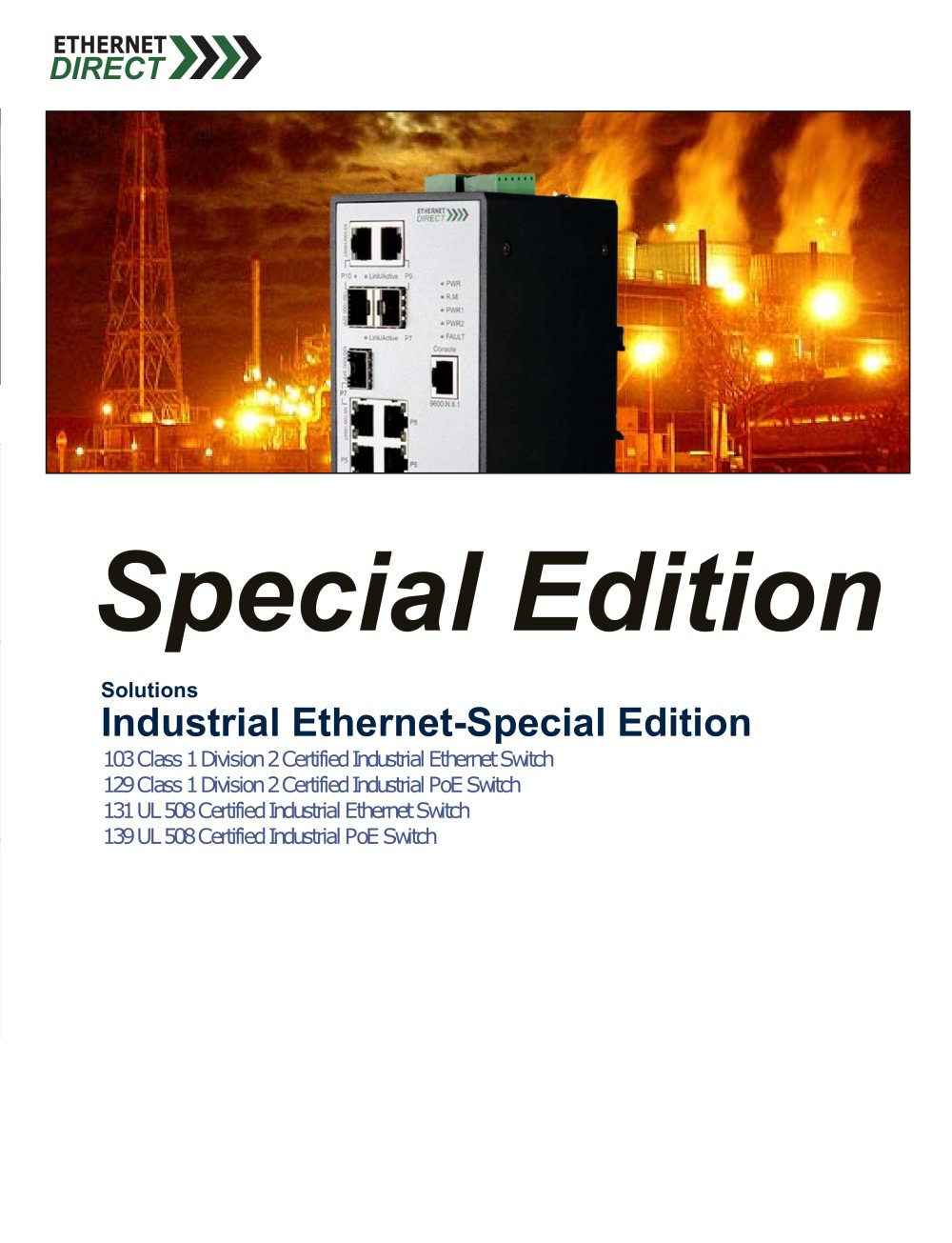

Special Edition Industrial Ethernet-Special Edition 103 Class 1 Division 2 Certified Industrial Ethernet Switch 129 Class 1 Division 2 Certified Industrial PoE Switch 131 UL 508 Certified Industrial Ethernet Switch 139 UL 508 Certified Industrial PoE Switch Solutions

ED Industrial Ethernet Solutions-Special Edition Industrial Ethernet Solutions-Special Edition Ethernet Direct offers a new breed of industrial Ethernet switches and industrial converters certified by major industrial standards, and especially engineered for mission-critical applications, industrial control applications, hazardous environments and electrical substations. There are various certifications for different market applications. And Ethernet Direct is committed to providing truly rugged design and industrial rated products. Typical industry applications include oil & gas, mining &...

ED HUE-500S(E)-CD Features HUE-500S(E)-CD is a Class 1 Division 2 certified Industrial 5-port Slim Unmanaged Ethernet Switch. This entry-level industrial 5-port Ethernet Switch supports IEEE 802.3/802.3u/802.3x with 10/100Mbps, full/half duplex and MDI/MDI-X auto-sensing RJ-45 ports. The compact switch is equipped with a relay output alarm design. It supports 12 to 48VDC redundant power inputs and is secured with power polarity reverse protection and overload current protection. The IP-30 housing, wide operating temperature of -10 to 70°C, and DIN-Rail mounting makes HUE-500S(E)-CD suitable...

ED 104 Class 1 Division 2 Certified Industrial Ethernet Switch HUE-800S(E)-CD Features High Performance Network Switching Technology Class 1 Division 2 certified Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x Provides 8 x 10/100Base-T(X) with RJ-45 connector RJ-45 ports support auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC or 18 to 30VAC power input with reverse polarity protection 3000VDC EFT protection for power line 6000VDC Ethernet ESD protection Robust Industrial Design Robust case complies with IP-30 housing standard...

ED HUE-411S(E)-CDU HUE-411S(E)-CDU is a Class 1 Division 2 and UL 508 certified Industrial 5-port Slim Unmanaged Ethernet Switch with one multi-mode fiber port. With the optic port, the HUE-411S(E)-CDU transmits data at high speed for long distances up to 2km with an SC connector. The compact switch is equipped with a relay output alarm design. It supports 12 to 48VDC redundant power inputs and is secured with power polarity reverse protection and overload current protection. The IP-30 housing, wide operating temperature of -10 to 70°C, and DIN-Rail mounting make HUE-411S(E)-CDU suitable...

ED 106 Class 1 Division 2 Certified Industrial Ethernet Switch HUE-413S(E)-CDU Features High Performance Network Switching Technology Class 1 Division 2 certified UL 508 certified Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x Provides 4 x 10/100Base-T(X) with RJ-45 connector Provides 1 x single-mode 100FX fiber port RJ-45 ports support auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC power input with reverse polarity protection 3000VDC EFT protection for power line 6000VDC Ethernet ESD protection Robust Industrial Design Robust...

ED HUE-421S-CD HUE-421S-CD is a Class 1 Division 2 certified Industrial 6-port Slim Unmanaged Ethernet Switch with two multi-mode fiber ports. With the optic ports, the HUE-421S-CD transmits data at high speed for long distances up to 2km with an SC connector. The compact switch is equipped with a relay output alarm design. It supports 12 to 48VDC redundant power inputs and is secured with power polarity reverse protection and overload current protection. The IP-30 housing, wide operating temperature of -10 to 70°C, and DIN-Rail mounting makes HUE-421S-CD suitable for an industrial...

ED 108 Class 1 Division 2 Certified Industrial Ethernet Switch HUE-423S-CD Features High Performance Network Switching Technology Class 1 Division 2 certified Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x Provides 4 x 10/100Base-T(X) with RJ-45 connector Provides 2 x single-mode 100FX fiber ports RJ-45 ports support auto MDI/MDI-X crossover Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC power input with reverse polarity protection 3000VDC EFT protection for power line 6000VDC Ethernet ESD protection Robust Industrial Design Robust case complies with...

ED HUG-800S(E)-CD HUG-800S(E)-CD is a Class 1 Division 2 certified Industrial 8-port Slim Gigabit Unmanaged Ethernet Switch supports IEEE 802.3/802.3u/802.3x/802.3ab with 10/100/1000Mbps, full/half duplex and MDI/MDI-X auto-sensing RJ-45 ports. The compact switch is equipped with a relay output alarm design. It supports 12 to 48VDC redundant power inputs and is secured with power polarity reverse protection. The IP-30 housing, wide operating temperature of -10 to 70°C, and DIN-Rail mounting make HUG-800S(E)-CD suitable for an industrial environment. The E version model’s temperature is -40...

ED 110 Class 1 Division 2 Certified Industrial Ethernet Switch HUG-418S-CD Features High Performance Network Switching Technology Class 1 Division 2 certified Complies with IEEE standards Provides 4 x 10/100/10000Base-T(X) with RJ-45 connector Provides 1 x 100/1000Base SFP slot Reliable Power Design Equipped with redundant power inputs Supports 12 to 48VDC power input with reverse polarity protection 3000VDC EFT protection for power line 4000VDC Ethernet ESD protection Robust Industrial Design Robust case complies with IP-30 housing standard Supports operating temperature -10 to 70°C...

ED HUG-625GE-PSCDU Features The Husky Series HUG-625GE-PSCDU is a Class 1 Division 2 and UL 508 certified Industrial 8-port Slim Gigabit Unmanaged Ethernet Switch with six 10/100/100Base-T(X) Ethernet ports and two multi-mode 1000SX fiber ports. With the optic ports, HUG-625GE-PSCDU transmits data at high speed for long distances up to 0.5km with an SC connector. HUG-625GE-PSCDU also supports Green Power Saving technology. HUG-625GE-PSCDU complies with IEEE 802.3/802.3u/802.3x/802.3ab with 10/100/1000Mbps, full/half duplex and MDI/MDI-X auto-sensing RJ-45 ports. The compact switch is...
