![Industrial Conformal Coated Switch Solution - 1](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_1m.jpg)

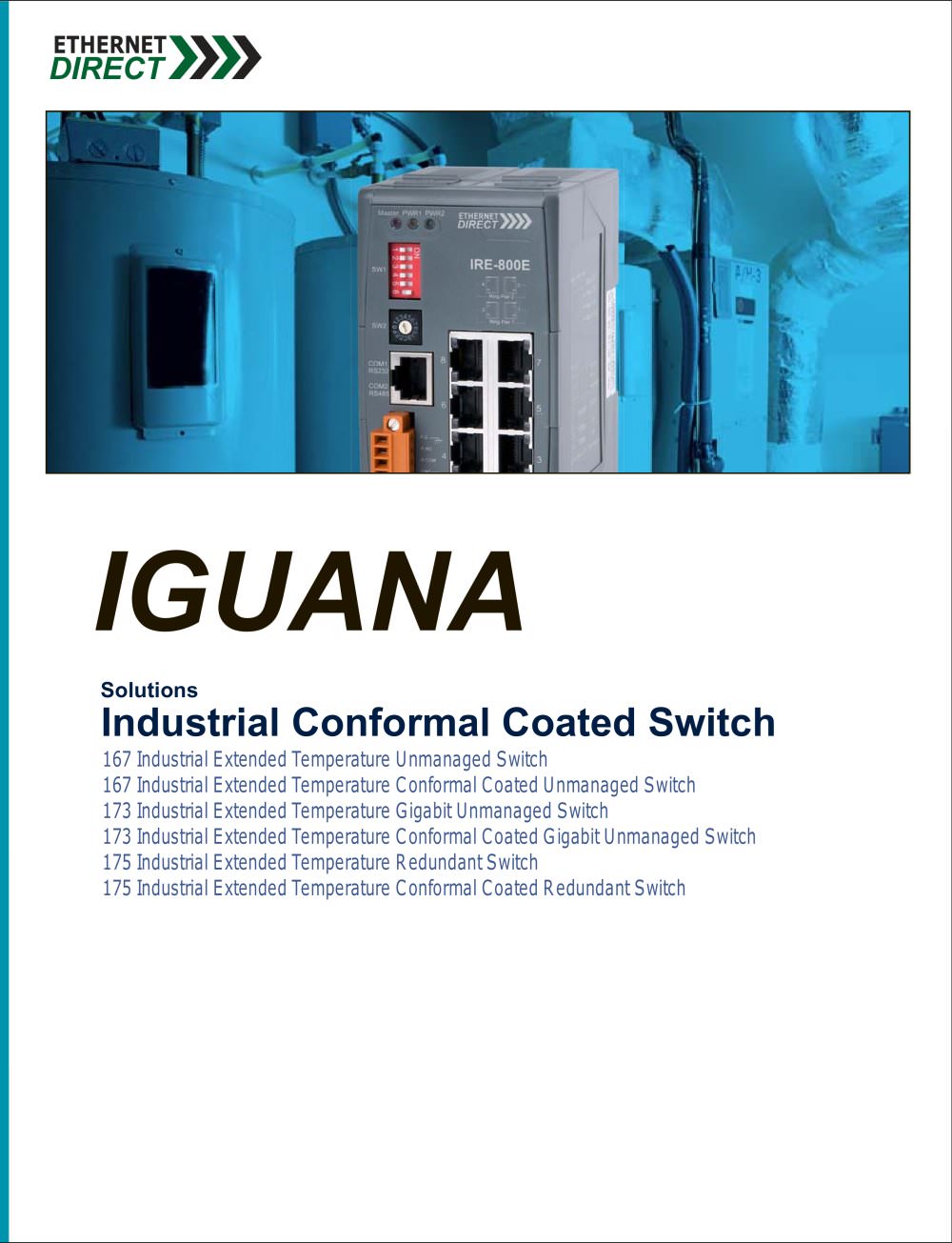

IGUANA Industrial Conformal Coated Switch 167 Industrial Extended Temperature Unmanaged Switch 167 Industrial Extended Temperature Conformal Coated Unmanaged Switch 173 Industrial Extended Temperature Gigabit Unmanaged Switch 173 Industrial Extended Temperature Conformal Coated Gigabit Unmanaged Switch 175 Industrial Extended Temperature Redundant Switch 175 Industrial Extended Temperature Conformal Coated Redundant Switch Solutions
Open the catalog to page 1![Industrial Conformal Coated Switch Solution - 2](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_2m.jpg)
ED I X X - X X Iguana U: Unmanaged R: Redundant E: 10/100TX Ethernet G: Gigabit Ethernet Number of TX Ports Number of Fiber Ports Type of Fiber Ports 0: None 1: MM, SC 2: MM, ST 3: SM, SC 4: SM, ST 5: 1000SX 6: 1000LX 7: GBIC 8: SFP 9: WDM Other Specifications E: Extended Temperature C: Conformal Coated X X Industrial Conformal Coated Switch Solutions Iguana Series Industrial Conformal Coated Switch Solutions Applications involving humid environments require conformal coated devices. Ethernet Direct Iguana Series provides industrial Ethernet switches with the conformal coating design....
Open the catalog to page 2![Industrial Conformal Coated Switch Solution - 4](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_4m.jpg)
ED Industrial Conformal Coated Switch Solutions Industrial Extended Temperature Conformal Coated Unmanaged Switch Selection Guide Number of Ports 10/100Base-T(X) Multi-mode 100Base-FX Single-mode 100Base-FX Multi-mode 1000Base-SX Single-mode 1000Base-LX SFP Module Combo Ports (1000TX or SFP module) Number of Digital I/O Power Input VDC Fault Relay Output Conformal Coating Protection Ethernet Isolation Power Isolation IP Protection Operating Temperature Regulatory Approvals CE/FCC IUE-500E(C) IUE-411E(C) Industrial Extended Temperature 5 x 10/100Base-T(X) Unmanaged Switch Industrial Extended...
Open the catalog to page 4![Industrial Conformal Coated Switch Solution - 5](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_5m.jpg)
ED 164 Industrial Extended Temperature Conformal Coated Unmanaged Switch Selection Guide Industrial Conformal Coated Switch Solutions Number of Ports 10/100Base-(TX) Multi-mode 100Base-FX Single-mode 100Base-FX Multi-mode 1000Base-SX Single-mode 1000Base-LX SFP Module Combo Ports (1000TX or SFP module) Number of Digital I/O Power Input VDC Fault Relay Output Conformal Coating Protection Ethernet Isolation Power Isolation IP Protection Operating Temperature Regulatory Approvals CE/FCC IUE-413E(C) IUE-423E(C) Industrial Extended Temperature 4 x 10/100Base-T(X) + 1 x 100FX Single-mode...
Open the catalog to page 5![Industrial Conformal Coated Switch Solution - 6](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_6m.jpg)
ED Industrial Conformal Coated Switch Solutions Number of Ports 10/100Base-(TX) Multi-mode 100Base-FX Single-mode 100Base-FX Multi-mode 1000Base-SX Single-mode 1000Base-LX SFP Module Combo Ports (1000TX or SFP module) Number of Digital I/O Power Input VDC Fault Relay Output Conformal Coating Protection Ethernet Isolation Power Isolation IP Protection Operating Temperature Regulatory Approvals CE/FCC IUG-500E(C) Industrial Extended Temperature 5 x 10/100/1000Base-T(X) Gigabit Unmanaged Switch Model 5 Hardware IP-20 -40 to 75°C 10/100/1000Base-T(X) 10-30VDC IUG-500EC 1500Vrms IUG-800E(C)...
Open the catalog to page 6![Industrial Conformal Coated Switch Solution - 7](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_7m.jpg)
ED 166 Industrial Conformal Coated Switch Solutions Number of Ports 10/100Base-(TX) Multi-mode 100Base-FX Single-mode 100Base-FX Multi-mode 1000Base-SX Single-mode 1000Base-LX SFP Module Combo Ports (1000TX or SFP module) Number of Digital I/O Power Input VDC Fault Relay Output Conformal Coating Protection Ethernet Isolation Power Isolation IP Protection Operating Temperature Redundant Solution Direct-Ring Redundancy IRE-500E(C) IRE-321E(C) Industrial Extended Temperature 5 x 10/100Base-T(X) Redundant Switch Industrial Extended Temperature 8 x 10/100Base-T(X) Redundant Switch Model 5 8 3 2...
Open the catalog to page 7![Industrial Conformal Coated Switch Solution - 8](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_8m.jpg)
ED IUE-500E(C) The Iguana Series IUE-500E and IUE-500EC are Industrial 5-port Extended Temperature Conformal Coated Unmanaged Ethernet Switches positioned as an enhanced version of entry-level switch. It supports IEEE 802.3/802.3u/802.3x with 10/100Base-T(X), full/half duplex and MDI/MDI-X auto-sensing RJ-45 ports. IUE-500E(C) is designed especially for mission-critical applications in harsh environments since it comes ready with conformal coating design and extended temperature of -40 to 75°C. The IUE-500E(C) is also embedded with rugged DIN-Rail mounting kit for easy installation in...
Open the catalog to page 8![Industrial Conformal Coated Switch Solution - 9](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_9m.jpg)
ED 168 Industrial Conformal Coated Switch Solutions IUE-800E(C) Features High Performance Network Switching Technology Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x Provides 8 x 10/100Base-T(X) with RJ-45 ports connector RJ-45 ports support auto MDI/MDI-X crossover Reliable Power Design Supports 10 to 30VDC power input with reverse polarity protection 1500Vrms for Ethernet Isolation Robust Industrial Design Hard plastic case (Flammability UL 94V-0) complies with IP-20 housing standard Supports wide operating temperature -40 to 75°C Conformal coating circuitry protection design DIN-Rail...
Open the catalog to page 9![Industrial Conformal Coated Switch Solution - 10](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_10m.jpg)
ED IUE-411E(C) The Iguana Series IUE-411E and IUE-411EC are Industrial 5-port Unmanaged Ethernet Switches with four 10/100Base-T(X) Ethernet ports and one multi-mode fiber port. With the optic port, IUE-411E(C) transmits data at high speed for long distances up to 2km with an SC connector. The flammability protected entry-level industrial hardened Ethernet switch is specifically designed for applications where transmission must be protected from electrical exposure, surges, lightning, chemical corrosion and in hazardous locations. The IUE-411E(C) comes ready with conformal coating and...
Open the catalog to page 10![Industrial Conformal Coated Switch Solution - 11](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_11m.jpg)
ED 170 Industrial Conformal Coated Switch Solutions IUE-413E(C) Features High Performance Network Switching Technology Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x Provides 4 x 10/100Base-T(X) with RJ-45 connector Provides 1 x single-mode 100FX fiber port RJ-45 ports support auto MDI/MDI-X crossover Reliable Power Design Supports 10 to 30VDC power input with reverse polarity protection 1500Vrms for Ethernet Isolation Robust Industrial Design Hard plastic case (Flammability UL 94V-0) complies with IP-20 housing standard Supports wide operating temperature 0 to 70°C Conformal coating...
Open the catalog to page 11![Industrial Conformal Coated Switch Solution - 12](https://img.directindustry.com/pdf/repository_di/39231/industrial-conformal-coated-switch-solution-134857_12m.jpg)
ED IUE-421E(C) Features The Iguana Series IUE-421E and IUE-421EC are Industrial 6-port Unmanaged Ethernet Switches with four 10/100Base-T(X) Ethernet ports and two multi-mode fiber port. With the optic port, IUE-421E(C) transmits data at high speed for long distances up to 2km with an SC connector. The flammability protected entry-level industrial hardened Ethernet switch is specifically designed for applications where transmission must be protected from electrical exposure, surges, lightning, chemical corrosion and in hazardous locations. The IUE-421E(C) comes ready with conformal coating...
