![Industrial CAN Bus Solutions - 1](https://img.directindustry.com/pdf/repository_di/39231/industrial-can-bus-solutions-134907_1m.jpg)

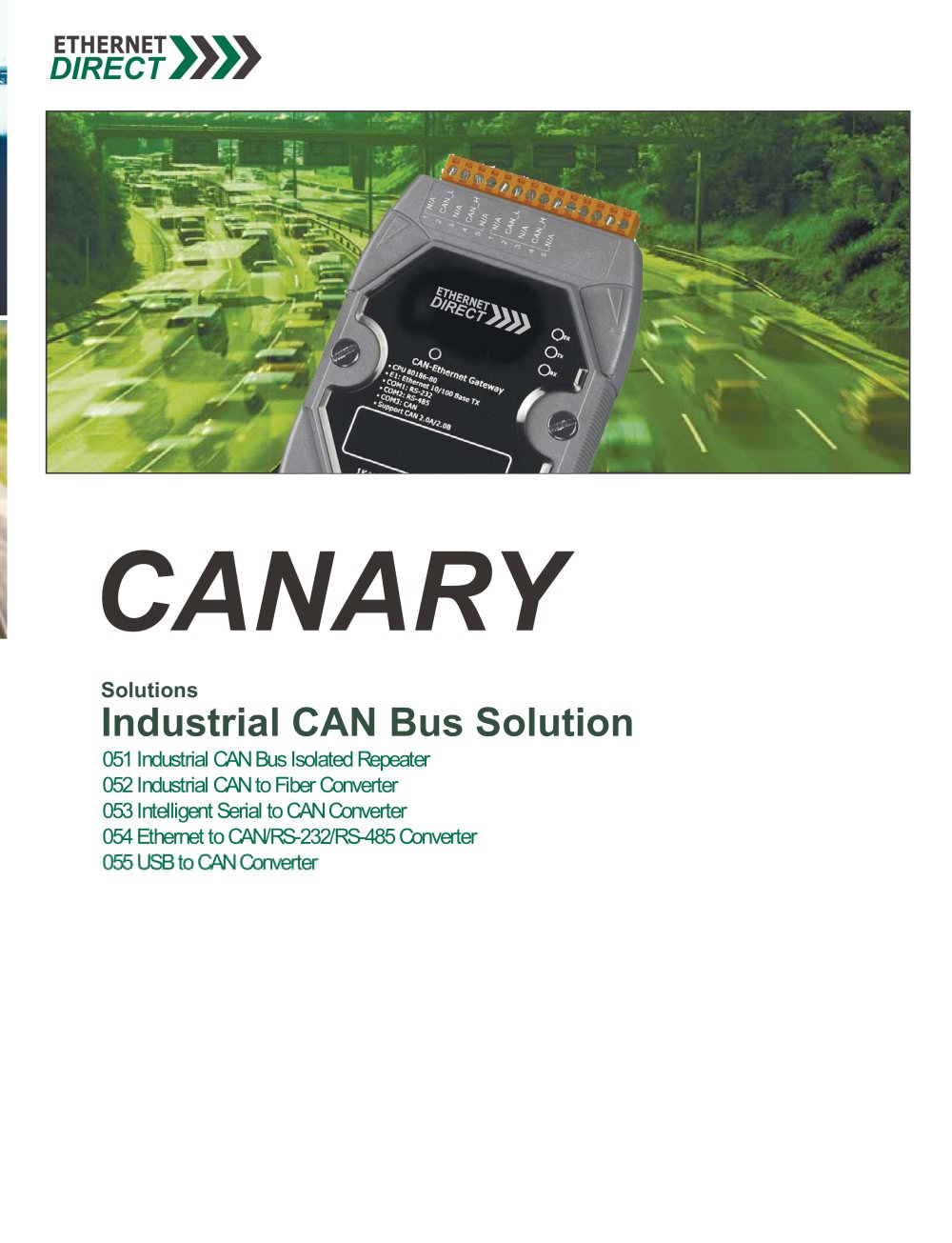

CANARY Solutions Industrial CAN Bus Solution 051 Industrial CAN Bus Isolated Repeater 052 Industrial CAN to Fiber Converter 053 Intelligent Serial to CAN Converter 054 Ethernet to CAN/RS-232/RS-485 Converter 055 USB to CAN Converter
Open the catalog to page 1![Industrial CAN Bus Solutions - 2](https://img.directindustry.com/pdf/repository_di/39231/industrial-can-bus-solutions-134907_2m.jpg)
Canary Series Industrial CAN Bus Solutions Controller-area network (CAN bus) is a serial communication way, which efficiently supports distributed real-time control with a very high level of security. It provides the error process mechanisms and message priority concepts. These features can improve the network reliability and transmission efficiency. Furthermore, CAN supplies the multi-master capabilities, and is especially suited for networking “intelligent” devices as well as sensors and actuators within a system or sub-system. Ethernet Direct offers Canary Series Industrial CAN Bus...
Open the catalog to page 2![Industrial CAN Bus Solutions - 3](https://img.directindustry.com/pdf/repository_di/39231/industrial-can-bus-solutions-134907_3m.jpg)
Industrial CAN Bus Device Selection Guide Industrial CAN Isolated Repeater Industrial CAN to Fiber Converter Industrial CAN to Serial Converter Industrial CAN to Ethernet Gateway Number of Ports CAN Port 10/100Base-T(X) Power Consumption CAN Channel Isolation Protection Terminator Resistor Power Input Operating Temperature Regulatory Approvals CE/FCC
Open the catalog to page 3![Industrial CAN Bus Solutions - 4](https://img.directindustry.com/pdf/repository_di/39231/industrial-can-bus-solutions-134907_4m.jpg)
Industrial CAN Isolated Repeater Features Compatible with CAN specification 2.0A/2.0B Fully compatible with the ISO 11898-2 standard 880kbps max communication baud 2500Vrms photo-couple isolation on the CAN side 3KV galvanic isolation among the power supply and 2 CAN ports Jumper for 120 Ω terminator resistor of CAN bus Two CAN channels Automatic baud rate detection up to 100 nodes on each CAN port The Canary CUC-531 is a CAN isolated repeater especially designed to establish a physical coupling of two or more segments in a CAN bus system. With CUC-531, users can implement tree or star...
Open the catalog to page 4![Industrial CAN Bus Solutions - 5](https://img.directindustry.com/pdf/repository_di/39231/industrial-can-bus-solutions-134907_5m.jpg)
Industrial CAN to Fiber Converter Features Compatible with CAN specification 2.0A/2.0B Fully compatible with the ISO 11898-2 standard Supports baud rate up to 500Kbps Jumper for 120Ω terminator resistor of CAN bus Multi-mode fiber port with ST connector 850 nm wave Length Automatic baud rate detection Up to 100 nodes on CAN port Hardware Specifications Interface Fiber Ports: 1 x multi-mode 100FX , ST connector CAN Ports: 1 x 8-pin removable screw terminal LEDs: Power, Transmit, Receive CAN Specifications Baud Rate: 10K to 500Kbps Terminator Resistor: Selectable 120Ω terminator resistor by...
Open the catalog to page 5![Industrial CAN Bus Solutions - 6](https://img.directindustry.com/pdf/repository_di/39231/industrial-can-bus-solutions-134907_6m.jpg)
Industrial CAN to Serial Converter Features Compatible with CAN specification 2.0A/2.0B Fully compatible with ISO 11898-2 standard Supports Web configuration Baud rates range from 10kbps to 1Mbps Jumper for 120Ω terminator resistor Software configurable CAN and RS-232/422/485 communication parameters 1000 frames in CAN received buffer 900 frames in RS-232/422/485 received buffer Watchdog supported Transparent communication between the RS-232/422/485 devices via CAN bus Enable different RS-232/422/485 devices into an individual group in CAN bus networks (Full-duplex communication mode of...
Open the catalog to page 6![Industrial CAN Bus Solutions - 7](https://img.directindustry.com/pdf/repository_di/39231/industrial-can-bus-solutions-134907_7m.jpg)
Industrial CAN to Ethernet Gateway Features Compatible with CAN specification 2.0A/2.0B 10/100Base-T(X) Ethernet controller Supports Web configuration Message transmitted using TCP/IP protocol COM driver supports interrupt and 1K QUEUE input & output buffer One RS-232 port, one RS-485 port and one CAN port can be used simultaneously 2500Vrms photo-isolation protection on CAN side Jumper for 120Ω terminator resistor for CAN channel Max transmission speed up to 1Mbps for CAN and 115.2Kbps for RS-232/485 Software configuration for CAN and RS-232 communication parameters Provides max 25...
Open the catalog to page 7![Industrial CAN Bus Solutions - 8](https://img.directindustry.com/pdf/repository_di/39231/industrial-can-bus-solutions-134907_8m.jpg)
Industrial CAN to USB Converter Features Microprocessor inside with 20MHz Fully compliant with USB 1.1/2.0 (Full Speed) Fully compatible with the ISO 11898-2 standard Powered by the USB bus 82C250 CAN transceiver Transmission speed up to 1Mbps for CAN and 921.6kbps for USB Compatible with CAN specification 2.0A/2.0B Built-in jumper to select 120 ohm terminal resister Watchdog supported Supports Windows 98/ME/2000/XP/Linux OS CAN bus baud rate and CAN acceptance filter with utility configuration Serial COM baud rate and data bit setting Serial COM command error response selection Utility...
